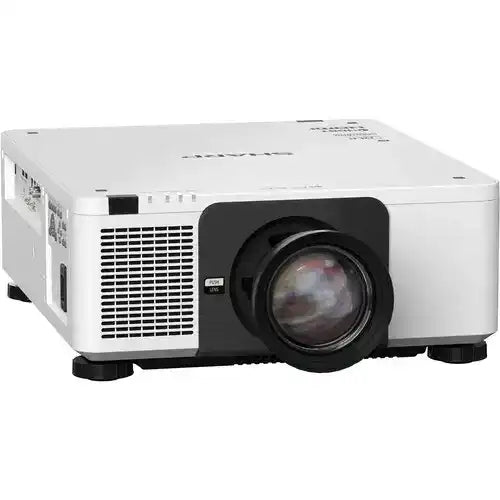

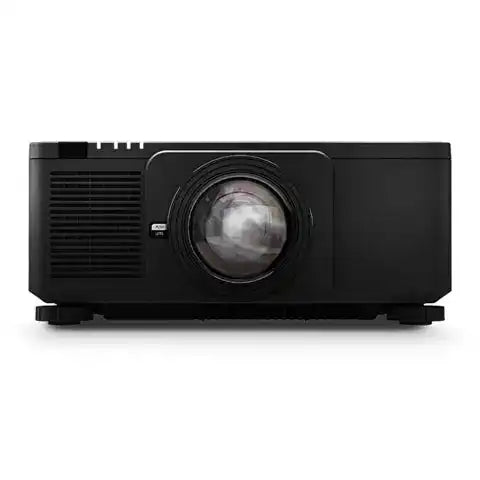

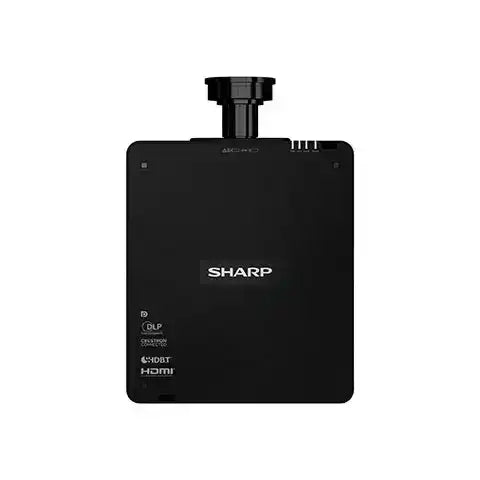

Sharp XP-X141Q 13,500-Lumen UHD 4K Laser DLP Projector (No Lens)

Regular price $48,826.00 Sale price $37,489.00
Shipping calculated at checkout.
Sharp  |  SKU: XP-X141Q-B
Color: Black

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Sharp's X141Q is a 13,500-lumen (Center: 13,900lm) 1-Chip DLP RB laser projector with a 4K UHD (3840x2400) screen resolution. With advanced professional installation features for corporate, higher education and museum users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet power and various control signals. Furthermore, the laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership!
Features
  • 4K UHD (3840 x 2400) screen resolution for unsurpassed image detail for demanding graphics design and CAD/CAM applications
  • High-brightness(13,500 lumens), lower power consumption enhance always-on capabilities of laser projection
  • Ideal for new applications such as digital signage
  • Lamp-less operation reduces TCO
  • Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for demanding integration applications such as higher education and corporate
  • Seamlessly blend multiple images with integrated edge blending capabilities
  • Built-in HDBaseT enabels simplified installations with a single cable for video, audio, and control signals
  • ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.

Specs

Display

Aspect Ratio 16X10 Screen Resolution WUXGA 1920x1200
Maximum Resolution 4K 3840 x 2400 Brightness (typical) 13500 Lumens
Brightness (maximum) 13900 Center Lumens Contrast Ratio (typical) 3,000,000:1 (with Dynamic Contrast)
Color Processing 10-bit color processing (approx. 1.07 billion colors)

Synchronization Range

Horizontal (Analog/Digital) 15kHz, 24-153kHz Vertical 24, 25, 30, 48 Hz, 50 to 85 Hz, 100, 120 Hz

Signal Compatibility/Connectivity

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, Quad HD Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G External Control RS-232, IR, Wired Remote, HDBaseT, DDC/CI, RJ-45, USB (USB 2.0)

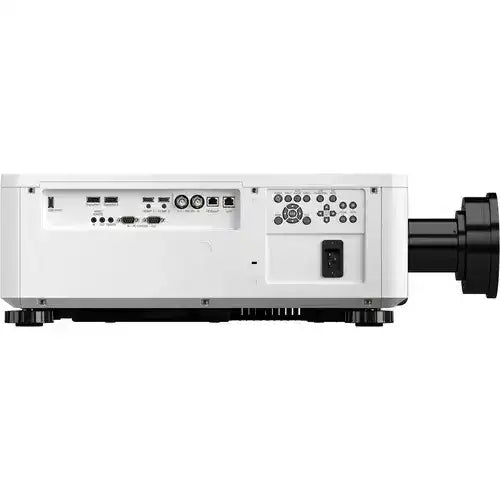

Input Terminals
RGB1(digital):
HDMI (V2.0) w/HDCP (V2.2/1.4)
RGB2(digital):
HDMI (V2.0) w/HDCP (V2.2/1.4)
RGB3(digital):
DP w/HDCP (V1.3)
RGB4(digital):
DP w/HDCP (V1.3)
RGB5(digital):
HDBaseT w/HDCP (V2.2/1.4)
RGB6(digital):
12G SDI
Output Terminals
Digital:
12G SDI

Power Consumption (typical)

On 1080W / 980W / 1.9W / 0.4W Input Current 10.0A - 5.0A
Power Requirements 100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)
Product:
19.7 x 8.5 x 23 in. / 500 x 216 x 583 mm
External:
19.7 x 23.0 x 8.5 in. / 500 x 583 x 216 mm
Shipping:
30.9 x 17.5 x 27.5 in. / 784 x 445 x 699 mm
Weight
Net Weight:
64.8 lbs. / 29.4 kg
Shipping:
88.2 lbs. / 40 kg

Environmental Conditions

Operating Temperature 32-113°F / 0-45°C Operating Humidity 20 to 85% Humidity (Non-Condensing)
Operating Altitude 0 to 3000 m (9,842 ft) Storage Temperature 14-140°F / -10-60°C
Storage Humidity 20% - 80% (non-condensing) Storage Altitude 0-12,000m / 0-39,370ft (above sea level)

Limited Warranty (parts & labor)

Registered owners receive a five (5) years or 20,000 hours (whichever comes first) limited warranty including InstaCare next business day exchange.

Additional Features

  • 4K UHD
  • Motorized Lenses
  • Manual Keystone Correction
  • Quick power on
  • ECO Mode Technology
  • DiCom Simulation
  • NaViSet Administrator 2
  • Quick power-off
  • Advanced AccuBlend
  • AutoSense
  • ProAssist Software


Optical

Display Technology 0.8" DLP HEP DMD Light Output(Lumens) 13,500 Lumens
Throw Ratio 0.31 to 0.33:1 Motorized Zoom Lens
0.55 to 0.75:1 Motorized Zoom Lens
0.74 to 1.08:1 Motorized Zoom Lens
1.05 to 1.41:1 Motorized Zoom Lens
1.40 to 2.11:1 Motorized Zoom Lens
2.10 to 4.00:1 Motorized Zoom Lens
Projection Distance 3.58 to 141 ft. / 1.09 to 43m
Projector Angle 5.8 to 18.1° tele / 11.4 to 25.8° wide Lens
Zoom:
Motorized
Focus:
Motorized
F number, fnumber:
  • XP-57UL F=2.05 to 2.11, f= 5.81 - 6.17mm, TBD
  • XP-58ZL F=2.04 to 2.35, f= 10.03 - 13.60mm, TBD
  • XP-59ZL F=2.02 to 2.33, f= 13.47 - 16.67mm, 6.8 lbs. / 3.06 kg
  • XP-60ZL F=1.90 to 2.09, f= 18.78 - 25.30mm, 6.4 lbs. / 2.91 kg
  • XP-61ZL F=1.80 to 2.11, f= 25.04 - 37.57mm, 4.9 lbs. / 2.23 kg
  • XP-62ZL F=1.90 to 2.44, f= 37.23
Keystone Correction +/- 36° horizontal, +/- 36° vertical

Mechanical

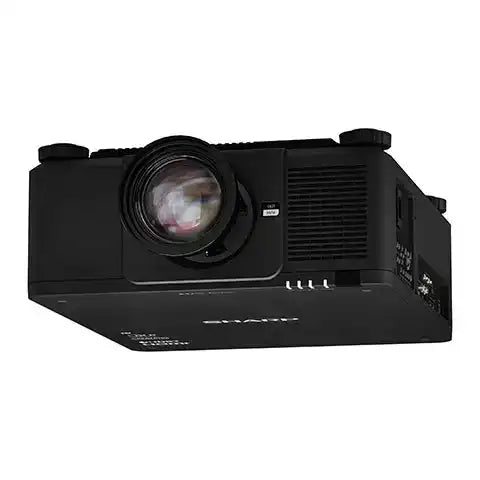

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear Fan Noise 37 dB normal / 35 dB slient mode
Regulations UL 62368-1, 3rd Edition, FDA Laser Notice No.57, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.62368-1-19, 3rd Edition, ICES-003 Issue 7(ANSI C63.4-2014) Optional Lenses Motorized Zoom Lens 0.31-0.33 (XP-57UL), Motorized Zoom Lens 0.55-0.75 (XP-58ZL), Motorized Zoom Lens 0.74-1.08 (XP-59ZL), Motorized Zoom Lens 1.05-1.41 (XP-60ZL), Motorized Zoom Lens 1.40-2.11 (XP-61ZL), Motorized Zoom Lens 2.10-4.00 (XP-62ZL)

Accessories

Included
  • Remote Control (RMT-PJ40)
  • Batteries
  • Quick Guide
  • Important Info
  • Lens Cap
  • Security Sticker
  • Lens Anti-Theft Screw
  • Stacking Holder
Optional
  • Adjustable Extension Column, 2' - 3' (AEC0203)
  • Adjustable Extension Column, 3' - 5' (AEC0305)
  • Adjustable Extension Column, 12" - 18" (AEC012018)
  • Adjustable Extension Column, 6" - 9" (AEC006009)
  • Replacement Remote (RMT-PJ40)
  • Ceiling Mount (IPJ2000CM)
  • Motorized Zoom Lens 0.31-0.33 (XP-57UL)
  • Motorized Zoom Lens 0.55-0.75 (XP-58ZL)
  • Motorized Zoom Lens 0.74-1.08 (XP-59ZL)
  • Motorized Zoom Lens 1.05-1.41 (XP-60ZL)
  • Motorized Zoom Lens 1.40-2.11 (XP-61ZL)
  • Motorized Zoom Lens 2.10-4.00 (XP-62ZL)
  • Option Cover (NP13CV-B)
