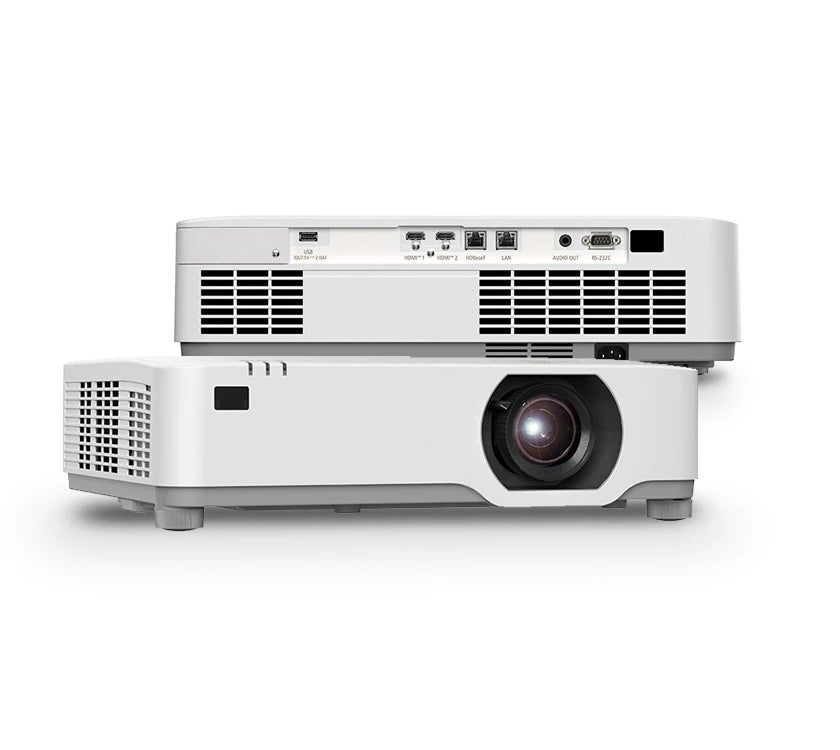

Sharp XP-P701U-W – 7000-Lumen WUXGA Laser Projector

Product Overview

The Sharp XP-P701U-W is a 7000-lumen laser projector built for large rooms, lecture halls, and worship spaces where high brightness and low maintenance both matter. It pairs WUXGA (1920 × 1200) resolution with a maintenance-free blue-laser-phosphor light source and Sharp's IP5x sealed, filter-free cooling system. With manual 1.6x zoom, horizontal and vertical lens shift, and a built-in HDBaseT input, this WUXGA installation projector adapts to a wide range of throw distances and signal-routing requirements. It is a strong fit for higher education, corporate, and house-of-worship deployments.

Product Description

The XP-P701U-W belongs to Sharp's Entry Installation P Series and is engineered for set-and-forget operation. Its blue-laser-phosphor light source is rated for 20,000 hours to 50% brightness, and the IP5x sealed optical path removes the need for filter cleaning, lowering total cost of ownership in fixed installs. The 3LCD optical engine delivers color-accurate images at 7,000 lumens (7,400 center lumens) with a 3,000,000:1 dynamic contrast ratio. A 1.6x manual zoom lens with horizontal (±20%) and vertical (+44%) lens shift gives integrators flexibility to position the projector off-center and still align the image, across a 1.08–1.76:1 throw ratio and screen sizes from 30 to 300 inches. Connectivity covers two HDMI 1.4 inputs plus an HDBaseT input that carries video, audio, and control over a single cable, alongside RS-232, LAN, and IR for system integration. The projector accepts up to 4K UHD 30Hz signals through its high-performance scaling chip and supports 21:9 content for wide meeting and lecture displays. Geometric correction, auto and manual keystone, and four installation orientations support ceiling and rear-projection setups. Management is handled through NaViSet Administrator 2, with Crestron, AMX, and PJLink support for control-system integration. A five-year warranty backs the deployment. For other projector options, browse the Sharp collection at Creation Networks.

Key Features

• 7,000-Lumen Laser Brightness — Delivers 7,000 lumens (7,400 center) for bright rooms, lecture halls, and worship spaces.
• WUXGA 3LCD Resolution — Native 1920 × 1200 with color-accurate 3LCD imaging and a 3,000,000:1 dynamic contrast ratio.
• Filter-Free IP5x Cooling — The sealed optical path removes filter maintenance and protects the engine from dust.
• Maintenance-Free Laser Light Source — Blue laser phosphor rated for 20,000 hours to 50% brightness.
• Lens Shift and 1.6x Zoom — Manual 1.6x zoom with horizontal (±20%) and vertical (+44%) shift for flexible placement.
• HDBaseT and Dual HDMI — Two HDMI 1.4 inputs plus HDBaseT for single-cable video, audio, and control over distance.
• 4K UHD Input and 21:9 Support — Accepts up to 4K UHD 30Hz signals and supports 21:9 ultra-wide content.
• Control-System Integration — NaViSet Administrator 2, Crestron, AMX, and PJLink support for centralized management.
• Five-Year Warranty — Backed by Sharp's commercial projector warranty.

Typical Applications

• Auditorium — High brightness and lens shift suit large rooms with varied throw distances.
• House of worship — Quiet, filter-free operation for long worship services.
• Training room — WUXGA detail for data, video, and instructional content.
• Large conference room — HDBaseT routing and 21:9 support for wide presentation surfaces.
• Multi-purpose room — Flexible orientations and zoom for changing room setups.
• All-hands room — Bright, color-accurate image for large audiences.

Technical Specifications

Frequently Asked Questions

Does the XP-P701U-W require filter maintenance?
No. The IP5x sealed cooling system is filter-free, and the laser light source is maintenance-free, so there are no lamps or filters to service.

Can it be installed off-center or on a ceiling?
Yes. It offers manual 1.6x zoom with horizontal (±20%) and vertical (+44%) lens shift, ±30° keystone correction, and four orientations including ceiling and rear projection.

How does it integrate into an AV system?
It provides two HDMI 1.4 inputs and an HDBaseT input for single-cable video, audio, and control, plus RS-232, LAN, and IR. It supports NaViSet Administrator 2, Crestron, AMX, and PJLink.

What resolution and content does it support?
Native WUXGA (1920 × 1200) with input support up to 4K UHD at 30Hz and 21:9 aspect ratio for wide presentation surfaces.

How long is the laser light source rated to last?
The blue-laser-phosphor light source is rated for 20,000 hours until 50% brightness.

What warranty is included?
The XP-P701U-W carries a five-year commercial warranty. Support is available through Sharp's commercial channels and Creation Networks.
