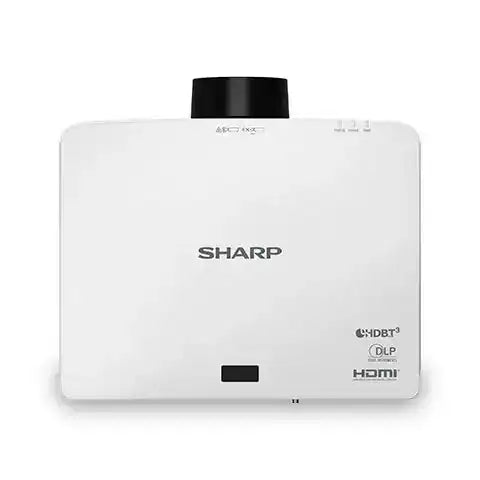

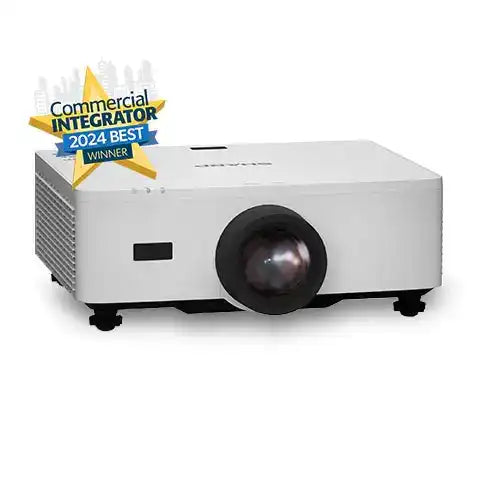

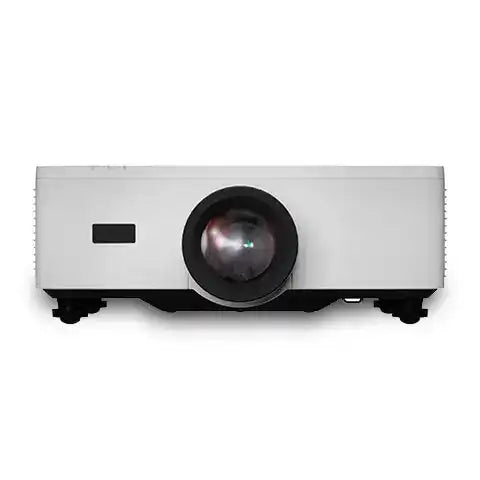

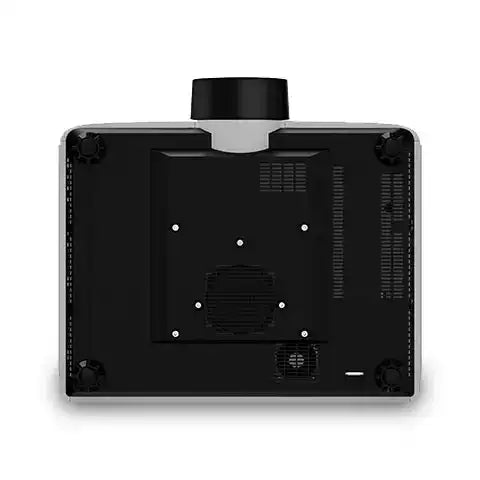

Sharp XP-P601Q-W – 6,000-Lumen 4K Laser DLP Projector

Product Overview

The Sharp XP-P601Q-W is a 6,000-lumen 4K UHD (3840x2160) laser DLP installation projector in the Entry Installation Series, designed for corporate conference rooms, higher education classrooms, and commercial meeting spaces requiring reliable, maintenance-free projection. The laser/phosphor light source delivers 20,000 hours of operation without lamp replacement, while the motorized zoom, focus, and lens shift provide flexible placement options during installation. HDBaseT input supports single-cable AV distribution, and native 21:9 aspect ratio support accommodates ultrawide display formats in modern collaboration environments.

Product Description

Sharing its chassis and feature set with the XP-P721Q-W, the XP-P601Q-W offers equivalent functionality at a reduced brightness level of 6,000 lumens, positioning it for rooms with moderate ambient light where the higher output of the P721Q is not needed. The 0.65-inch DLP DMD with XPR pixel-shifting produces 4K UHD output from a single compact chip, while the 3,000,000:1 dynamic contrast ratio maintains image quality across varied lighting conditions.

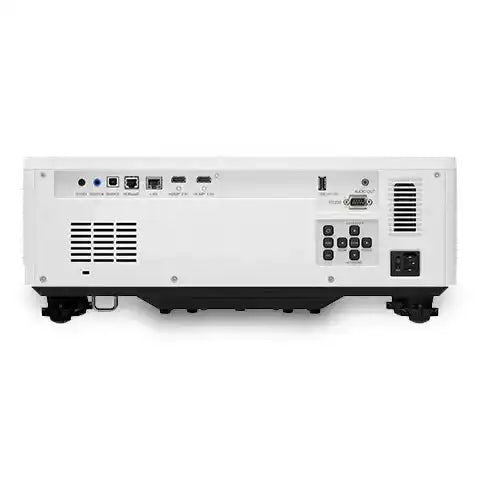

The 1.6x motorized zoom lens with built-in motorized focus and motorized lens shift covers throw ratios of 1.25-2.0:1, supporting screen sizes from 60 to 300 inches at projection distances of 5.2 to 42.3 feet. Dual HDMI (HDCP 2.2/1.4) and HDBaseT inputs cover standard AV source types, and RS-232 plus LAN control interfaces ensure compatibility with Crestron, AMX, and PJLink-based control systems. The filter-free DLP design and laser light source combine to eliminate the two most common projector maintenance tasks.

The 5-year / 20,000-hour warranty with InstaCare next-business-day exchange makes the XP-P601Q-W appropriate for managed IT environments where rapid replacement is required to minimize display downtime. ECO mode reduces power draw from 530W to 285W, supporting sustainability commitments in institutional deployments.

Key Features

• 6,000-Lumen Laser/Phosphor Light Source — 20,000-hour rated lifespan eliminates lamp costs and scheduled maintenance for up to 10 years in standard commercial use.
• 4K UHD via XPR Pixel-Shifting — 0.65-inch DLP DMD with pixel-shifting delivers full 4K UHD resolution (3840x2160) in a compact form factor.
• Motorized Zoom, Focus, and Lens Shift — Broad adjustment range without physically moving the projector, saving installation time and improving precision.
• HDBaseT Built-In — Single-cable transmission of uncompressed 4K video, audio, and control signals up to 100 meters.
• 21:9 Aspect Ratio Support — Native support for ultrawide content in contemporary corporate and collaboration space installations.
• 3,000,000:1 Dynamic Contrast — Clear, high-contrast images in rooms with mixed ambient lighting.
• Filter-Free DLP — No filter cleaning or replacement in the maintenance schedule.
• Crestron, AMX, PJLink Compatible — Standard commercial control system integration out of the box.
• NaviSet Administrator 2 — Centralized network monitoring and control for multi-projector deployments.
• 5-Year / 20,000-Hour Warranty with InstaCare NBD Exchange — Next-business-day exchange for registered owners protects deployment uptime.
• Screen Size Range 60-300 Inches — Covers room sizes from small conference rooms to mid-size auditorium screens.

Typical Applications

• Corporate conference room and boardroom
• Higher education classroom
• Commercial meeting space and training room
• Multi-purpose room with moderate ambient light
• House of worship auxiliary screen

Technical Specifications

Frequently Asked Questions

What is the difference between the XP-P601Q-W and the XP-P721Q-W?
The XP-P601Q-W produces 6,000 lumens compared to 7,200 lumens on the XP-P721Q-W. Both share the same chassis, lens, connectivity, and warranty. The XP-P601Q-W is the appropriate choice when a room's controlled lighting allows a lower brightness level, reducing upfront cost while maintaining equivalent feature capability.

Does this projector support 4K?
Yes. The XP-P601Q-W accepts 4K UHD signals (3840x2160) via HDMI and HDBaseT, and uses XPR pixel-shifting to display them at full 4K UHD resolution.

Is a lens included?
Yes. The projector includes a built-in 1.6x motorized zoom lens (1.25-2.0:1 throw ratio) with motorized focus and lens shift.

What control protocols are supported?
Crestron, AMX, and PJLink are supported via LAN and RS-232. NaviSet Administrator 2 enables centralized multi-projector management over the network.

What warranty does this projector carry?
Registered owners receive a 5-year / 20,000-hour limited warranty with InstaCare next-business-day exchange service.

Where can I purchase the XP-P601Q-W?
Available at Creation Networks, an authorized Sharp commercial AV reseller.
