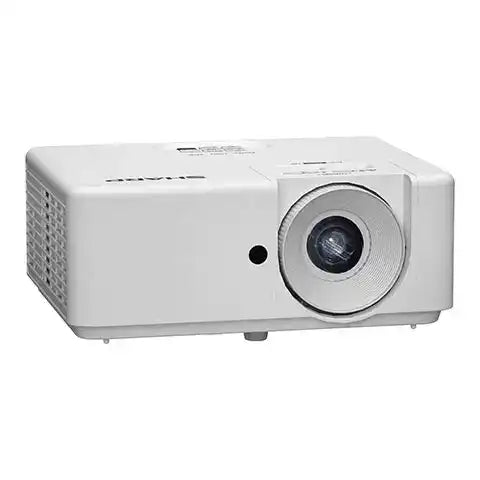

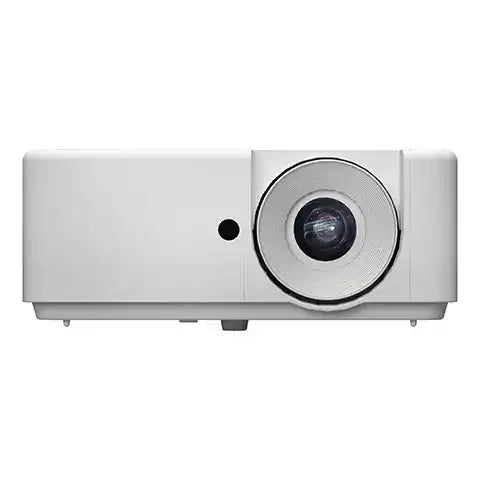

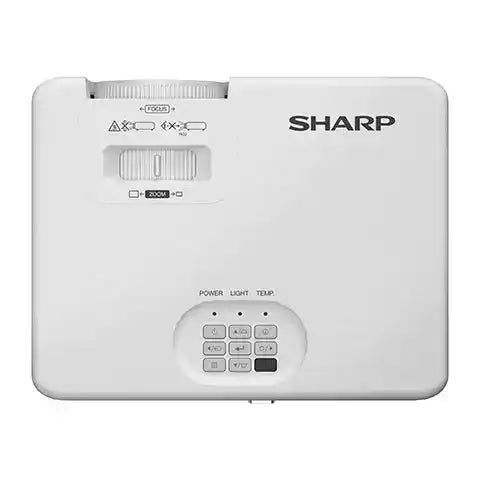

Sharp XP-M401H-W – 4,000-Lumen Full HD Laser DLP Projector

Product Overview

The Sharp XP-M401H-W is a compact 4,000-lumen Full HD (1920x1080) laser DLP projector from the M Series, targeting K-12 classrooms and small meeting spaces that need a true 1080p image at an entry-level commercial price point. The laser/phosphor light source provides up to 20,000 hours of maintenance-free operation, and the filter-free DLP design eliminates consumable replacement costs over the deployment lifecycle. With dual HDMI inputs (including HDMI 2.0 with HDCP 2.2), RS-232 control, and a form factor weighing 6.6 lbs, the XP-M401H-W is well suited to large-scale campus deployments where standardization and low IT overhead are priorities.

Product Description

The XP-M401H-W shares its chassis with the XP-M421W-W but features a native Full HD (1920x1080) resolution panel instead of WXGA, making it the correct choice where 1080p source content from Blu-ray, streaming media, or HD cameras needs to be displayed without downscaling. The 50,000:1 contrast ratio and 4,000-lumen output maintain image visibility in classrooms with moderate ambient light. The 1.3x manual zoom lens with a 1.16-1.47:1 throw ratio covers standard classroom projection distances of 4.3 to 9.8 feet to a 100-inch screen.

Direct power-on (via power switch) and quick power-off eliminate the warm-up and cool-down cycles found on lamp-based projectors, supporting tight classroom schedule management. ECO mode reduces consumption to 150W for energy management. Auto vertical keystone correction (+/-30 degrees) handles minor projector tilt automatically. The 5-year warranty with InstaCare next-business-day exchange provides IT departments with predictable service response for fleet deployments.

Key Features

• 4,000-Lumen Laser/Phosphor Light Source — 20,000-hour rated lifespan with no lamp replacements, reducing total cost of ownership for long-term classroom deployments.
• Full HD 1080p Resolution (1920x1080) — Native 16:9 panel displays 1080p content from computers, media players, and video sources without downscaling.

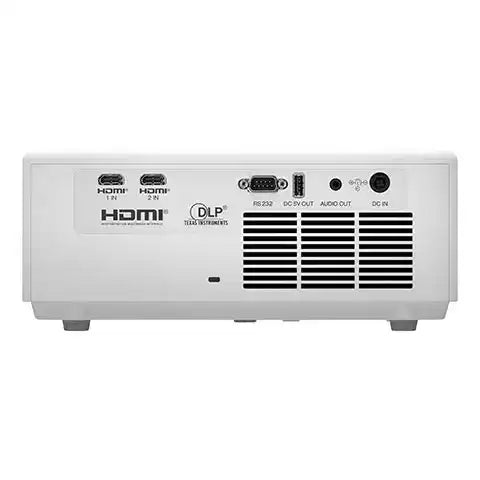

• Dual HDMI (1.4b and 2.0) — Two HDMI inputs with HDCP 1.4 and HDCP 2.2 support connect to a wide range of consumer and commercial sources.
• Filter-Free DLP Design — No filter cleaning or replacement, reducing ongoing maintenance requirements for IT departments managing large deployments.
• Direct Power On / Quick Power Off — Instant startup and shutdown without cooling periods, compatible with classroom scheduling and bell schedules.
• Auto Vertical Keystone Correction — Automatic +/-30 degree vertical correction handles moderate projector tilt at ceiling-mount installations.

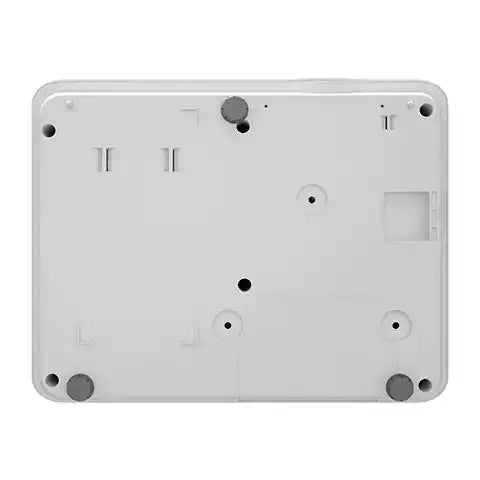

• Compact Form Factor — 10.9 x 4.5 x 8.5 in and 6.6 lbs simplifies ceiling mounting across classrooms with standard ceiling structures.
• ECO Mode — Reduces power draw to 150W in standard classroom lighting, supporting district energy reduction commitments.
• 5-Year Warranty with InstaCare NBD Exchange — Registered owners receive next-business-day replacement units, minimizing classroom downtime.
• HDMI Cable Included — Ships with remote control, power cord with AC adapter, and HDMI cable for immediate deployment.

Typical Applications

• K-12 classroom front projection
• Small conference room and meeting space
• Training room with 1080p source content
• Multi-purpose room with controlled lighting

Technical Specifications

Frequently Asked Questions

What is the difference between the XP-M401H-W and the XP-M421W-W?
The XP-M401H-W has a native Full HD (1920x1080) 16:9 resolution, while the XP-M421W-W has WXGA (1280x800) 16:10 resolution. Both have similar brightness and identical warranty. Choose the M401H-W when 1080p source content or 16:9 aspect ratio is the primary display requirement.

Does this projector need a filter change?
No. The DLP optical engine is completely filter-free, and combined with the laser light source, there are no consumables requiring replacement during normal operation.

Can I install this projector on a ceiling?
Yes. The optional NP01UCM universal ceiling mount supports ceiling-front and ceiling-rear installation orientations. The auto vertical keystone correction handles minor mounting angle adjustments.

What HDMI version is supported?
The XP-M401H-W includes two HDMI inputs: one HDMI 1.4b (HDCP 1.4) and one HDMI 2.0 (HDCP 2.2), supporting both HD and 4K input sources.

What warranty does this projector carry?
Registered owners receive a 5-year parts and labor warranty including InstaCare next-business-day exchange service.

Where can I purchase the XP-M401H-W?
Available at Creation Networks, an authorized Sharp commercial AV reseller serving K-12, corporate, and government markets.
