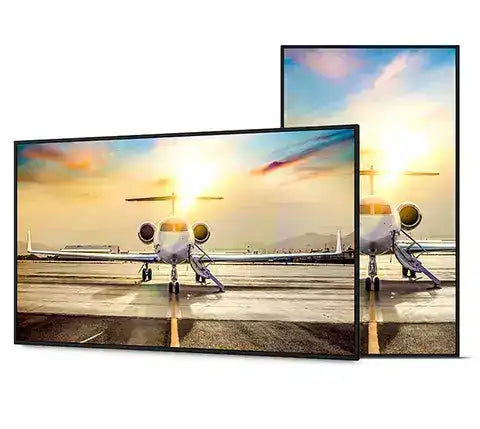

Sharp PN-P556 – 55" 4K UHD Professional Display 24/7 USB-C
Product Overview
The Sharp PN-P556 is a 55-inch 4K UHD professional display engineered for commercial digital signage, corporate presentations, and high-availability information display applications requiring 24/7 operation, USB-C connectivity, and precise color management. With 700 cd/m2 brightness, a high-haze IPS panel, SpectraView Engine hardware color calibration, integrated USB-C with 65W Power Delivery, and a 5-year warranty, the PN-P556 is a premium 55-inch option for demanding commercial AV environments.
Product Description
The PN-P556 delivers 3840x2160 UHD on a 55-inch IPS edge-lit panel at 700 cd/m2 brightness with 1200:1 contrast ratio (local dimming capable) and 178-degree viewing angles. The high-haze surface reduces ambient light reflections in bright commercial environments. SpectraView Engine provides hardware-level color calibration supporting gamma adjustment from 0.5 to 4.0, color temperature range from 3000K to 15000K, and HDR modes including HLG and ST2084 PQ, sRGB, Rec.1886, and DICOM. The integrated USB-C input supports DisplayPort Alt Mode at 4K, 65W Power Delivery, and USB hub functionality for streamlined single-cable laptop and compute device connections. Two HDMI 2.0 and two DisplayPort 1.4 inputs with loopout support daisy-chain signal distribution. LAN daisy-chain passes RS-232C, TCP-IP, and IR control to multiple displays over a single cable. Failover input switching monitors primary sources and automatically transfers to backup. The display supports portrait and landscape operation and includes an open Intel SDM slot for optional compute modules. Thermal protection, internal temperature sensors, and fan-based cooling support 24/7 continuous operation.
Key Features
- 700 cd/m2 High-Brightness IPS Panel — High-haze 55-inch panel for clear imaging in bright commercial environments with 1200:1 contrast ratio.
- USB-C with 65W Power Delivery — Single-cable laptop connection with video input (DP Alt Mode), USB hub, and 65W device charging.
- SpectraView Engine — Hardware color calibration with gamma, color space, and HDR mode support including DICOM for color-critical applications.
- 24/7 Operation — Fan-based thermal management and internal temperature sensors for continuous commercial operation.
- LAN Daisy Chain — Passes RS-232C, TCP-IP, and IR to multiple displays over single LAN cable for simplified control wiring.
- Failover Input Detect — Automatically switches to secondary or tertiary source if primary signal fails.
- Enhanced Daisy Chain — HDMI 2.0 and DisplayPort 1.4 loopout for multi-display signal distribution.
- Intel SDM Expansion Slot — Accepts optional SDM compute modules for integrated all-in-one signage.
- Portrait and Landscape Operation — Flexible installation orientation.
- 5-Year Commercial Warranty — Advanced Exchange warranty for mission-critical commercial deployments.
- Energy Star 8.0 Certified — Meets commercial energy efficiency standards.
Typical Applications
- Digital signage
- Conference room
- Boardroom
- Lobby display
- Retail environment
- Government space
Technical Specifications
| Specification | Value |
|---|---|
| Model | PN-P556 |
| Screen Size | 55 inches diagonal |
| Panel Type | IPS, Edge-Lit LED, High Haze |
| Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 700 cd/m2 |
| Contrast Ratio | 1200:1 (local dimming capable) |
| Viewing Angle (H x V) | 178 x 178 degrees |
| Pixel Pitch | 0.32 mm (81 ppi) |
| Color Depth | 10-bit dithered (1.08 billion colors) |
| Color Temperature Range | 3000K - 15000K |
| Color Engine | SpectraView Engine |
| HDR Modes | HLG, ST2084 (PQ), sRGB, Rec.1886, DICOM |
| Inputs | 2x HDMI 2.0, 2x DisplayPort 1.4, 1x USB-C (DP Alt Mode) |
| Outputs | 1x HDMI 2.0, 1x DisplayPort 1.4, 1x 3.5mm audio |
| USB-C | DP Alt Mode, 65W Power Delivery, Hub functionality |
| USB Ports | USB-A (service), USB-A (downstream), USB-C (downstream) |
| Network | LAN In/Out (100Mb), daisy-chain |
| Control | RS-232C, LAN, 3.5mm IR input |
| Expansion Slot | Intel SDM |
| Duty Cycle | 24 hours / 7 days |
| Power (Typical) | 115W |
| VESA Mount | 300 x 300 mm |
| Dimensions (WxHxD) | 48.7 x 27.9 x 2.3 in (1235.6 x 709.3 x 59.5 mm) |
| Weight | 45.2 lb (20.5 kg) |
| Certifications | Energy Star 8.0 |
| Warranty | 5 years Advanced Exchange |
Frequently Asked Questions
- Q: What makes the PN-P556 different from the MA551?
- The PN-P556 is the P-series model with 700 cd/m2 brightness, USB-C with 65W PD, LAN daisy chain, fan cooling for 24/7 operation, and a 5-year warranty. The MA551 is the MA-series model at 500 cd/m2 with a 3-year warranty and no USB-C or fan cooling.
- Q: Can I connect a laptop with a single USB-C cable?
- Yes. The USB-C port supports DisplayPort Alt Mode for video, 65W Power Delivery for device charging, and USB hub functionality — all over a single cable.
- Q: Does the PN-P556 support DICOM for medical display?
- The PN-P556 includes a DICOM gamma preset within SpectraView Engine. For certified medical diagnostic use, consult your compliance officer for formal DICOM Part 14 validation requirements.
- Q: What is the warranty?
- The PN-P556 carries a 5-year Advanced Exchange warranty. Contact Creation Networks for service details.
