Sharp PN-ME502 – 50" 4K UHD Commercial Digital Signage Display

Product Overview

The Sharp PN-ME502 is a 50-inch 4K UHD commercial display designed for digital signage, conference room, and corporate communication deployments that need reliable 18/7 operation at a cost-conscious price. Its 450 cd/m2 panel, integrated Android 13 system-on-chip media player, and USB-C connectivity let integrators run signage content or meeting-room sources without a dedicated external player. Full LAN and RS-232C control with both Sharp and legacy NEC protocols makes this large format display straightforward to integrate into existing commercial AV control systems.

Product Description

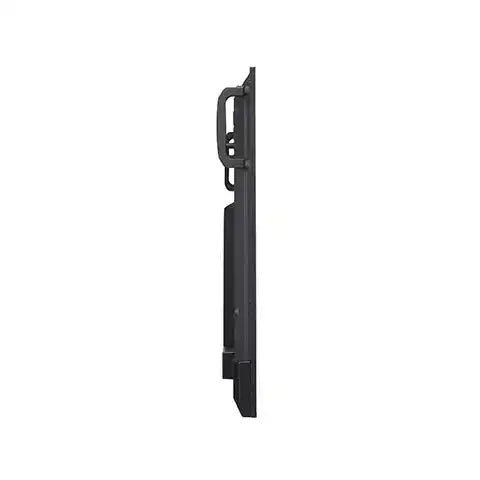

Part of the Sharp ME Series of large format displays, the PN-ME502 pairs a 3840 x 2160 ADS panel with a direct-lit LED backlight, 4000:1 contrast, and 178-degree viewing angles, producing accurate imagery for wayfinding, menu boards, lobby signage, and meeting spaces. HDR compatibility and more than 1.07 billion displayable colors keep branded content vivid in retail and corporate environments. The display installs in landscape or portrait orientation on a standard 400 x 400 mm VESA pattern, with a slim 9.9 mm bezel that suits modern interior designs.

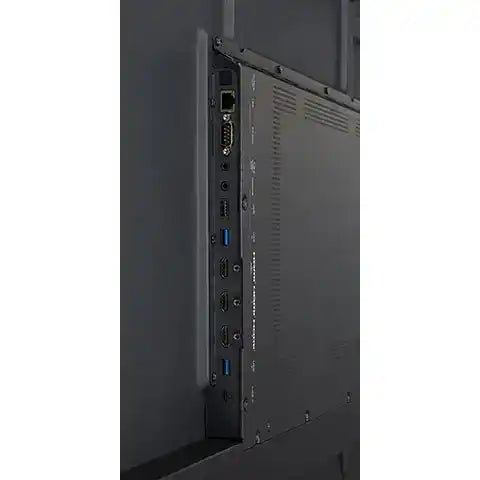

The Android 13 system-on-chip platform drives the integrated media player for playlist creation and scheduled playback from USB or onboard storage, and it supports installation of third-party APKs when a CMS application is required — often removing the cost of an external signage player. Three HDMI 2.0 inputs and a USB-C port with DisplayPort Alt Mode handle meeting-room and signage sources, while the USB-C upstream connection pairs with a USB-A downstream port for peripheral control in huddle room applications. Failover with input detect automatically switches to a secondary source if the primary signal drops, protecting always-on signage networks. IT teams can manage fleets over 1000Mb LAN with NaViSet Administrator 2, and the display is compatible with Crestron Connected software and the Crestron XiO Cloud service. An 18/7 commercial duty cycle, built-in real-time clock with scheduler, ENERGY STAR 8.0 certification, and a 3-year commercial warranty round out the package. Need a different size for your digital signage rollout? See the 43-inch Sharp PN-ME432 or browse the full Sharp commercial display collection.

Key Features

• 4K UHD Native Resolution — 3840 x 2160 resolution renders signage content and presentation detail with clarity at close viewing distances.
• 450 cd/m2 Brightness with HDR Compatibility — Holds audience attention in bright lobbies, retail floors, and conference rooms.
• Android 13 System-on-Chip — Runs the integrated media player and supports third-party APK installation for CMS-driven digital signage without an external player.
• Integrated Media Player with Scheduler — Creates playlists and schedules playback from USB or internal storage using the built-in real-time clock.
• USB-C with DP Alt Mode — Carries video from a laptop over one cable and adds upstream control of peripherals through the USB-A downstream port.
• Full External Control — Bidirectional LAN (1000Mb) and RS-232C control supports both Sharp and legacy NEC protocols for clean control-system integration.
• Failover with Input Detect — Automatically switches to a secondary or tertiary source if the primary signal fails, keeping signage live.

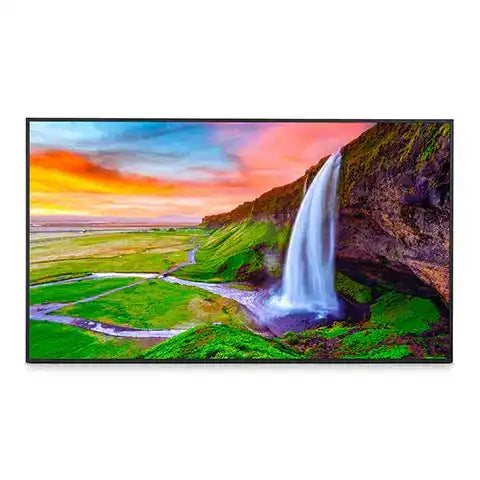

• Landscape and Portrait Installation — Mounts in either orientation on a 400 x 400 mm VESA pattern for flexible commercial installations.
• 18/7 Commercial Runtime — Panel and electronics are rated for extended daily operation in business environments.
• Crestron and NaViSet Compatible — Works with Crestron Connected, Crestron XiO Cloud, and free NaViSet Administrator 2 fleet management software.
• ENERGY STAR 8.0 Certified — Typical 85W operating draw and sub-0.5W ECO standby reduce operating costs.
• 3-Year Commercial Warranty — Full commercial coverage protects the investment in business-critical installations.

Typical Applications

• Conference room
• Huddle room
• Commercial meeting space
• Training room
• Government space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Can the Sharp PN-ME502 run digital signage without an external media player?

Yes. The integrated media player schedules playlist playback from USB or onboard storage, and the Android 13 platform accepts third-party CMS APKs, so most signage deployments need no external player hardware.

Does it support portrait installation for menu boards or wayfinding?

Yes. The PN-ME502 is rated for both landscape and portrait orientation, making it suitable for portrait menu boards, directories, and wayfinding signage.

How does it integrate with control systems?

The display offers bidirectional control over LAN and RS-232C and supports both Sharp and legacy NEC command protocols. It is also compatible with Crestron Connected software and the Crestron XiO Cloud service.

Is it rated for continuous operation?

The PN-ME502 carries an 18/7 commercial runtime rating with a built-in real-time clock and scheduler, so it can power on and off automatically around business hours.

Can I connect a laptop with a single cable?

Yes. The USB-C input supports DisplayPort Alt Mode for video plus upstream USB, letting a presenter drive the display and connected peripherals from one cable in huddle room and conference room applications.

What warranty comes with this display?

Sharp backs the PN-ME502 with a full 3-year commercial warranty. Creation Networks can also assist with mounts, installation planning, and multi-display signage rollouts.
