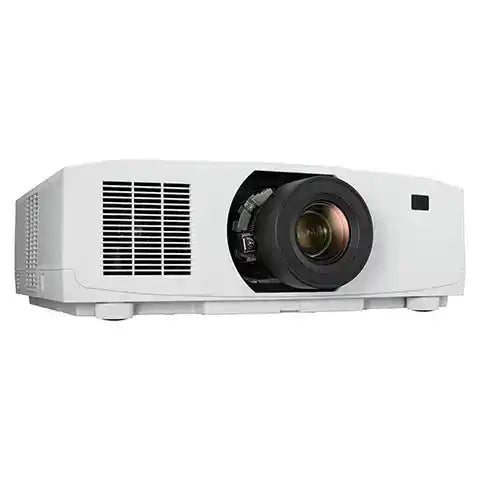

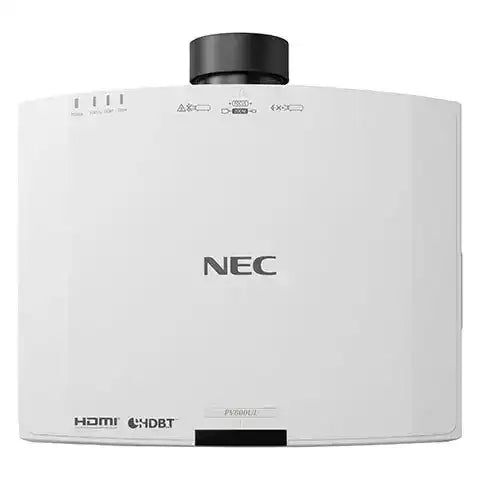

Sharp NP-PV800UL – 8,000-Lumen WUXGA 3LCD Laser Projector (No Lens)

Product Overview

The Sharp NP-PV800UL is an 8,000-lumen (center: 8,300 lm) WUXGA laser 3LCD professional installation projector in the no-lens configuration, available in black or white cabinet. Designed for higher education and corporate AV environments, the PV series sealed optical engine provides 4K-ready HDR10 processing, HDBaseT single-cable connectivity, and 20,000 hours of maintenance-free laser operation. Native AMX Beacon, Crestron RoomView, and Extron XTP integration supports professionally controlled environments, and the no-lens body allows integrators to specify the appropriate NP-series lens for the installation geometry.

Product Description

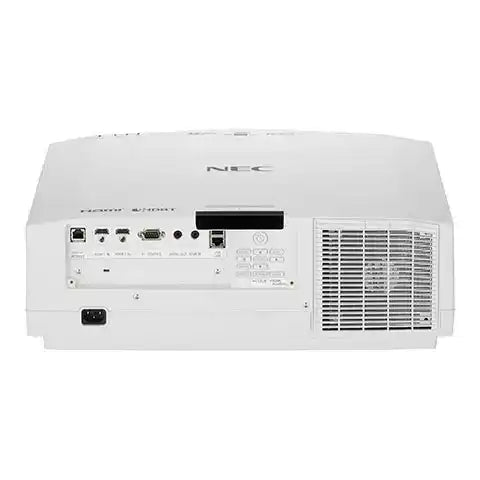

The NP-PV800UL uses a WUXGA 1920x1200 3LCD panel with 3,000,000:1 dynamic contrast and HDR10 support. Inputs include dual HDMI 2.0 (HDCP 1.4/2.2), HDBaseT with HDCP, RS-232, RJ-45, and USB 2.0. The projector operates at 490W in normal mode and 445W in eco mode. Dimensions are 19.8 x 6.6 x 16.2 in. (503 x 168 x 411 mm) with a net weight of 24.7 lbs., making it significantly lighter and more compact than the PA series at equivalent brightness levels. Compatible lenses include the NP40ZL, NP41ZL, NP43ZL, NP44ML ultra-short throw, and NP50ZL motorized zoom options.

Key Features

• 8,000 Lumens (8,300 Center) — Effective brightness for medium conference rooms, training rooms, and controlled-light commercial spaces.
• No-Lens Configuration — Compatible with NP40ZL, NP41ZL, NP43ZL, NP44ML ultra-short throw, and NP50ZL lenses.
• WUXGA 1920x1200 Native Resolution — Supports 4K input up to 4096x2160 with HDR10 processing.
• Compact Form Factor — 24.7 lbs., 19.8 x 6.6 x 16.2 in.; smaller and lighter than PA series equivalents.
• HDBaseT Input — Single-cable uncompressed HD video, audio, Ethernet, and control delivery.
• 490W / 445W Operation — Normal and eco mode power consumption for efficient long-term deployment.
• 20,000-Hour Laser Life — No lamp or filter replacement required.
• Control System Integration — AMX Beacon, Crestron RoomView, Extron XTP, PJ Link; RS-232, IR, RJ-45, USB 2.0, DDC/CI.
• 3,000,000:1 Dynamic Contrast — Accurate image rendering for mixed content.
• Available in Black or White — Black and white cabinet options available via variant selection.
• 5-Year InstaCare Warranty — 5-year or 20,000-hour parts and labor with next-business-day exchange.

Typical Applications

• Conference room
• Training room
• Boardroom
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Does the NP-PV800UL include a lens?

No. Compatible NP-series lenses include the NP40ZL, NP41ZL, NP43ZL, NP44ML ultra-short throw, and NP50ZL motorized zoom options. Lens selection is based on installation throw distance and screen size.

How does the PV800UL compare to the PA804UL?

Both deliver approximately 8,000–8,200 lumens at WUXGA. The PV800UL is smaller and lighter (24.7 lbs. vs. approximately 30+ lbs. for PA series) with a simplified lens lineup. The PA804UL offers an additional HDBaseT Repeater output and broader NP-series lens compatibility.

What cabinet colors are available?

Both black and white cabinet variants are available. Select the desired color from the variant options on this product page.

What is the warranty?

Registered owners receive 5-year or 20,000-hour parts and labor with Sharp InstaCare next-business-day exchange.
