Sharp LED-FC012i-110 – 110" FC Series FHD COB dvLED Kit

Product Overview

The Sharp LED-FC012i-110 is a 110-inch Full HD direct view LED video wall kit designed for high-traffic commercial environments such as retail, transportation hubs, museums and corporate lobbies. Built on Sharp/NEC's 1.26mm fine pixel pitch flip chip COB LED modules, this FC Series dvLED display kit delivers 800 cd/m2 brightness and a 20,000:1 contrast ratio with comfortable viewing from just 3 to 7 feet away. The complete LED video wall bundle includes modules, controller, power bar, wall mount and spare parts, giving AV integrators everything needed for a finished 1920x1080 commercial LED display installation.

Product Description

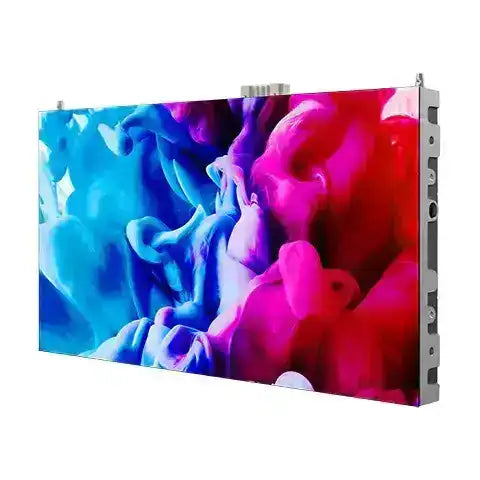

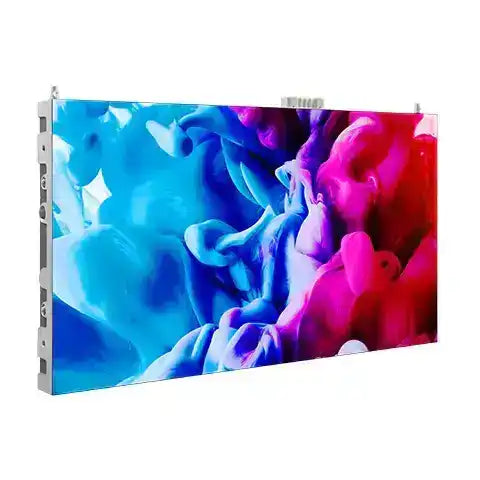

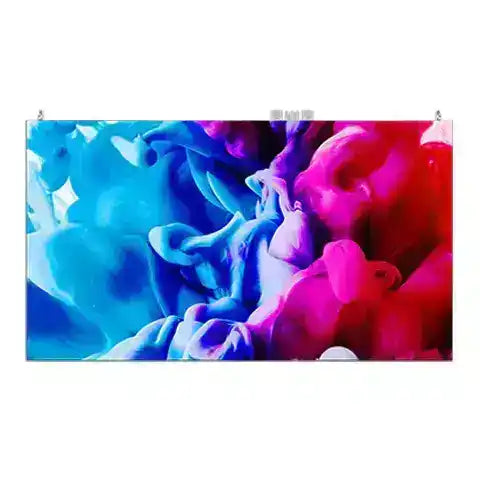

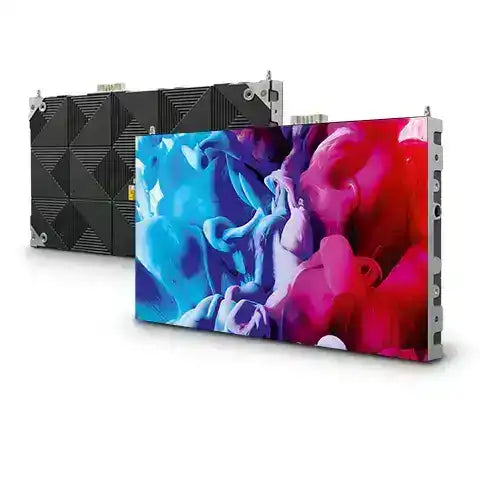

The FC Series combines fine pixel pitch imaging with chip-on-board (COB) durability. The flip chip COB construction encapsulates the LEDs in a protective surface that resists impact and contact, making this dvLED video wall a practical choice where the public can walk right up to the screen. The 1.26mm pitch resolves crisp Full HD detail at close range while the 16:9 aspect ratio plays standard 1920x1080 content natively — no custom content reformatting required, which saves digital signage teams time and budget.

Installation is streamlined by a cable-free module design with no external cables required between cabinets, and the complete kit ships with the LED controller, 16 cabinets carrying 128 pixel cards, a 4x4 overframe kit, power bar, 4x4 wall mount, pixel card removal tool and a spare parts kit. The modules are fully front-serviceable, and pixel cards are hot-swappable so technicians can replace them without turning the display off — a key requirement for flush-mounted installations in lobbies and corridors. The shallow 3.2-inch installed depth meets ADA protrusion requirements in public circulation spaces. HDMI, DVI-D and 3G-SDI inputs with LAN and GenLock control allow clean integration with commercial AV control systems and signage CMS platforms. Designed and tested in Germany, the FC Series is covered by a 3-year limited warranty with Sharp/NEC planning, installation and post-installation maintenance support available.

Note: Price does not include installation. Contact Creation Networks for turnkey design, installation and commissioning pricing.

Key Features

• 1.26mm Fine Pixel Pitch — Resolves sharp Full HD detail at viewing distances of 3 to 7 feet for close-proximity commercial spaces.
• Durable COB Flip Chip LEDs — Encapsulated chip-on-board construction withstands contact in high-traffic public environments.
• 110" Full HD Canvas — Native 1920x1080 resolution in 16:9 plays standard content with no reformatting.
• High Brightness and Contrast — 800 cd/m2 typical brightness with a 20,000:1 contrast ratio keeps content vivid in bright interiors.
• Complete Video Wall Kit — Includes LED controller, 16 cabinets, 128 pixel cards, 4x4 overframe, power bar, wall mount, removal tool and spare parts.
• Cable-Free Module Design — No external cables between modules speeds installation and reduces failure points.

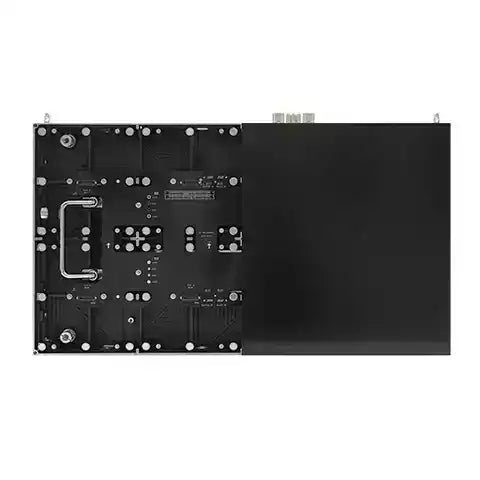

• Front-Serviceable, Hot-Swappable — Pixel cards are replaced from the front without powering down, ideal for flush wall mounting.
• ADA-Compliant Depth — 3.2-inch installed depth meets ADA protrusion limits in corridors and lobbies.
• 3-Year Limited Warranty — Backed by Sharp/NEC commercial warranty coverage and support programs.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• Multi-purpose room
• House of worship
• Government space
• Training room

Technical Specifications

Frequently Asked Questions

What ships with the LED-FC012i-110 dvLED kit?

The bundle includes the LED controller, 16 LED cabinets with 128 pixel cards, a 4x4 overframe kit, power bar, 4x4 wall mount, pixel card removal tool and a spare parts kit. Professional installation is required and is not included in the product price; Creation Networks can quote turnkey installation.

How is COB more durable than standard SMD dvLED?

COB (chip-on-board) flip chip modules encase the LEDs in a protective layer rather than leaving individual SMD packages exposed. The result is a touch-tolerant surface suited to lobbies, retail floors and other spaces where the public can contact the screen.

What is the recommended viewing distance for a 1.26mm pixel pitch?

Sharp/NEC rates the LED-FC012i-110 for comfortable viewing from approximately 3 to 7 feet, making it appropriate for boardrooms, conference rooms and close-proximity signage where viewers stand near the display.

How do I connect sources and control the display?

The included LED controller accepts HDMI, DVI-D and 3G-SDI inputs and provides LAN and GenLock connections, integrating with commercial AV control processors, room systems and digital signage content management platforms.

Can the wall be installed flush against a wall and still be serviced?

Yes. The FC Series is fully front-serviceable with hot-swappable pixel cards, so modules are replaced from the front while the display remains powered — no rear access required.

What warranty and support are available?

The LED-FC012i-110 carries a 3-year limited warranty from Sharp/NEC. Contact Creation Networks for extended service plans and post-installation maintenance programs.
