Sharp LD-A1651F – 165" LD-AF Series All-in-One FHD LED Display

Product Overview

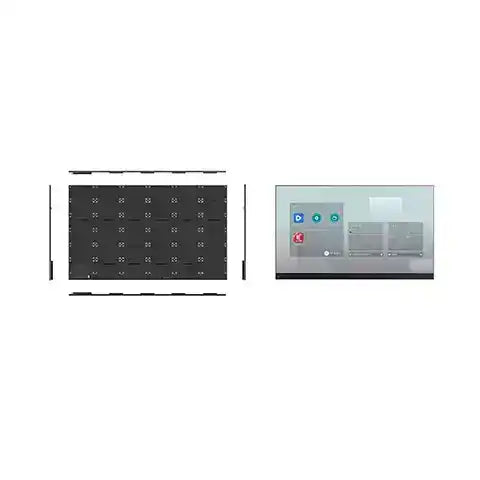

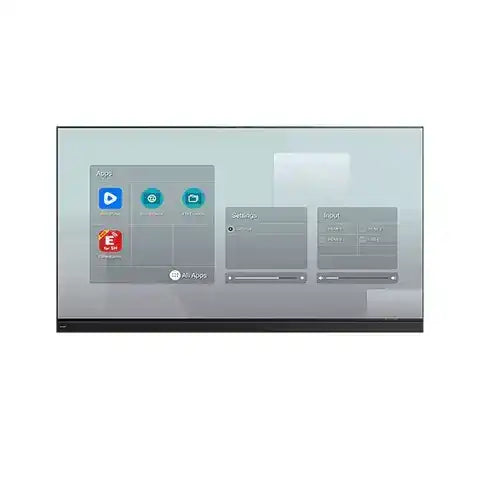

The Sharp LD-A1651F is a 165-inch all-in-one direct view LED display that removes the complexity of traditional dvLED video walls for conference rooms, boardrooms and commercial meeting spaces. Unlike conventional LED walls that require external controllers, processors and separate audio, this all-in-one LED display integrates built-in speakers, an Android 13 system-on-chip media player and remote control operation in a single Full HD (1920x1080) unit. With a 1.9mm pixel pitch and a single-power-cable design that installs in as little as two hours, the LD-AF Series gives AV integrators and facilities teams a large format LED display deployment without a multi-day video wall project.

Product Description

Sharp's LD-AF Series rethinks the dvLED video wall as a finished product rather than a kit. The 165-inch class display arrives as a unified system with the LED controller, audio and signal processing built in, so installation requires only mounting and a single power cable — typically completed in about two hours by a professional crew. For IT and facilities managers, that means a predictable deployment in an all-hands room or large conference room with no separate equipment rack required for the display itself.

The integrated Android 13 system-on-chip includes a high-end media player and supports third-party APK applications, allowing the display to run digital signage or collaboration software natively without an external player. Three HDMI 2.0 inputs with HDCP plus a USB-C port with DisplayPort Alt Mode connect laptops and room AV systems, while the USB-C upstream and USB-A downstream ports let a connected PC control room peripherals through the display. For enterprise management, the LD-A1651F works with Sharp's NaViSet Administrator software and is fully compatible with Crestron Connected and the Crestron XiO Cloud service, so it folds into existing commercial AV control and monitoring environments. Front-serviceable modules keep maintenance simple after flush wall installation, and the 100,000-hour LED lifetime supports years of daily meeting room use.

Note: Contact Creation Networks for pricing that includes professional installation.

Key Features

• All-in-One dvLED Design — Controller, speakers and media player are built in, eliminating the external components required by traditional LED video walls.
• 165" Full HD Image — Native 1920x1080 resolution at a 1.9mm pixel pitch delivers a clear, immersive picture for meeting audiences.
• Two-Hour Installation — A single power cable and streamlined mounting process allow professional installation in as little as two hours.
• Android 13 System-on-Chip — Integrated high-end media player supports third-party APK applications for signage and collaboration without an external player.
• USB-C with DP Alt Mode — One-cable laptop connection with upstream control of room peripherals via the USB-A downstream port.
• Built-In Speakers — Integrated audio removes the need for a separate sound system in most meeting room applications.
• Crestron Compatible — Works with Crestron Connected and Crestron XiO Cloud for enterprise AV control and remote management.
• NaViSet Administrator Support — Sharp's device management software simplifies administration of multi-display deployments.

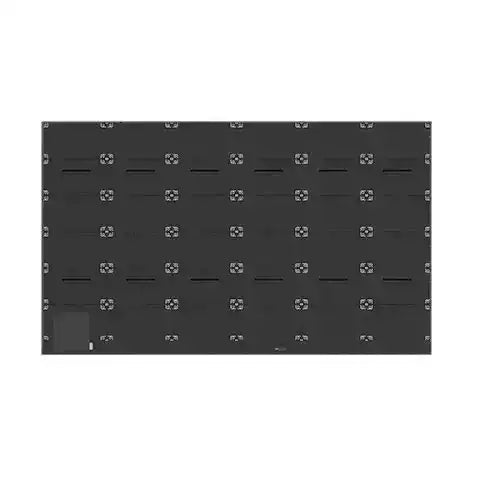

• Front-Serviceable Modules — Maintenance is performed from the front, supporting flush wall mounting without rear access.
• 100,000-Hour Lifetime — Long-life LEDs support years of continuous commercial operation.

Typical Applications

• Conference room
• Boardroom
• All-hands room
• Commercial meeting space
• Multi-purpose room
• Training room
• House of worship

Technical Specifications

Frequently Asked Questions

How is the LD-A1651F different from a traditional dvLED video wall kit?

Traditional dvLED kits require a separate LED controller, external audio and a multi-day cabinet-by-cabinet build. The LD-A1651F arrives as a unified all-in-one display with built-in controller, speakers and media player, installing with a single power cable in as little as two hours.

Can the display run signage or collaboration apps without an external player?

Yes. The integrated Android 13 system-on-chip includes a high-end media player and supports third-party APK applications, so many deployments need no external signage player or PC.

Does the LD-A1651F integrate with Crestron control systems?

Yes. The display is fully compatible with Crestron Connected software and the Crestron XiO Cloud service, and it also supports LAN and RS-232C control for other commercial AV control platforms.

What does the USB-C port support?

The USB-C input carries video via DisplayPort Alt Mode and provides upstream connectivity, letting a connected laptop control peripherals attached to the display's USB-A downstream port — a one-cable meeting room connection.

Is a 1.9mm pixel pitch appropriate for a conference room?

Yes. The 1.9mm pitch produces a sharp Full HD image at typical conference room and all-hands room viewing distances of roughly 6 feet and beyond on a 165-inch canvas.

Is a smaller size available in the LD-AF Series?

Yes. Sharp also offers the 138-inch LD-A1381F in the same all-in-one LD-AF Series. Contact Creation Networks to compare sizing for your room.

What support is available after installation?

The display is front-serviceable for on-wall maintenance, and Sharp supports the LD-AF Series with NaViSet Administrator management software. Contact Creation Networks for warranty terms and post-installation service plans.
