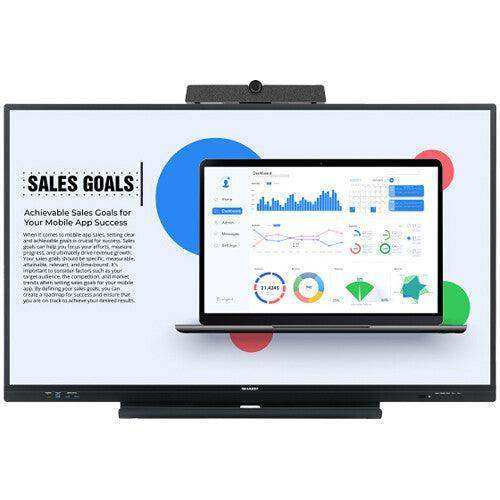

Sharp PN-LC752 – 75" AQUOS BOARD 4K Interactive Display with SoC
Sharp PN-LC752 – 75" AQUOS BOARD 4K Interactive Display with SoC is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sharp PN-LC752 – 75" AQUOS BOARD 4K Interactive Display with SoC
Product Overview
The Sharp PN-LC752 is a 75-inch AQUOS BOARD interactive display with 4K UHD resolution, a built-in Arm Cortex-A55 quad-core SoC controller, and a single USB-C connection for instant collaboration without cables or external compute devices. Designed for conference rooms and boardrooms requiring a mid-size interactive display with whiteboard, annotation, and wireless sharing capabilities in a commercial-grade form factor.
Product Description
The PN-LC752 operates identically to the PN-LC862 but at 74.5 inches — the same Arm A55 SoC, USB-C, Wi-Fi 5, Bluetooth 4.2, 450 cd/m2, 1200:1 contrast, and 15W x 2 speakers are shared between both models. The built-in whiteboard application, SHARP Pen Software, and SHARP Touch Viewer provide full interactive functionality without booting an external PC. An OPS expansion slot accepts optional Windows compute modules. The optional PN-ZCMS1 AV Soundbar adds an integrated camera and microphone for video conferencing. Front and rear USB-A ports, rear HDMI/DisplayPort/VGA inputs, optical audio output, and RS-232C/LAN control complete the connectivity specification.
Key Features
- Single USB-C Connection — One cable for video, touch control, and data for fast meeting start-up.
- Built-In Arm Cortex-A55 SoC — Whiteboard, annotation, and wireless sharing without an external PC.
- 75-Inch 4K UHD Direct-Lit Display — 450 cd/m2, IR touch for standard conference rooms and boardrooms.
- Wi-Fi 5 and Bluetooth 4.2 — Wireless connectivity via included adapter.
- OPS-Compliant Expansion Slot — Optional Windows compute module for full PC functionality.
- Optional PN-ZCMS1 Soundbar — Adds camera and microphone for video conferencing.
- 15W x 2 Stereo Speakers — Built-in meeting room audio with optical digital output.
Typical Applications
- Conference room
- Boardroom
- Training room
- Multi-purpose room
Technical Specifications
| Specification | Value |
|---|---|
| Model | PN-LC752 |
| Screen Size | 74.5 inches diagonal |
| Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 450 cd/m2 |
| Contrast Ratio | 1200:1 |
| Touch Technology | Infrared (IR) |
| Built-In Controller | Arm Cortex-A55 quad-core SoC |
| Inputs (Rear) | 2x HDMI, 1x DisplayPort 1.2, 1x VGA, 1x USB-C (DP Alt Mode) |
| Wireless | Wi-Fi 5 (802.11ac), Bluetooth 4.2 (via included adapter) |
| Expansion Slot | OPS-compliant |
| Audio | 15W x 2 built-in stereo, optical digital output |
| Warranty | 3 years parts and labor |
Frequently Asked Questions
- Q: What is the difference between the PN-LC752 and PN-LC862?
- The PN-LC752 is the 75-inch version and the PN-LC862 is the 86-inch version. Both use the same Arm A55 SoC and feature set. The primary differences are screen size and price.
- Q: What is the warranty?
- Sharp provides a 3-year parts and labor warranty. Contact Creation Networks for service plan options.
