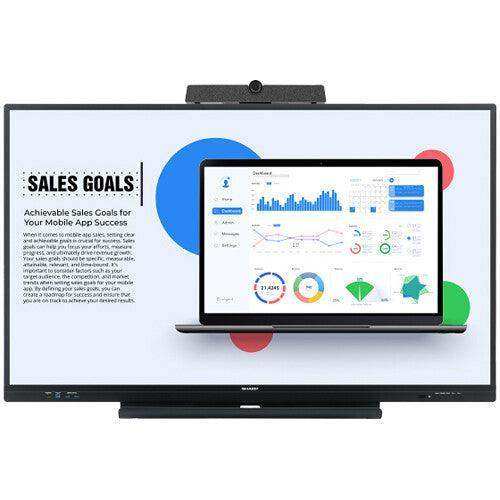

Sharp PN-LC652 – 65" AQUOS BOARD 4K Interactive Display with SoC
Product Overview
The Sharp PN-LC652 is a 65-inch AQUOS BOARD interactive display with 4K UHD resolution, a built-in Arm Cortex-A55 quad-core SoC controller, and a single USB-C connection for instant collaboration in huddle rooms, small conference rooms, and compact meeting spaces. Sharing the same feature set as the larger PN-LC752 and PN-LC862, the PN-LC652 provides built-in whiteboard, wireless sharing, and annotation capabilities without requiring an external PC, in a 65-inch form factor suited to smaller collaborative spaces.
Product Description
The PN-LC652 operates on a 64.5-inch direct-lit LCD panel at 3840x2160 UHD with 450 cd/m2 brightness and 1200:1 contrast ratio. The built-in Arm A55 SoC handles whiteboard, overlay, and wireless functionality independently. USB-C rear connection supports video input (DP Alt Mode), touch control, and data over a single cable. Wi-Fi 5 and Bluetooth 4.2 (via included adapter) enable wireless screen sharing. An OPS expansion slot accepts optional Windows compute modules. HDMI/DisplayPort/VGA inputs, optical audio output, 15W x 2 stereo speakers, RS-232C/LAN control, and Gigabit Ethernet complete the specification.
Key Features
- Single USB-C Connection — Video, touch, and data over one cable for fast meeting start-up.
- Built-In Arm Cortex-A55 SoC — Whiteboard, annotation, and wireless sharing without an external PC.
- 65-Inch 4K UHD Direct-Lit Display — 450 cd/m2 at 64.5 inches for huddle rooms and small conference rooms.
- Wi-Fi 5 and Bluetooth 4.2 — Wireless connectivity via included adapter.
- OPS-Compliant Expansion Slot — Optional Windows compute module for full PC functionality.
- 15W x 2 Stereo Speakers — Built-in audio with optical digital output.
Typical Applications
- Huddle room
- Conference room
- Training room
- Multi-purpose room
Technical Specifications
| Specification | Value |
|---|---|
| Model | PN-LC652 |
| Screen Size | 64.5 inches diagonal |
| Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 400 cd/m2 |
| Contrast Ratio | 1200:1 |
| Touch Technology | Infrared (IR) |
| Built-In Controller | Arm Cortex-A55 quad-core SoC |
| Wireless | Wi-Fi 5 (802.11ac), Bluetooth 4.2 (via included adapter) |
| Expansion Slot | OPS-compliant |
| Audio | 15W x 2 built-in stereo, optical digital output |
| Warranty | 3 years parts and labor |
Frequently Asked Questions
- Q: What is the difference between PN-LC652 and PN-LC752?
- The PN-LC652 is the 65-inch version and the PN-LC752 is the 75-inch version. Both share the same Arm A55 SoC, feature set, and connectivity.
- Q: What is the warranty?
- Sharp provides a 3-year parts and labor warranty. Contact Creation Networks for service plan options.
