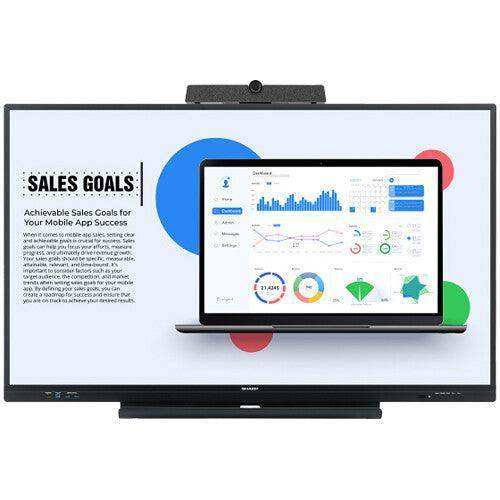

Sharp PN-LC862 – 86" AQUOS BOARD 4K Interactive Display with SoC

Product Overview

The Sharp PN-LC862 is an 86-inch AQUOS BOARD interactive display with 4K UHD resolution, a built-in SoC controller, and a single USB-C connection for immediate collaboration in conference rooms, boardrooms, and training environments. Designed for a pen-on-paper writing experience, it combines IR touch with built-in whiteboard and wireless presentation capabilities, an OPS-compliant expansion slot, and dual 15W speakers in a commercial-grade form factor for permanent large-format meeting room installations.

Product Description

The PN-LC862 uses an 85.6-inch direct-lit LCD panel at 3840x2160 UHD resolution with 450 cd/m2 brightness. The built-in Arm Cortex-A55 quad-core SoC controller enables whiteboard, overlay annotation, and wireless screen sharing without an external compute device. A single USB-C rear connection supports video input (DisplayPort Alt Mode), touch control, and data over one cable for streamlined laptop connection. Front and rear USB-A ports, an OPS-compliant expansion slot, Wi-Fi 5 (802.11ac), Bluetooth 4.2, and RS-232C/LAN control provide flexible installation and integration options. SHARP Pen Software and SHARP Touch Viewer software are included. The optional PN-ZCMS1 AV Soundbar with integrated camera and microphone extends the display for video conferencing applications. Built-in 15W x 2 stereo speakers and optical digital audio output complete the audio specification.

Key Features

• Single USB-C Connection — One cable for video, touch control, and data for fast meeting room start-up without cable management complexity.
• Built-In SoC Controller — Arm Cortex-A55 quad-core processor handles whiteboard, annotation, and wireless sharing without an external PC.
• Built-In Whiteboard Application — Quick-access whiteboard for meeting notes and brainstorming without booting an external device.
• SHARP Pen Software — On-screen annotation and graphics tool for presentations and interactive content delivery.
• SHARP Touch Viewer — Software for easy manipulation of multiple file types directly on the display.
• OPS-Compliant Expansion Slot — Accepts optional OPS compute modules for Windows-based operation when full PC functionality is required.
• Wi-Fi 5 and Bluetooth 4.2 — Wireless connectivity for screen sharing and peripheral connections without additional hardware.
• 86-Inch 4K UHD Direct-Lit Display — 450 cd/m2, IR touch for large conference rooms and boardrooms.
• Optional PN-ZCMS1 Soundbar — Add-on AV soundbar with integrated camera and microphone for video conferencing capability.
• 15W x 2 Stereo Speakers — Built-in audio with optical digital output for external audio system integration.

Typical Applications

• Conference room
• Boardroom
• All-hands room
• Training room
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Q: Does the PN-LC862 need an external PC to operate?

No. The built-in Arm Cortex-A55 SoC controller runs whiteboard and wireless sharing functions independently. For full Windows operation, an optional OPS module can be installed in the expansion slot.

Q: What does the single USB-C connection provide?

The rear USB-C port supports DisplayPort Alt Mode for video input, touchscreen control data, and USB hub functionality over a single cable for simplified laptop connection.

Q: Is video conferencing supported?

The optional PN-ZCMS1 AV Soundbar adds an integrated camera and microphone for video conferencing when paired with the PN-LC862.

Q: What is the difference between the PN-LC862 and PN-L862B?

The PN-LC862 features a built-in SoC controller, USB-C connectivity, and Wi-Fi. The PN-L862B is the AQUOS BOARD LED interactive model with different connectivity and form factor specifications.

Q: What is the warranty?

Sharp provides a 3-year parts and labor warranty. Contact Creation Networks for service plan options.
