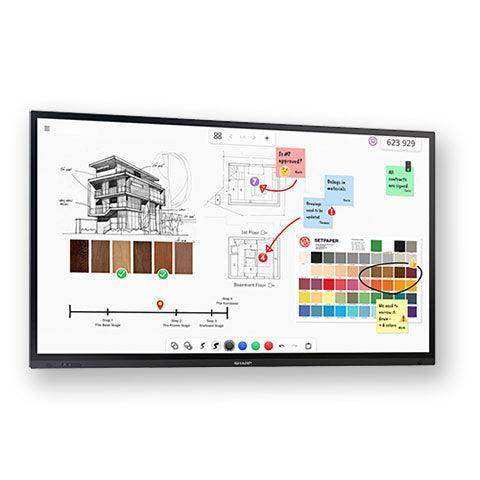

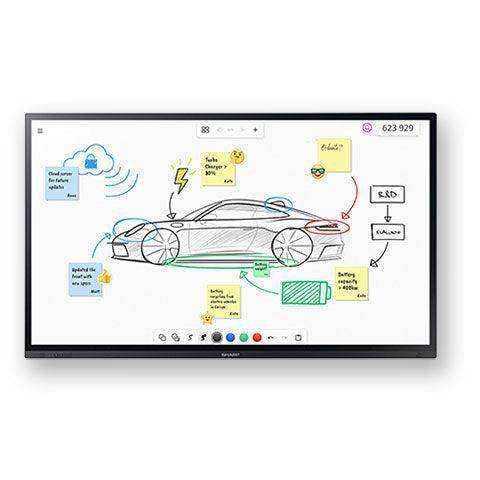

Sharp PN-LA862 – 86" 4K UHD 24/7 Interactive Display with Windows 11 PC

Product Overview

The Sharp PN-LA862 is an 86-inch 4K UHD interactive display built for enterprise environments where IT security, collaboration, and 24/7 operation are non-negotiable requirements. It is the flagship size in the PN-LA series — Sharp's premium commercial interactive display line. The PN-LA862 ships with a pre-installed Windows 11 Pro PC (Intel Core i5 Tiger Lake, via built-in SDM slot), enabling it to function as a fully operational Windows workstation without a separate PC. InGlass M5 premium touch technology supports 20-point multi-touch, passive pen pressure sensitivity, Windows Ink, and palm rejection. It is rated for 24/7 continuous operation and carries TAA compliance for government and defense procurement.

Product Description

The PN-LA862 features a 3840x2160 4K UHD direct-lit LCD panel at 450 cd/m² brightness with a 1200:1 contrast ratio. The InGlass M5 touch system provides 20-point capacitive-level precision using passive pens — no batteries or active stylus required. The pre-installed SDM Windows 11 Pro PC (Core i5 Tiger Lake) enables immediate deployment within corporate IT environments, including Active Directory integration and enterprise security policy compliance. AirServer wireless screen sharing and FlatFrog Board collaborative whiteboarding (1-year license) are pre-installed. The PN-ZCMS1 AV soundbar with camera and microphone is available as an optional add-on. Energy management features include an ambient light sensor, human presence detection, and eco modes. The built-in 10W x 2 stereo audio system eliminates the need for external speakers in standard meeting room setups. EnergyStar 8.0 certification reflects the display's efficiency profile.

Key Features

• Pre-installed Windows 11 Pro PC (Core i5) — Built-in SDM slot with Intel Core i5 Tiger Lake CPU eliminates the need for a separate PC and enables secure corporate IT integration.
• InGlass M5 Premium Touch (20-point) — Passive pen pressure sensitivity, Windows Ink support, and palm rejection for a natural writing and annotation experience.
• 4K UHD 3840x2160 Resolution — 86-inch direct-lit LCD panel for crisp 4K content in large meeting rooms and all-hands spaces.
• 450 cd/m² Brightness / 1200:1 Contrast — Commercial-grade panel output for consistent visibility in ambient-lit meeting environments.
• 24/7 Commercial Operation — Industrial-grade thermal management supports continuous-duty deployment in permanent installations.
• TAA Compliant — Meets Trade Agreements Act requirements for U.S. government and defense procurement.
• FlatFrog Board for Rooms (1-year) — Pre-installed collaborative whiteboarding software for hybrid meeting use.
• AirServer Wireless Screen Sharing — Pre-installed wireless mirroring for BYOD meeting environments.
• Sharp Meeting Launcher — Pre-installed application launcher for quick access to VC platforms and corporate apps in a secured environment.
• Built-in 10W x 2 Stereo Audio — Integrated speakers for standard meeting room audio without external speaker requirements.
• Energy Star 8.0 / Ambient Light Sensor / Human Presence Detection — Eco modes reduce power consumption during inactivity.
• Optional PN-ZCMS1 AV Soundbar — Adds camera, microphone, and enhanced audio for video conferencing without a separate camera peripheral.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Government space
• Training room
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Competitor Comparison

The PN-LA862 competes primarily with the Google JAMBOARD 65 (discontinued), Microsoft Surface Hub 2S 85", and Samsung Flip 85" WM85B in the premium large-format interactive display category.

Frequently Asked Questions

Does the PN-LA862 work with Microsoft Teams, Zoom, and other VC platforms?
Yes. The built-in Windows 11 Pro PC runs any Windows-compatible video conferencing application including Teams, Zoom, Webex, and Google Meet. The optional PN-ZCMS1 soundbar adds a camera and microphone specifically designed for this use case.

Is the built-in PC upgradeable?
The SDM slot PC module is replaceable. Contact Creation Networks for upgrade options.

Is this display TAA compliant for government procurement?
Yes. The PN-LA862 is TAA compliant, meeting Trade Agreements Act requirements for U.S. government and defense agency procurement.

What is the touch technology on the PN-LA862?
The InGlass M5 system uses infrared touch detection with 20 simultaneous touch points. It supports passive pen input with pressure sensitivity — no batteries or active pen required.

Is a separate soundbar or camera required for video conferencing?
The built-in 10W x 2 stereo speakers provide audio output, but a microphone and camera are required for video conferencing. The optional PN-ZCMS1 soundbar provides an integrated AV bar solution designed for the PN-LA series.
