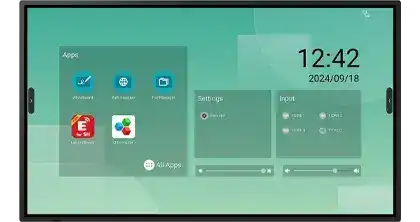

Sharp PN-LM431 – 43" AQUOS BOARD 4K Interactive Display 5-Year
Sharp PN-LM431 – 43" AQUOS BOARD 4K Interactive Display 5-Year is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sharp PN-LM431 – 43" AQUOS BOARD 4K Interactive Display 5-Year
Product Overview
The Sharp PN-LM431 is a 43-inch AQUOS BOARD interactive display with 4K UHD resolution, 20-point IR touch, and an Arm Cortex-A73/A53 octo-core processor for responsive whiteboard, annotation, and wireless collaboration in compact meeting spaces, huddle rooms, and training environments. The PN-LM series delivers 500 cd/m2 brightness and a 5-year warranty in a 43-inch form factor suited to small-room interactive display applications.
Product Description
The PN-LM431 uses a 42.5-inch TFT LCD with direct LED backlighting at 3840x2160 UHD and 0.2451mm pixel pitch, producing 104 ppi for sharp imagery at close viewing distances. Brightness reaches 500 cd/m2 maximum (450 cd/m2 typical) with a 4000:1 contrast ratio. The Arm A73+A53 octo-core SoC provides fast processing for interactive applications. Three HDMI inputs plus USB-C (DP Alt Mode), RS-232C and LAN control, 10W x 2 stereo speakers, and a 5-year limited warranty complete the specification. Portrait, landscape, and backward tilt orientation support provides installation flexibility.
Key Features
- 43-Inch 4K UHD Interactive Display — 104 ppi at 43 inches for sharp imagery at close viewing distances.
- Arm Octo-Core SoC (A73+A53) — High-performance processor for responsive interactive applications.
- 20-Point IR Touch — Multi-touch collaboration for small meeting rooms and huddle spaces.
- 500 cd/m2 Maximum Brightness — Higher output than standard AQUOS BOARD models.
- USB-C Single-Cable Connection — Video, touch, and data over one cable.
- Landscape, Portrait, and Backward Tilt — Flexible installation orientation including 0-45 degree backward tilt.
- 5-Year Limited Warranty — Extended coverage for commercial deployments.
- Energy Star 8.0 Certified — Commercial energy efficiency compliance.
Typical Applications
- Huddle room
- Conference room
- Training room
Technical Specifications
| Specification | Value |
|---|---|
| Model | PN-LM431 |
| Screen Size | 42.5 inches diagonal |
| Resolution | 3840 x 2160 (4K UHD) |
| Brightness (Typical) | 450 cd/m2 |
| Brightness (Maximum) | 500 cd/m2 |
| Contrast Ratio | 4000:1 |
| Pixel Pitch | 0.2451 mm |
| Touch System | IR, 20-point |
| Processor | Arm Cortex-A73x4 2.3GHz + Cortex-A53x4 2.0GHz (octo-core) |
| Inputs | 3x HDMI (HDCP 2.3, CEC, ARC on HDMI3), 1x USB-C (DP 1.4 Alt Mode) |
| Audio | 10W x 2 built-in stereo speakers |
| Power (Typical) | 110W |
| VESA Mount | 400 x 400 mm |
| Weight (without stand) | 46.3 lb (21 kg) |
| Certifications | Energy Star 8.0 |
| Warranty | 5 years parts and labor |
Frequently Asked Questions
- Q: What is the difference between PN-LM431 and PN-LM551?
- The PN-LM431 is 43 inches with 4000:1 contrast ratio. The PN-LM551 is 55 inches with 5000:1 contrast. Both share the same Arm octo-core SoC, 500 cd/m2 brightness, and 5-year warranty.
- Q: What is the warranty?
- The PN-LM431 carries a 5-year limited warranty. Contact Creation Networks for service plan details.
