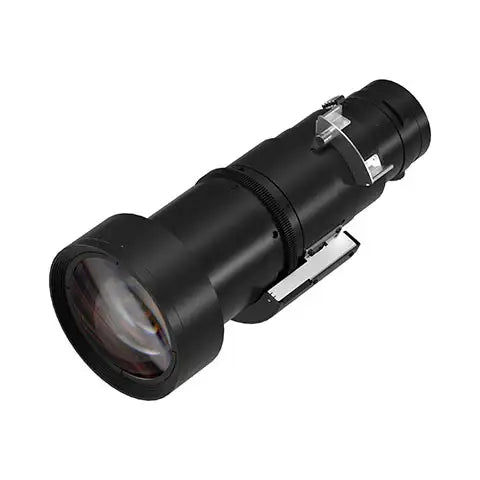

Sharp XP-62ZL – 2.10-4.00 Long-Throw Motorized Zoom Lens

Product Overview

The Sharp XP-62ZL is a motorized long-throw zoom lens with a 2.10-4.00:1 throw ratio, designed for use with the Sharp XP-X141Q and XP-X171Q professional installation laser DLP projectors. This lens covers extreme-long-throw projection scenarios including large auditoriums, concert halls, projection booths, and any venue where the projector must be positioned at the back of the room or at significant distance from the screen. Motorized zoom, focus, and lens shift provide complete remote optical adjustment capability after installation.

Product Description

The XP-62ZL is the longest-throw lens in the Sharp XP motorized lens series, extending the projection distance range beyond what the XP-61ZL (1.40-2.11:1) can cover. At a 100-inch wide screen (approximately 7.2 ft in 16:10), the XP-62ZL positions the projector between approximately 15.1 and 28.9 feet from the screen surface, making it the appropriate choice for projection booth installations or large venues where shorter-throw lenses cannot reach the required image size from the available mounting position.

The lens mounts directly to the XP-X141Q or XP-X171Q projector body and uses a focal length range starting at f=37.23mm (full range specifications subject to manufacturer publication). Like all XP series lenses, it is secured with the lens anti-theft screw and all adjustments are motorized for remote operation. The XP-62ZL is sold separately from the projector body and must be specified as a distinct line item in AV integration projects.

Key Features

• 2.10-4.00:1 Throw Ratio — The longest throw in the XP lens series, covering extreme-distance projection for large auditoriums and projection booth installations.
• Motorized Zoom and Focus — All optical adjustments are motorized and remotely operable after projector installation at ceiling or booth height.
• Motorized Lens Shift — Horizontal and vertical optical offset for precise image placement without digital keystone correction.
• Compatible with XP-X141Q and XP-X171Q — Designed exclusively for Sharp XP-X series professional installation laser DLP projectors.
• F:1.90-2.44 Optical Formula — Focal length starting at f=37.23mm, F:1.90-2.44 aperture range.
• Anti-Theft Lens Lock — Lens anti-theft screw for permanent installations in large public venue environments.

Typical Applications

• Large auditorium and concert hall projection booth
• House of worship with balcony or rear projection position
• Government facility and command center
• Large multi-purpose venue with fixed rear projection distance
• Higher education lecture hall with rear-mounted projection

Technical Specifications

Frequently Asked Questions

Which projectors is the XP-62ZL compatible with?
The XP-62ZL is designed for use only with the Sharp XP-X141Q and XP-X171Q professional installation projectors.

When should I choose the XP-62ZL over the XP-61ZL?
Use the XP-62ZL when the projector must be placed further from the screen than the XP-61ZL (1.40-2.11:1) allows. The XP-62ZL (2.10-4.00:1) is the correct choice for projection booth setups, balcony-mounted installations, or any situation requiring a throw ratio above 2.11:1.

Is this lens sold with the projector?
No. The XP-62ZL is sold separately from the XP-X141Q and XP-X171Q projector bodies and must be ordered as a separate line item.

Can this lens be used in multi-projector blended installations?
Yes. When multiple projectors are configured in an edge-blended array at significant throw distances, the XP-62ZL can be used on each unit to match the required projection geometry.

Where can I purchase the XP-62ZL?
Available at Creation Networks, an authorized Sharp commercial AV reseller.
