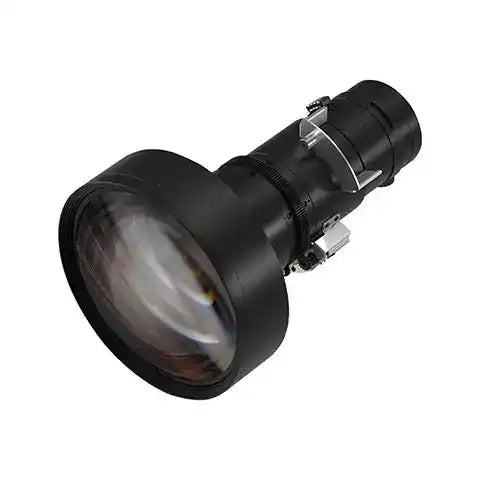

Sharp XP-59ZL – 0.74-1.08 Standard-Throw Motorized Zoom Lens

Product Overview

The Sharp XP-59ZL is a motorized zoom lens with a 0.74-1.08:1 throw ratio, designed for use with the Sharp XP-X141Q and XP-X171Q professional installation projectors. This standard-throw lens is appropriate for medium-depth venues where the projector is positioned at a moderate distance from the screen—typically conference rooms, classrooms, and mid-size auditoriums. Motorized zoom, focus, and lens shift allow all adjustments to be made remotely after the projector is ceiling-mounted, reducing the need for physical access during commissioning and fine-tuning.

Product Description

The XP-59ZL is part of the Sharp XP motorized lens series, which spans throw ratios from 0.31:1 (XP-57UL ultra-short throw) to 4.00:1 (XP-62ZL long throw). The XP-59ZL covers the standard-throw range most commonly used in rooms where the projector is installed at a ceiling-mount distance equivalent to approximately 0.74 to 1.08 times the screen width. At a 100-inch screen width, this positions the projector approximately 6.2 to 9.1 feet from the screen surface.

The lens weighs 6.8 lbs (3.06 kg) and mounts directly to the XP-X141Q or XP-X171Q projector body. All zoom, focus, and shift adjustments are motorized and controllable via the projector's remote control, front panel, or network management software (ProAssist, NaViSet). The XP-59ZL is sold separately from the projector body and must be specified as a separate line item in AV system designs.

Key Features

• 0.74-1.08:1 Throw Ratio — Covers standard-throw projection distances for most corporate and educational venue sizes without requiring ultra-short or long-throw configurations.
• Motorized Zoom and Focus — All optical adjustments are motorized for remote operation after ceiling installation, eliminating the need for a lift or ladder during setup.
• Motorized Lens Shift — Horizontal and vertical lens shift allows off-axis projector placement while maintaining a geometrically correct image without keystone correction.
• Compatible with XP-X141Q and XP-X171Q — Designed exclusively for the Sharp XP-X series high-brightness laser DLP projector bodies.
• F:2.02-2.33 Optical Formula — f=13.47-16.67mm focal length range, F:2.02-2.33 aperture, 6.8 lbs / 3.06 kg weight.
• Tool-Free Mounting — Anti-theft lens lock screw secures the lens to the projector body during installation.

Typical Applications

• Corporate conference room and boardroom
• Higher education classroom and lecture hall
• Government and commercial meeting space
• Multi-purpose room standard front projection
• House of worship main screen projection

Technical Specifications

Frequently Asked Questions

Which projectors is the XP-59ZL compatible with?
The XP-59ZL is designed for the Sharp XP-X141Q and XP-X171Q professional installation projectors only. It is not compatible with other Sharp projector lines including the P or M series.

Is the lens included with the XP-X141Q or XP-X171Q projector?
No. Both projectors ship as lens-body only. The XP-59ZL must be purchased separately and specified at the time of system design.

How is the throw ratio of 0.74-1.08:1 applied to room planning?
Multiply the screen width by the throw ratio to get the required projection distance. For a 100-inch wide screen (approximately 7.2 ft wide in 16:10 format), the XP-59ZL requires the projector to be placed between 5.3 and 7.8 feet from the screen surface.

Can lens shift replace keystone correction?
For most installation offset scenarios, motorized lens shift produces a geometrically superior image compared to electronic keystone correction because it optically offsets the image rather than digitally distorting it. Keystone should be used only when lens shift range is insufficient.

Where can I purchase the XP-59ZL?
Available at Creation Networks, an authorized Sharp commercial AV reseller.
