Sennheiser XSW IEM SET B – Wireless In-Ear Monitoring System

Product Overview

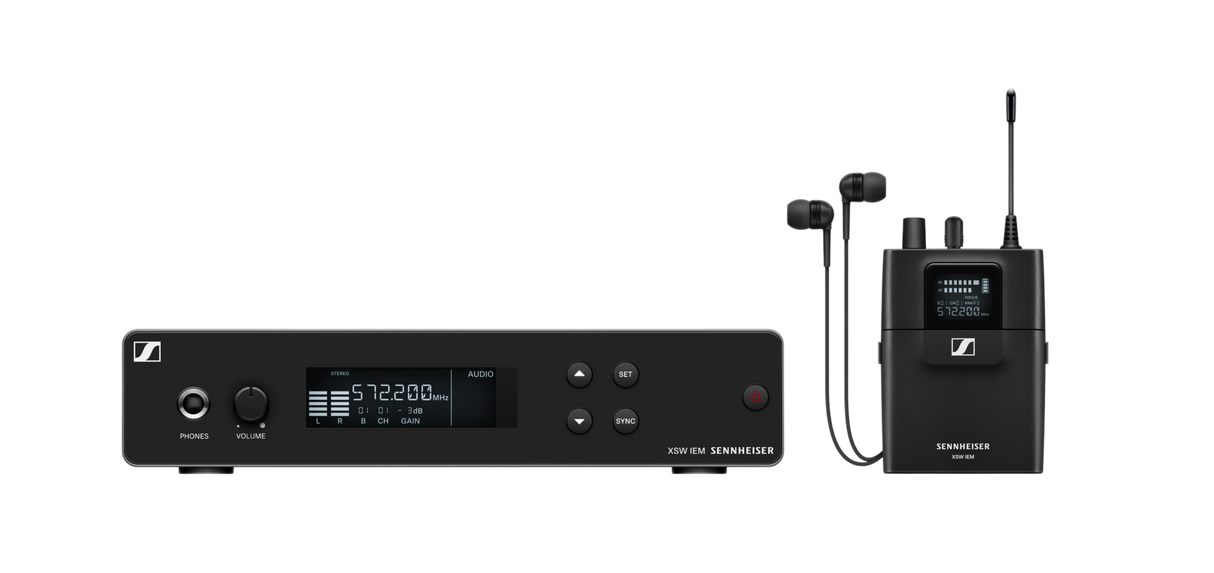

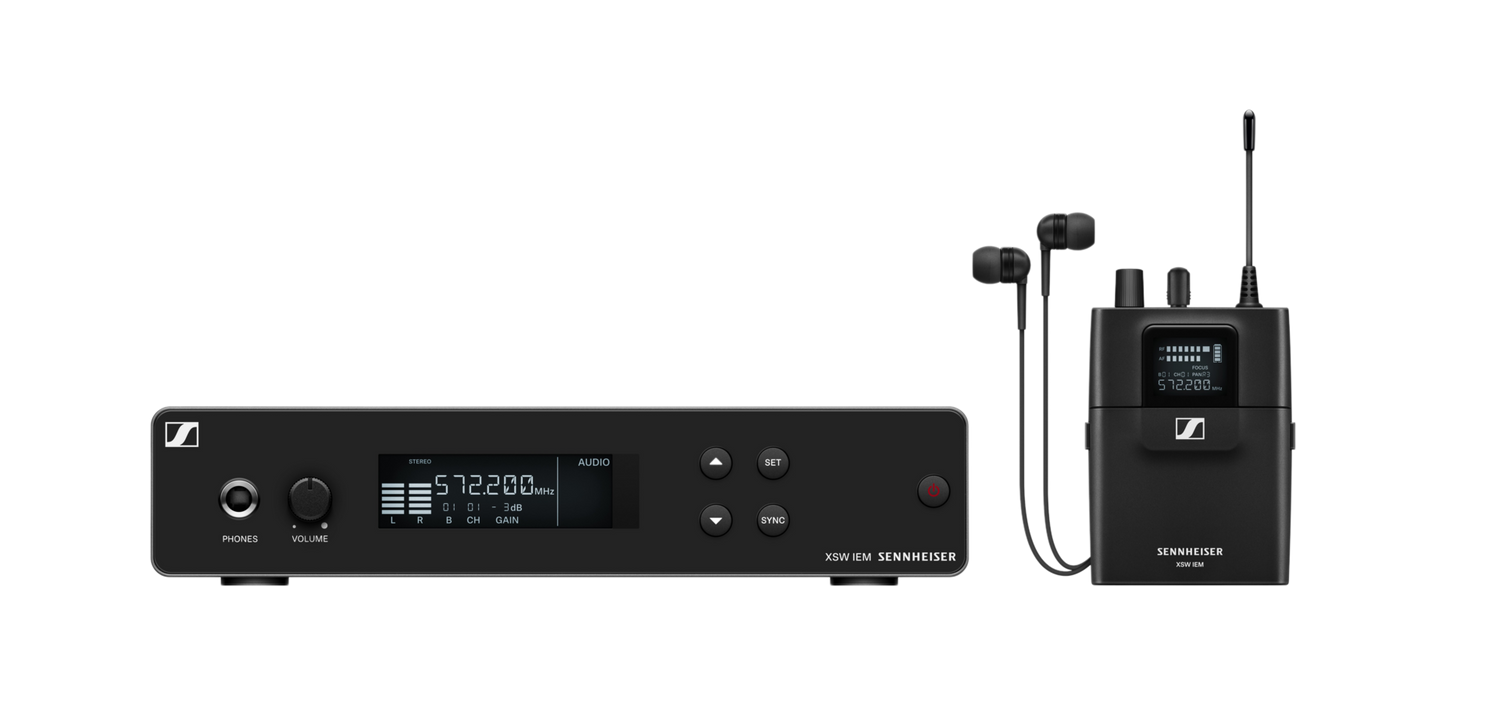

The Sennheiser XSW IEM SET (B band, 572-596 MHz) is a complete wireless in-ear monitoring system for stage performers, houses of worship, and broadcast monitoring. This XSW IEM wireless in-ear monitoring system bundles the XSW IEM SR stereo transmitter, XSW IEM EK bodypack receiver, IE 4 in-ear headphones, rack mount kit, and power supply in one starter set. It gives performers and AV teams a UHF stereo personal monitor mix without the cabling of a wedge setup. The kit is built for fast deployment in live production and worship audio environments.

Product Description

This XSW IEM set delivers a rack-mountable transmitter and a belt-worn receiver that together provide a personal monitor mix over UHF wireless. The XSW IEM SR transmitter mounts in a standard equipment rack using the included rack mount kit, while the XSW IEM EK receiver runs on two AA batteries for roughly six hours per set. The system operates in the B frequency range (572-596 MHz) with a switching bandwidth of up to 24 MHz, organized into frequency banks with aligned channels for multi-system coordination.

Audio is transmitted in FM stereo with an audio frequency response of 45 Hz to 15 kHz and a signal-to-noise ratio of at least 88 dB. The receiver includes a high-boost EQ of +10 dB at 13 kHz and a built-in limiter to protect the performer's hearing. The included IE 4 in-ear headphones use a dynamic transducer with a 40 Hz to 20 kHz frequency response and a maximum SPL of 106 dB. This combination makes the set suitable for vocalists, instrumentalists, and presenters who need a clear, mobile monitor feed. For AV integration, the rack-mount transmitter fits cleanly into existing live sound and broadcast racks. Sennheiser supplies the IE 4 earphones and power supply in the box so the system is ready to coordinate and deploy. Replacement ear adapters and accessories are available to maintain fit and hygiene across shared use.

Key Features

• Complete Starter Set — The kit includes the XSW IEM SR transmitter, XSW IEM EK receiver, IE 4 earphones, rack mount kit, and power supply for immediate deployment.
• UHF B-Band Operation — The system operates in the 572-596 MHz range with up to 24 MHz switching bandwidth for flexible frequency coordination.
• FM Stereo Transmission — Audio is sent in FM stereo with a 45 Hz to 15 kHz response and a signal-to-noise ratio of at least 88 dB.
• Built-In Limiter and EQ — The receiver provides a +10 dB high boost at 13 kHz and a limiter to help protect the performer's hearing.

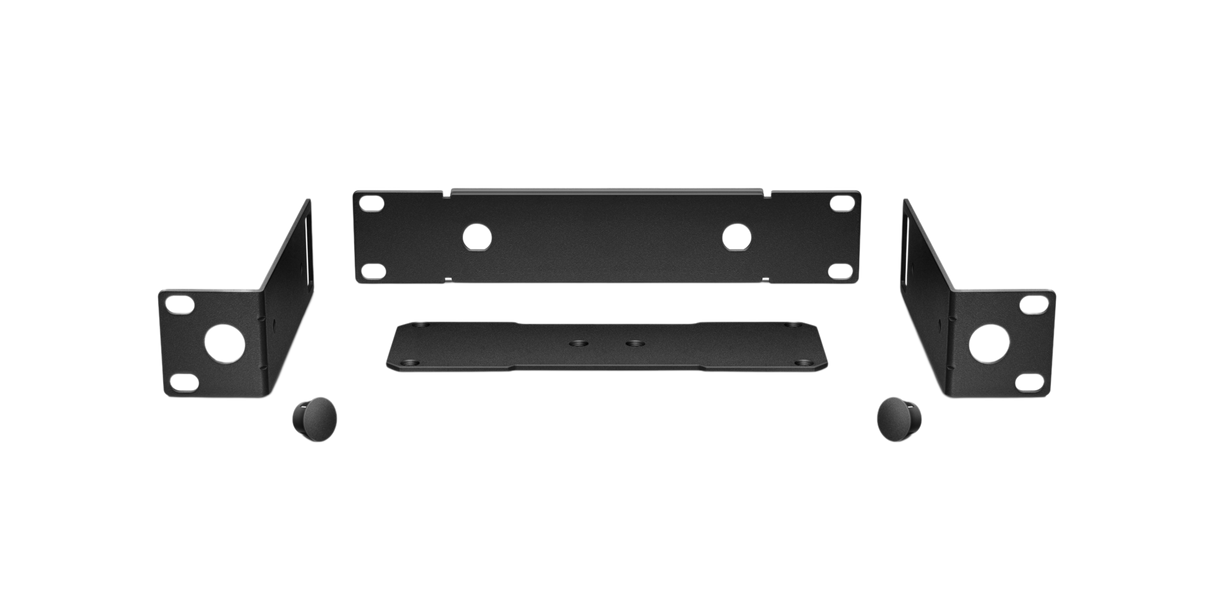

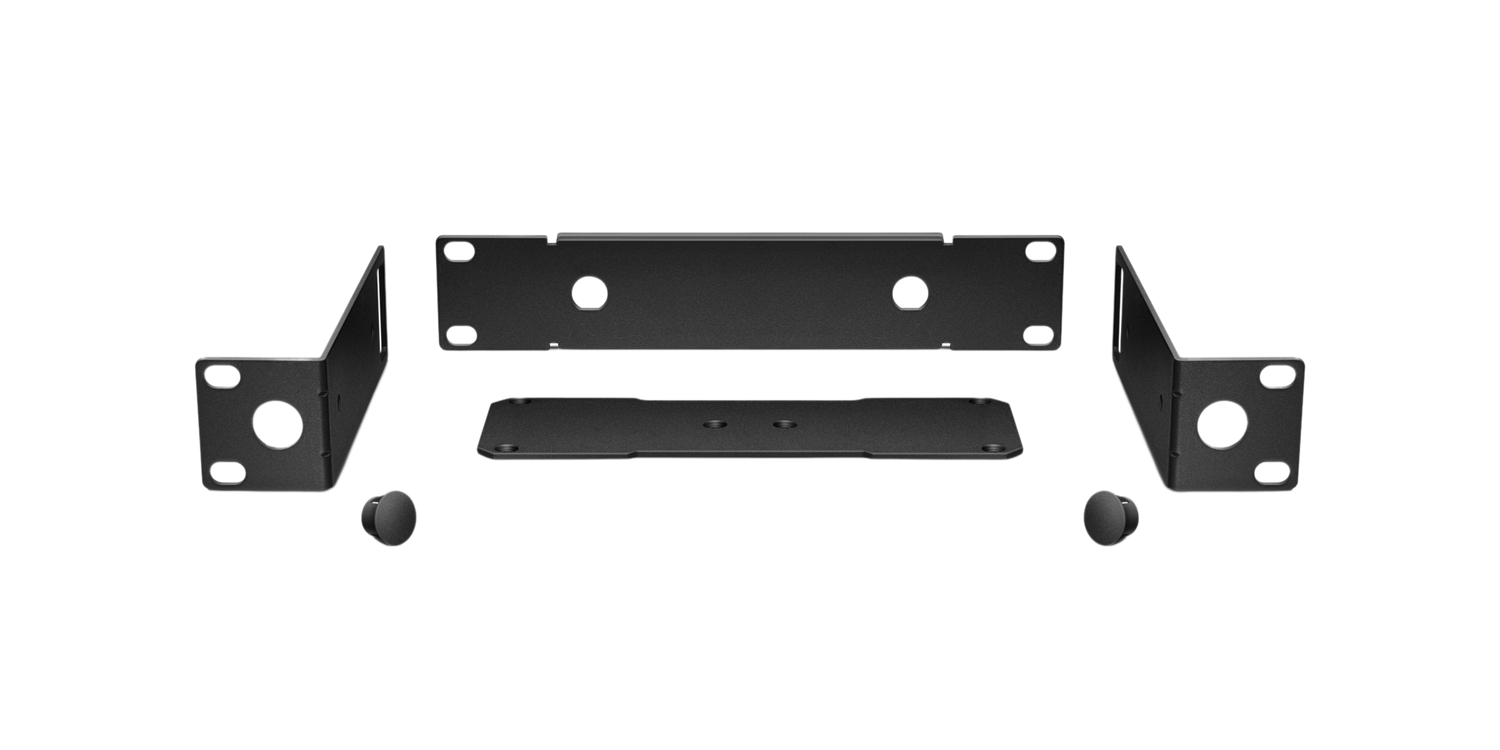

• Rack-Mountable Transmitter — The included rack mount kit lets the XSW IEM SR install cleanly into a standard equipment rack.
• IE 4 In-Ear Headphones — The bundled IE 4 earphones use a dynamic transducer rated 40 Hz to 20 kHz with up to 106 dB SPL.

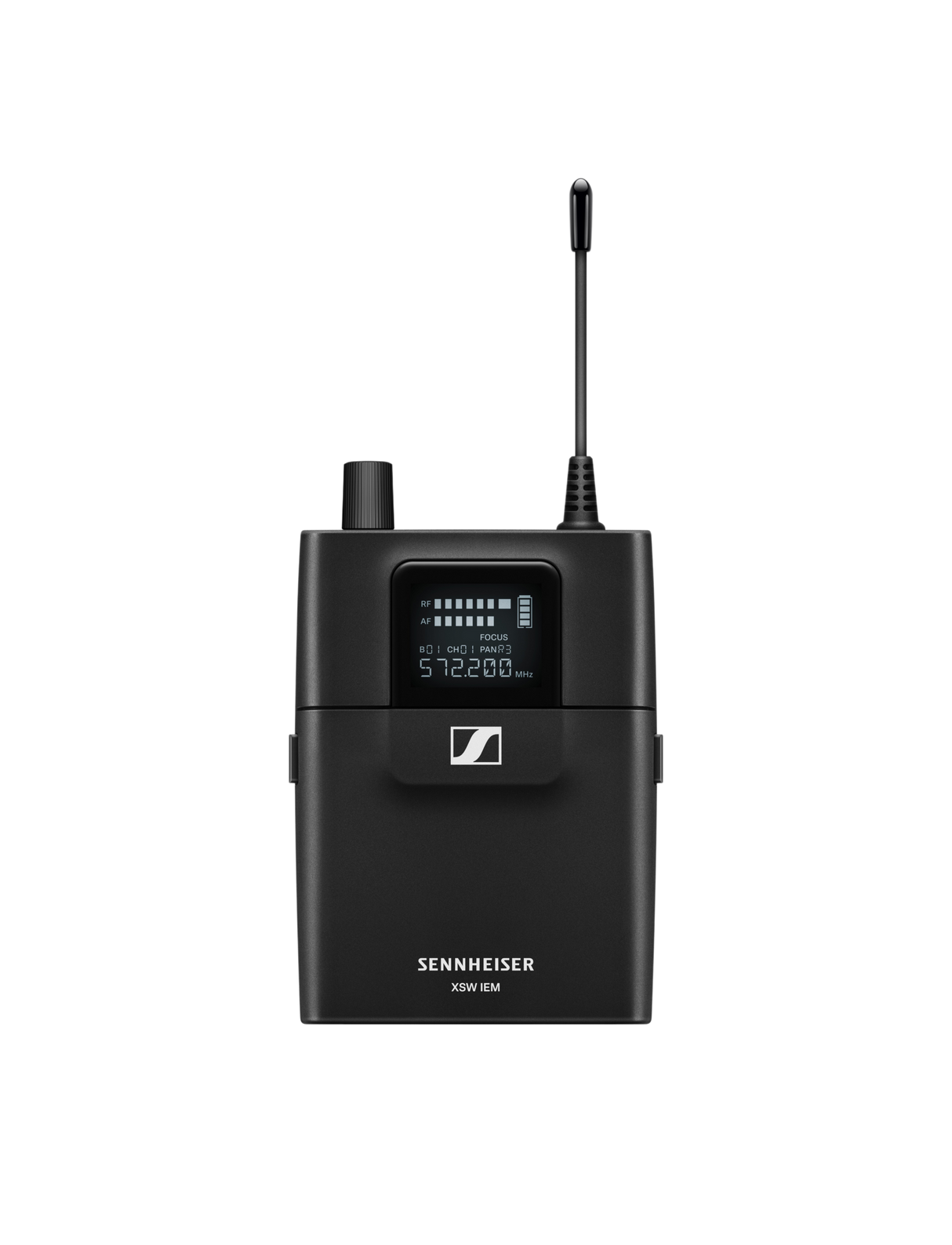

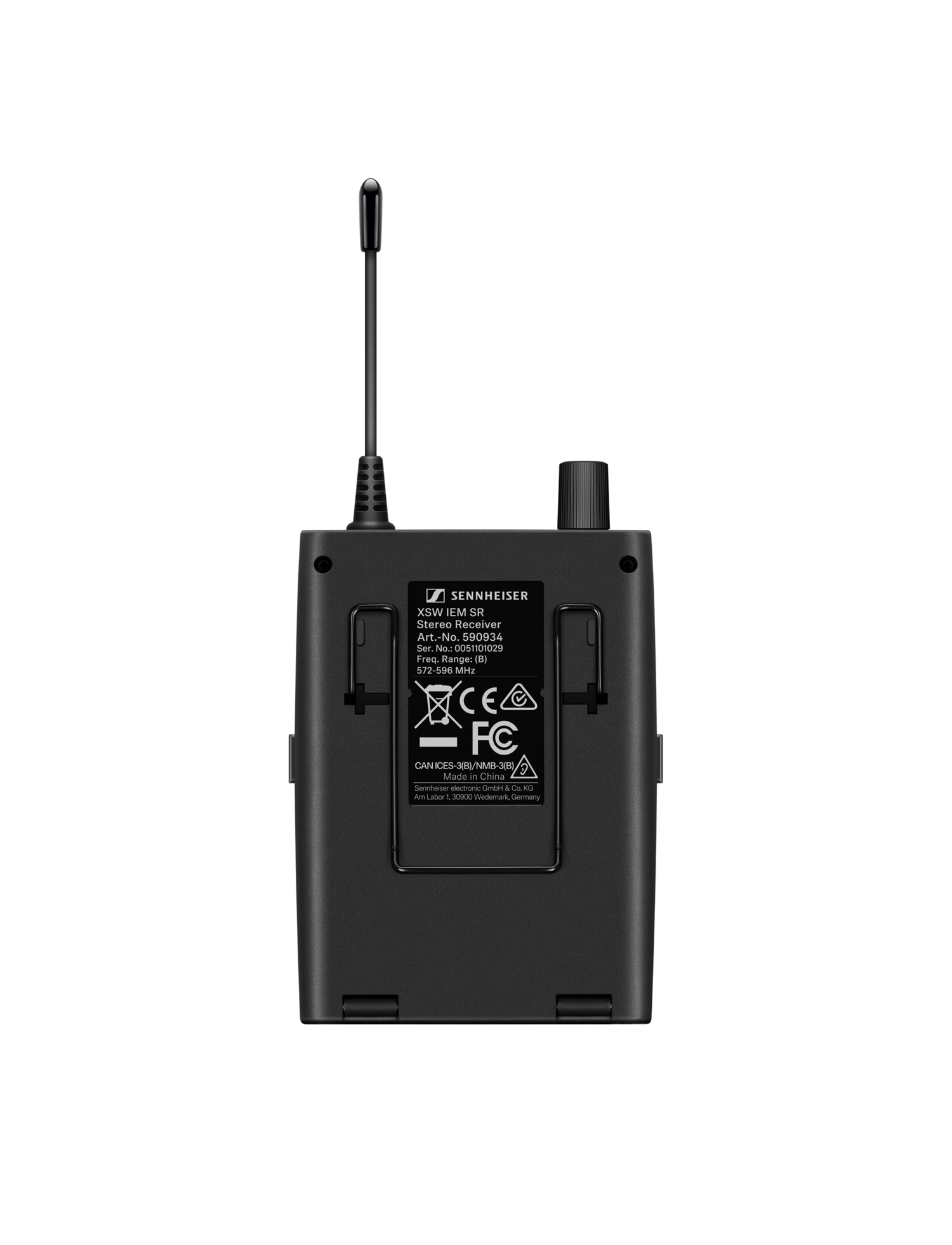

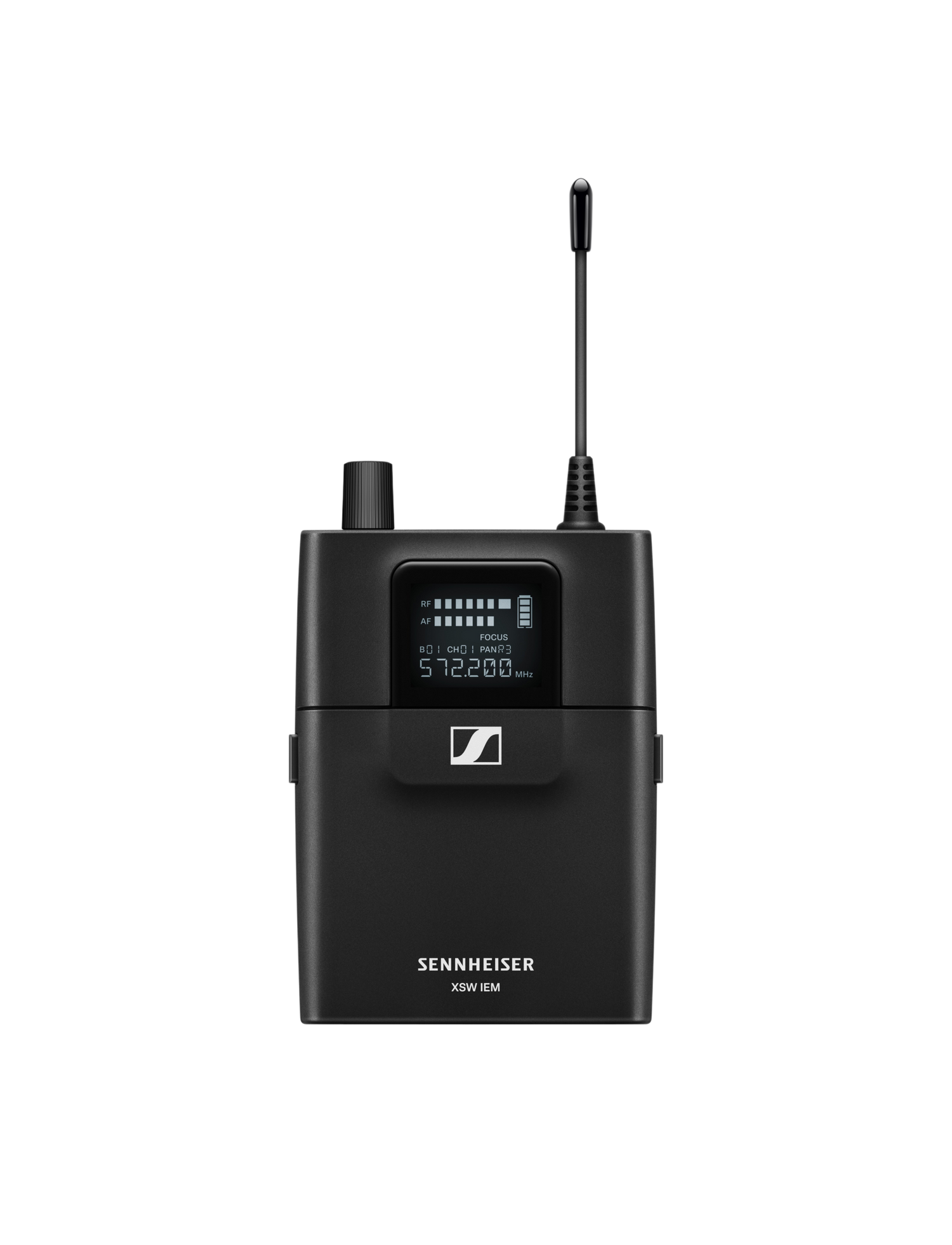

• Portable Receiver — The bodypack receiver runs about six hours on two AA batteries for a full performance set.

Typical Applications

• House of worship stages and platform monitoring
• Auditorium and live performance monitoring
• Broadcast studio talent monitoring
• Multi-purpose rooms hosting live music or presentations
• Commercial meeting spaces with stage presentation needs

Technical Specifications

Frequently Asked Questions

What is included in the XSW IEM SET?

The set includes the XSW IEM SR stereo transmitter, the XSW IEM EK bodypack receiver, a pair of IE 4 in-ear headphones, a rack mount kit, and a power supply. It is a complete starter system ready to coordinate and deploy.

Which frequency range is this version?

This is the B band variant, operating from 572 to 596 MHz with a switching bandwidth of up to 24 MHz. Confirm the B band is legal and clear for wireless use in your location before deployment.

Can the transmitter be rack-mounted?

Yes. The included rack mount kit lets the XSW IEM SR transmitter install into a standard equipment rack alongside other live sound or broadcast gear.

How long does the receiver run on batteries?

The XSW IEM EK receiver runs approximately six hours on two AA batteries, which covers a typical performance or service.

Will it integrate with my existing audio system?

The XSW IEM SR transmitter accepts a stereo input from a mixer or monitor send, so it integrates into standard live sound, worship, and broadcast signal chains. For integration support, contact Creation Networks at https://creationnetworks.net.

Does it protect hearing at high levels?

The receiver includes a built-in limiter and a +10 dB high-boost EQ at 13 kHz, helping manage loud peaks while keeping detail in the monitor mix.

What warranty applies?

Sennheiser wireless systems are covered by the manufacturer's warranty. Reach out to Creation Networks at https://creationnetworks.net for current warranty terms and support.
