Product Overview
The Sennheiser XSW-D PORTABLE BASE SET is a compact digital wireless set for portable and mobile audio applications, including camera-mounted recording, portable interviews, and small event presentations. The set operates on license-free 2.4 GHz digital wireless and includes a bodypack transmitter with 3.5 mm input and a portable receiver with 3.5 mm TRS output. USB charging and automatic channel selection provide fast deployment without RF coordination. At $269, it is a straightforward entry point into the XSW-D digital platform for mobile audio needs.
Product Description
The XSW-D PORTABLE BASE SET provides the transmitter and receiver components of the XSW-D digital platform in a configuration oriented toward portable and camera-based audio applications. The bodypack transmitter accepts a 3.5 mm input for use with any compatible lavalier or headset microphone, and the compact receiver outputs via 3.5 mm TRS for connection to camera audio inputs, portable audio recorders, or compact mixers. This makes the set useful as a base unit for building a custom portable wireless setup — the microphone is purchased separately, allowing users to select the appropriate lavalier or headworn capsule for their application. The 2.4 GHz digital wireless link delivers uncompressed audio with low latency and automatic channel management, eliminating the frequency scanning and coordination associated with UHF systems. Both transmitter and receiver are USB-rechargeable with a charging cable included. The PORTABLE BASE SET is the correct choice for run-and-gun video production, one-person broadcast crews, mobile interview setups, and any portable application where a complete lavalier or headset set is not needed because the microphone is already available.
Key Features
- Portable Receiver — 3.5 mm TRS output for cameras, portable recorders, and compact audio systems.
- Bodypack Transmitter — 3.5 mm input; compatible with lavalier and headset microphones (not included).
- 2.4 GHz License-Free Digital Wireless — Automatic channel selection; no frequency licensing or coordination.
- Uncompressed Digital Audio — Clean signal with low latency for live and recorded applications.
- USB Charging — Rechargeable transmitter and receiver; USB cable included.
- Microphone Not Included — Base set for users with an existing microphone; add ME 2-II, ME 3-II, or other compatible mic separately.
- Compact Form Factor — Designed for portable, handheld, and camera-mounted audio applications.
Technical Specifications
| Wireless Technology | 2.4 GHz digital (license-free) |
| Audio | Uncompressed digital |
| Transmitter Input | 3.5 mm miniature jack |
| Receiver Output | 3.5 mm TRS |
| Power | USB rechargeable (both TX and RX) |
| Microphone | Not included (sold separately) |

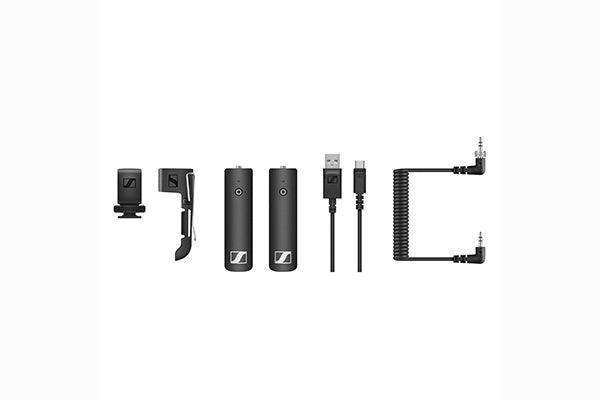

| Kit Contents | XSW-D bodypack TX, XSW-D portable RX, USB charging cable |
