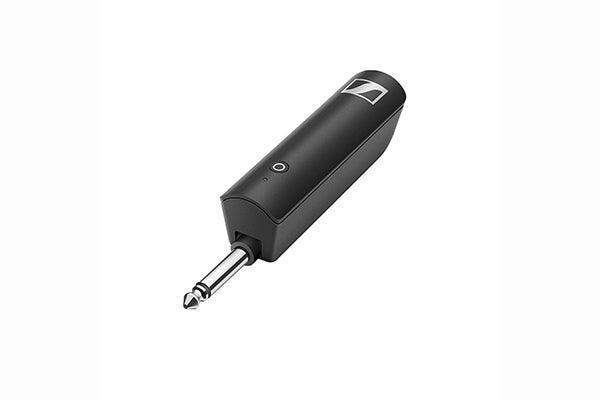

Sennheiser XSW-D INSTRUMENT TX XS Wireless Digital transmitter with jack (6.3mm, 1/4") input and (1) USB charging cable - 508496
Sennheiser XSW-D INSTRUMENT TX XS Wireless Digital transmitter with jack (6.3mm, 1/4") input and (1) USB charging cable - 508496 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sennheiser XSW-D INSTRUMENT TX XS Wireless Digital transmitter with...
Product Overview
The Sennheiser XSW-D INSTRUMENT TX is the standalone instrument transmitter component for the XSW-D digital wireless platform, featuring a 6.3 mm mono jack input that connects directly to a guitar or bass output jack. Sold individually for custom configurations, component replacement, or building a multi-channel instrument wireless setup with separately sourced XSW-D receivers. At $179.95, it provides the transmitter half of a digital wireless instrument link operating on license-free 2.4 GHz with USB charging.
Product Description
The XSW-D INSTRUMENT TX is the plug-on transmitter component of the XSW-D instrument wireless system, available as a standalone unit for building custom wireless configurations, expanding an existing XSW-D setup, or replacing a transmitter. The 6.3 mm mono jack input plugs directly into the guitar or bass output jack, eliminating the need for a separate bodypack or belt-worn transmitter. The compact transmitter body hangs from the instrument's output jack, keeping the cable path short and the stage uncluttered. The XSW-D platform operates on license-free 2.4 GHz digital wireless with automatic channel management, delivering uncompressed audio with low latency appropriate for live instrument performance. USB-rechargeable battery is charged via the included USB cable, providing approximately 5 hours of operation per charge. The INSTRUMENT TX is compatible with any XSW-D instrument receiver (INSTRUMENT RX or PEDALBOARD RX) for standard wireless guitar and bass links, or with other compatible XSW-D receivers as part of a custom digital wireless configuration.
Key Features
- 6.3 mm Mono Jack Input — Plugs directly into guitar or bass output jack; no bodypack or separate cable required.
- Standalone Transmitter — Component purchase for custom builds, expansion, or replacement in existing XSW-D setups.
- 2.4 GHz License-Free Digital Wireless — No frequency licensing; automatic channel management for instant deployment.
- Uncompressed Digital Audio — Low latency for live instrument performance.
- USB Charging — Rechargeable battery; USB cable included.
- XSW-D Platform Compatible — Pairs with XSW-D INSTRUMENT RX, PEDALBOARD RX, and other compatible XSW-D receivers.
Technical Specifications
| Wireless Technology | 2.4 GHz digital (license-free) |
| Audio | Uncompressed digital |
| Input | 6.3 mm mono jack (plug-on) |
| Power | USB rechargeable |
| Compatible Receivers | XSW-D INSTRUMENT RX, XSW-D PEDALBOARD RX (and compatible XSW-D RX units) |
