Sennheiser TeamConnect Ceiling M Plus F-W – Flush-Mount Microphone Array

Product Overview

The Sennheiser TeamConnect Ceiling M Plus F-W is a beamforming ceiling microphone designed for medium and large conference rooms where integrators need a recessed, low-profile install in drywall or hard ceilings. As a flush-mount ceiling microphone, the F-W variant sits level with the ceiling plane for a discreet finish while delivering reliable voice pickup up to 4.3 m across rooms up to 60 m². Patented automatic dynamic beamforming makes this conference room ceiling microphone track active talkers and adapt to changing room layouts without manual zone tuning. For AV designers specifying a beamforming ceiling microphone with platform-native configuration, the F-W combines 15 German-engineered capsules with PartnerLink integration and DeviceHub cloud management.

Product Description

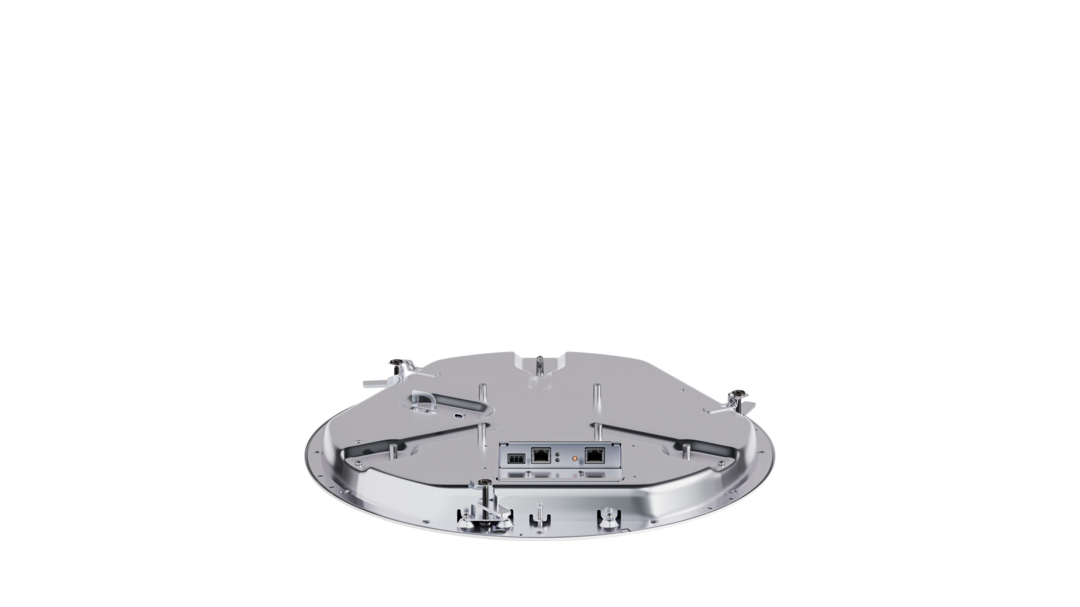

The TeamConnect Ceiling M Plus F-W recesses directly into drywall and hard ceilings using the included front plate and flush mount kit, sitting flush with the ceiling plane rather than suspending below it. The bundle ships with a Chicago plenum connection box cover plate and drilling templates, so integrators can mark the opening accurately and meet plenum-rated installation requirements in commercial ceilings. Patented automatic dynamic beamforming steers adaptive lobes toward active talkers, while enhanced exclusion zones suppress predictable noise from HVAC, displays, and corridors to keep pickup focused on the meeting table. Configuration is handled through PartnerLink directly inside Q-SYS Designer Software, with additional AV platform workflows planned, shortening commissioning time on site. Once deployed, DeviceHub provides browser-based cloud management for monitoring, configuring, and diagnosing units across multiple rooms and buildings. Audio leaves the unit through a single 3-pin terminal output for analog integration, and wiring supports single-cable, split-mode, and daisy-chain topologies to suit different rack and ceiling routing plans. Automatic speaker-position detection passes talker coordinates to connected camera systems for accurate framing in video conferencing, and TruVoiceLift reinforces talkers within the room for local speech intelligibility without a separate microphone system. A browser-based local user interface (LUI) lets technicians set up and control the array without installing software, and an energy-saving standby mode reduces draw during idle periods. Teams comparing ceiling options can also review the suspended-mount Sennheiser TeamConnect Ceiling Medium for rooms where a pendant install is preferred. With a 5-year warranty (2 years AMER) and commercial-grade construction, the F-W is built for long-term deployment in corporate meeting environments.

Key Features

• PartnerLink configuration — Configure the microphone directly inside Q-SYS Designer Software and supported AV platform workflows, shortening commissioning time.
• DeviceHub cloud management — Monitor, configure, and diagnose deployed units remotely across rooms, buildings, and sites from one browser-based platform.
• Patented automatic dynamic beamforming — Adaptive beams track active talkers and adjust to changing room layouts for consistent speech capture.
• Enhanced exclusion zones — Suppress predictable noise from HVAC, displays, and hallways to improve pickup accuracy and camera-tracking reliability.
• 15 German-engineered capsules — A precision pre-polarised condenser array delivers reliable voice pickup up to 4.3 m across rooms up to 60 m².
• Flush-mount integration — Recesses into drywall and hard ceilings using the included front plate, flush mount kit, and Chicago plenum cover plate for a discreet finish.
• TruVoiceLift — Reinforces talkers naturally within the room for local speech intelligibility without a separate microphone system.
• Automatic speaker-position detection — Talker coordinates drive camera tracking for accurate framing in video conferencing systems.
• Flexible connectivity — Supports single-cable, split-mode, and daisy-chain wiring with a 3-pin terminal output for analog integration.
• Browser-based setup (LUI) — A local web interface allows configuration and control without installing software.

Typical Applications

• Conference rooms
• Boardrooms
• Training rooms
• Multi-purpose and divisible rooms
• All-hands rooms
• Commercial meeting spaces

Technical Specifications

Specifications sourced from Sennheiser (TeamConnect Ceiling M Plus F-W, Art. No. 700507).

Frequently Asked Questions

Which AV platforms does the TeamConnect Ceiling M Plus F-W integrate with?
The microphone supports PartnerLink configuration directly inside Q-SYS Designer Software, with additional AV platform workflows planned. Audio is delivered over a 3-pin analog terminal output, and DeviceHub provides browser-based cloud management for deployed units.

How does the flush-mount F-W version install?
The F-W recesses into drywall and hard ceilings using the included front plate and flush mount kit so the unit sits level with the ceiling plane. The bundle also includes a Chicago plenum connection box cover plate and drilling templates to mark the opening and support plenum-rated commercial installs.

What room size and pickup range does it cover?
It provides voice pickup up to 4.3 m and is rated for rooms up to 60 m², making it suitable for medium and large conference rooms, boardrooms, and training spaces.

Can multiple units be managed across several rooms?
Yes. DeviceHub lets AV and IT teams monitor, configure, and diagnose multiple units remotely across rooms, buildings, and sites from a single browser-based platform.

Does it support camera tracking for video conferencing?
Yes. Automatic speaker-position detection passes talker coordinates to connected camera systems so the active talker is framed accurately during video calls.

What warranty and support are included?
The TeamConnect Ceiling M Plus F-W carries a 5-year warranty (2 years in the AMER region). For procurement and project support, order at Creation Networks.
