Sennheiser Supercardioid condenser capsule head for wireless systems with Shure interface, black (008723)
Sennheiser Supercardioid condenser capsule head for wireless systems with Shure interface, black (008723) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sennheiser Supercardioid condenser capsule head for wireless system...
Product Overview

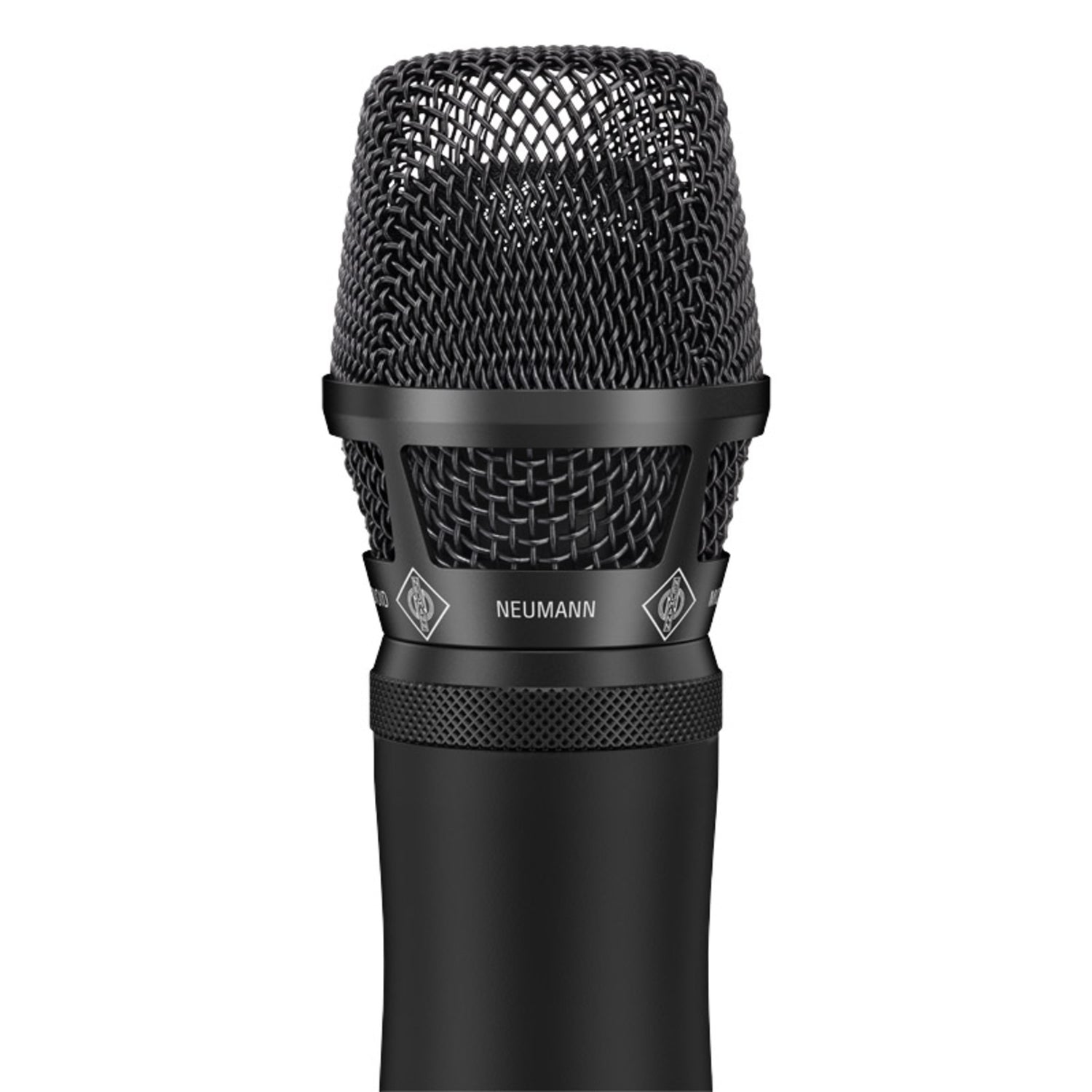

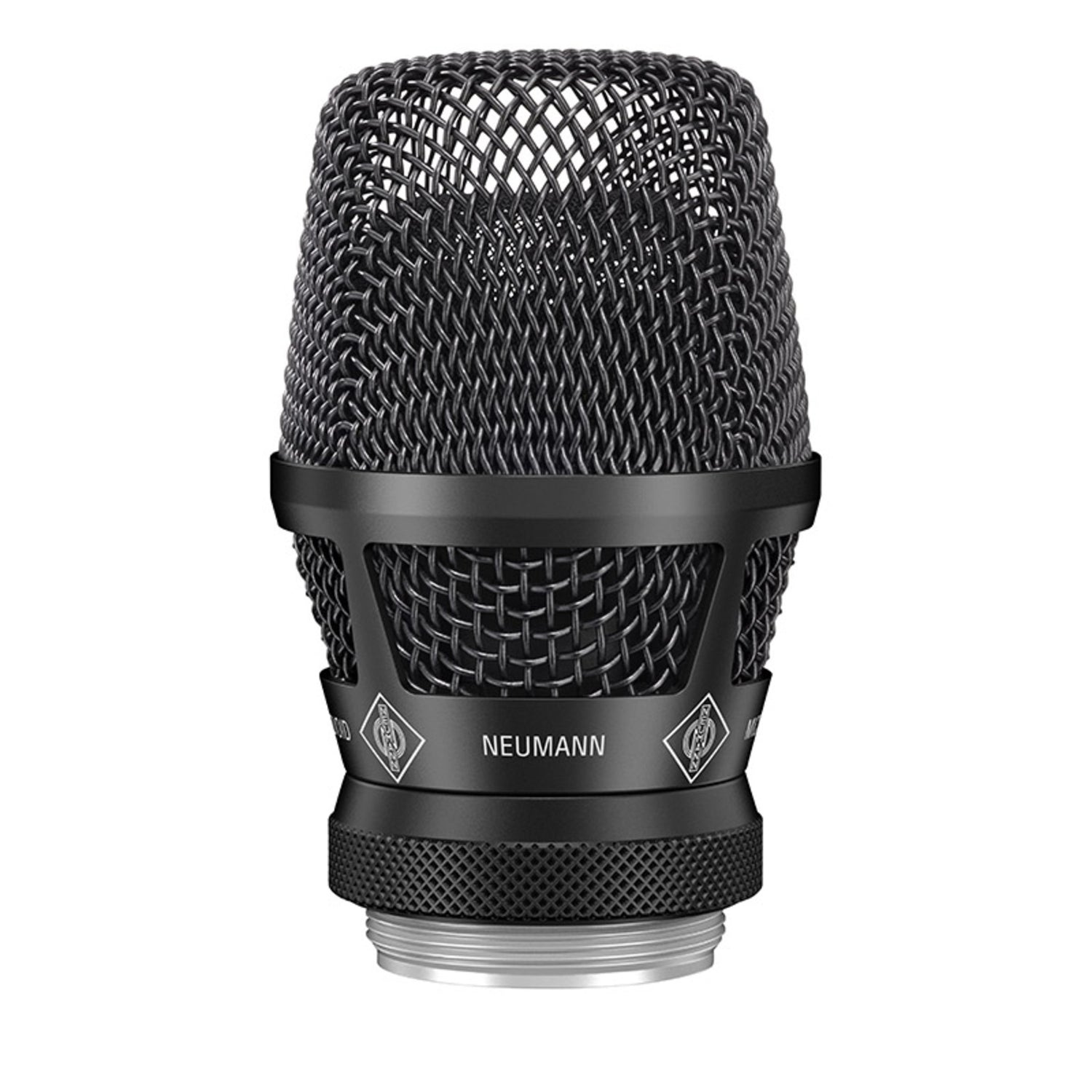

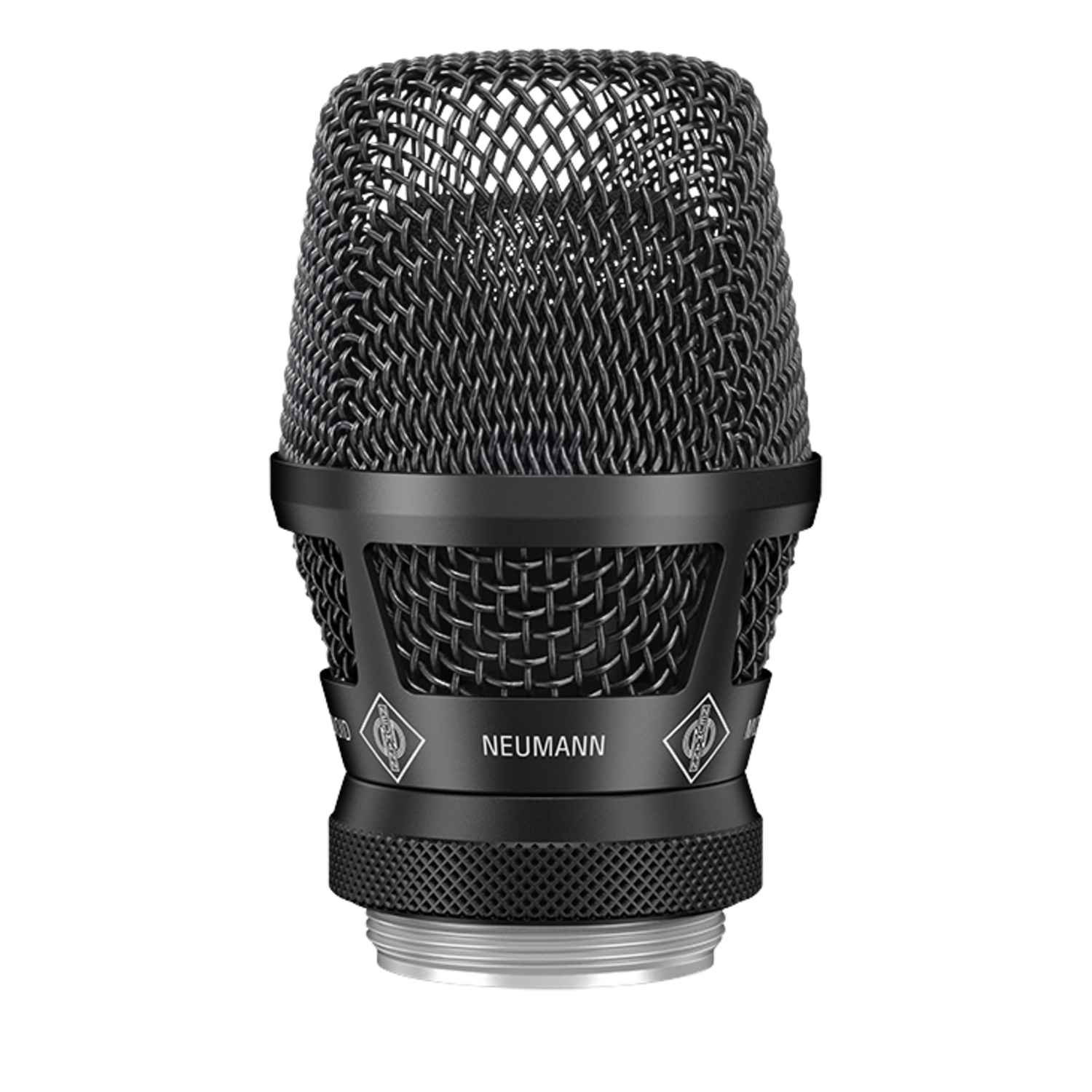

The Neumann KK 105 U Supercardioid Condenser Capsule (Black) — SKU 008723 — is a professional wireless capsule head for Shure-compatible third-party handheld transmitters. It carries the same K 105-derived supercardioid condenser element as the KMS 105 wired stage microphone, providing tighter directional control, higher gain before feedback, and 150 dB SPL handling compared to the cardioid KK 104 U variant. Designed for high-SPL live vocal, broadcast, and stage wireless applications on Shure platform transmitters.
Product Description

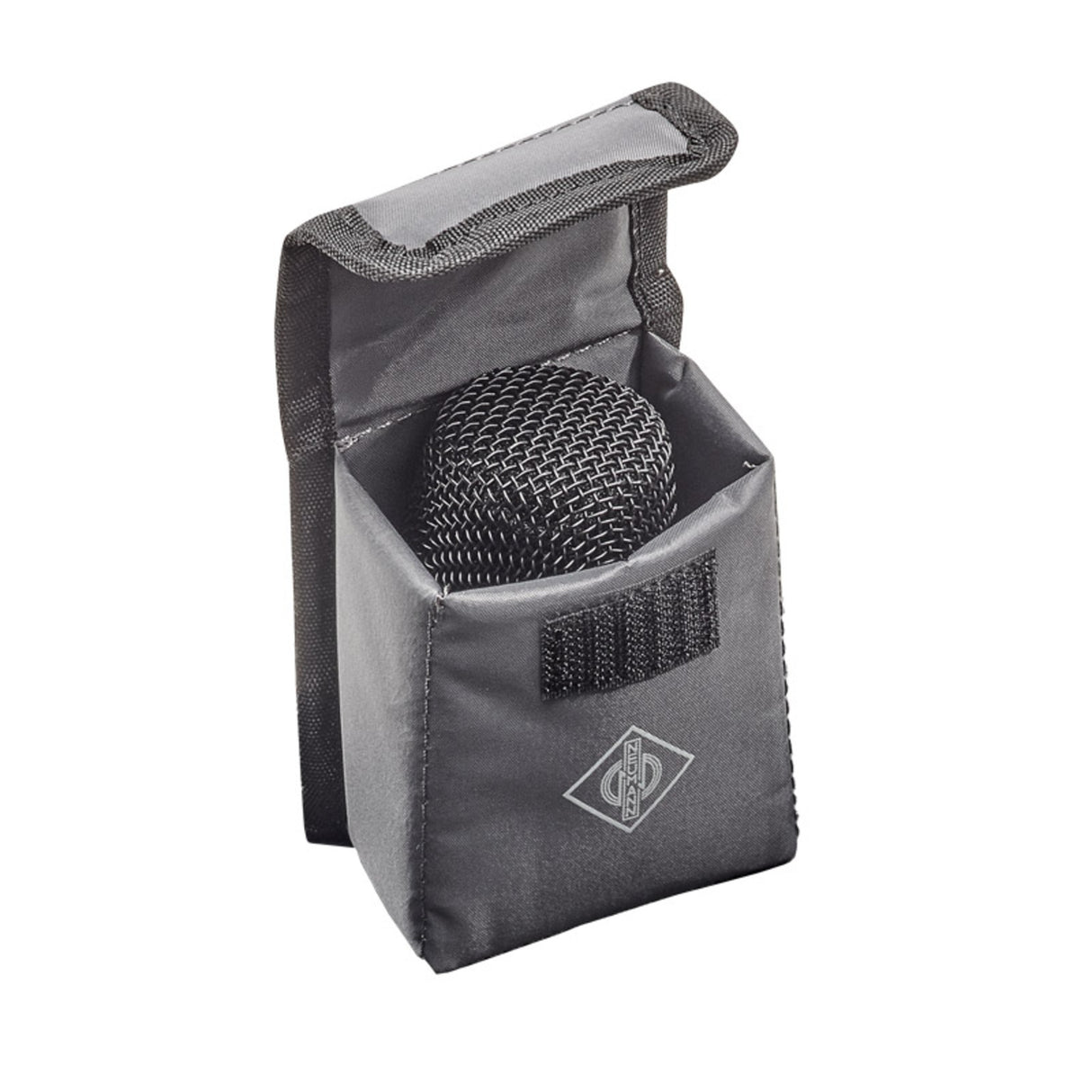

The KK 105 U (black) brings Neumann’s KMS 105 supercardioid element to Shure-compatible wireless transmitters. Its single polar pattern design maintains consistent uniformity from 80 Hz to 20 kHz, providing stable off-axis rejection at all frequencies for multi-channel live and broadcast wireless systems. Max SPL is 150 dB (THD 0.5%). Multi-level wire gauze acoustic filter provides pop protection while preserving open high-frequency response, and expanded-pore foam protects against moisture. The black finish matches black-body Shure transmitters. Includes a large nylon carry bag. Special-order item.
Key Features
- Neumann KMS 105 Supercardioid Element — K 105 condenser capsule; Shure interface for third-party transmitter compatibility.
- Shure-Compatible Interface — Fits third-party Shure-interface handheld wireless transmitters.
- Supercardioid Polar Pattern — Tight directional control and maximum side/rear rejection for high gain before feedback.
- 150 dB Max SPL (THD 0.5%) — Handles high-SPL vocal and stage sources without distortion.
- Multi-Level Wire Gauze Acoustic Filter — Pop protection with minimal high-frequency attenuation.
- Moisture-Resistant Foam — Expanded-pore foam guards against humidity.
- Black Finish — Matches black-body third-party transmitters.
- Includes Nylon Carry Bag — Large bag for capsule and accessories.
Typical Applications
- House of worship lead vocal wireless on Shure platforms
- Broadcast studio and ENG handheld wireless
- Live theatre and performing arts wireless vocal
- Auditorium and touring wireless productions
- Corporate event presenter wireless microphone
Technical Specifications
| Parameter | Value |
|---|---|
| SKU | 008723 |
| Color | Black |
| Interface | Shure-compatible (third-party) |
| Polar Pattern | Supercardioid |
| Transducer Type | Permanently polarized condenser (Neumann K 105) |
| Frequency Range | 80 Hz – 20 kHz |
| Max SPL (THD 0.5%) | 150 dB |
| Compatible With | Third-party transmitters with Shure interface |
| Grille Type | Multi-level wire gauze acoustic filter |
| Includes | KK 105 U capsule (black), large nylon carry bag |
Frequently Asked Questions
- Will this capsule fit Sennheiser transmitters?
- No. For Sennheiser SKM 5000/5200, use KK 105 S (008476). For Sennheiser 2000/6000/9000, use KK 205 (008654).
- When should I choose this over the KK 104 U cardioid?
- Choose the KK 105 U for louder environments, denser multi-channel wireless, or when maximum side and rear rejection is needed.
- What is the lead time?
- Special order. Contact Creation Networks at creationnetworks.net for availability.
- What warranty applies?
- Standard 2-year Neumann / Sennheiser warranty.
