Sennheiser 509162 – Spectera Base Station 1RU
Product Overview

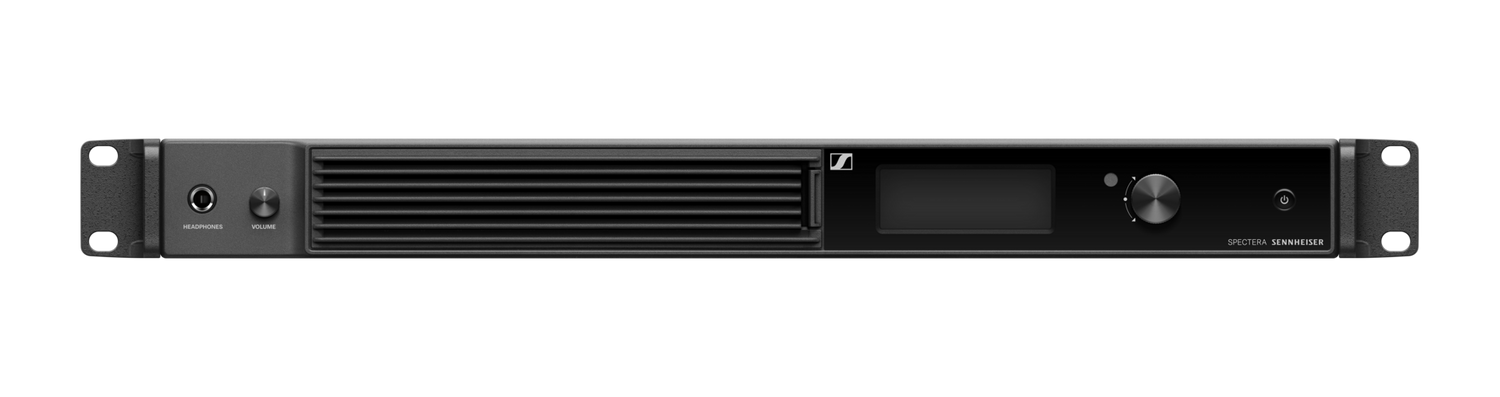

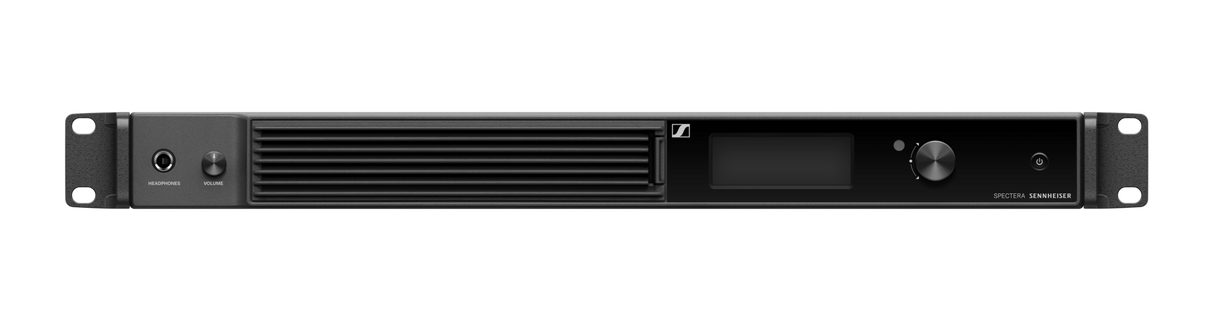

The Sennheiser 509162 Spectera Base Station is a 1RU wideband, bidirectional wireless transceiver that anchors the Spectera digital wireless ecosystem. It delivers up to 64 channels (32 in / 32 out) of simultaneous microphone/line transmission and IEM/IFB reception from a single rack unit, making it a high-density Spectera base station for broadcast and large-venue production. Built around WMAS wideband RF technology, this rack-mount base station consolidates wireless mic and in-ear monitor management into one networked device. It is engineered for demanding commercial AV deployments where channel count, redundancy, and rack space all matter.
Product Description
The Spectera Base Station is the central hardware of Sennheiser's Spectera platform, the company's bidirectional wideband digital wireless system. In a single 19-inch, 1RU chassis it provides 32 input and 32 output channels, combining wireless microphone transmission and in-ear monitor / IFB return paths that traditionally required separate transmitter and receiver hardware.

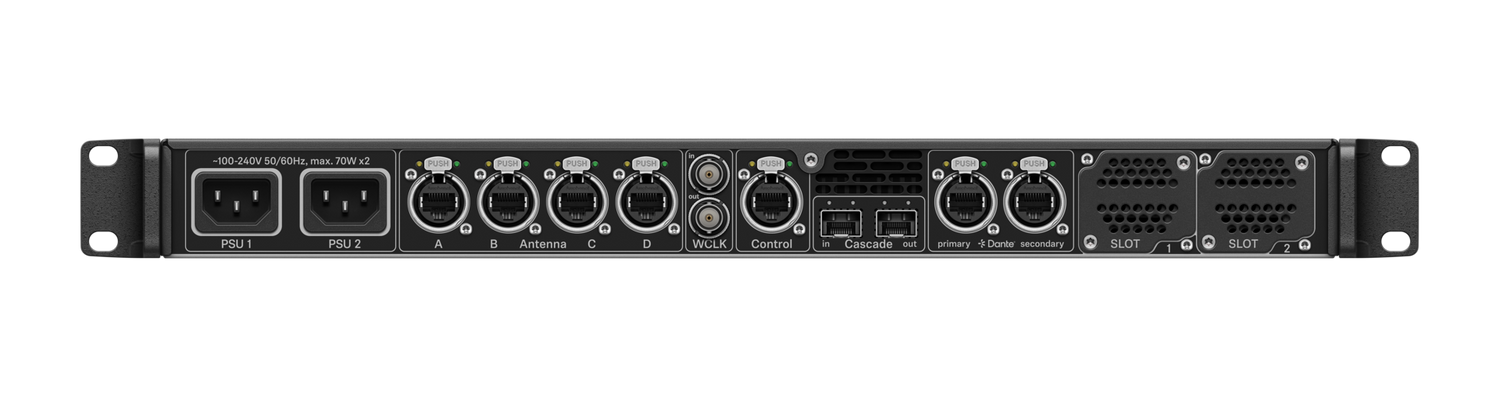

The base station uses up to two WMAS wideband RF carriers (6/8 MHz) to carry all 64 channels, and connects to remote antennas over the Spectera antenna cabling system. Audio I/O is handled over redundant Dante (primary and secondary RJ45) and an optional MADI (AES10) expansion slot, with support for 48 kHz and 96 kHz sample rates and individual sample rate converters on every audio interface plus wordclock I/O. Redundancy is built in throughout the unit: redundant power supplies, redundant Dante, optional redundant MADI audio I/O, and support for multiple antennas for failover, additional zone coverage, or additional spectrum capacity. The base station must be activated with a region-specific license before operation. This package includes the Spectera Base Station and three mains cables with EU, UK, and US plugs for international deployment. For integrators, the unit slots into a standard equipment rack and integrates with existing Dante audio networks.
Key Features
- 64-Channel Density — A single 1RU unit provides up to 64 channels (32 in / 32 out) of simultaneous mic/line transmission and IEM/IFB reception.
- Bidirectional WMAS Wireless — The base station uses up to two wideband RF carriers (6/8 MHz) to handle both transmit and receive paths in one device.
- Redundant Dante Networking — Primary and secondary Dante RJ45 ports carry 32 in / 32 out at 48 kHz or 96 kHz for resilient audio-over-IP integration.
- MADI Expansion — An AES10 MADI expansion slot adds 32 in / 32 out, with optional redundant MADI audio I/O for mission-critical installs.
- Built-In Redundancy — Redundant power supplies, redundant Dante, and multi-antenna support protect against single points of failure.
- Sample Rate Flexibility — The unit supports 48 kHz and 96 kHz with individual sample rate converters on each audio interface plus wordclock I/O.
- Rack-Mount Form Factor — The 19-inch 1RU chassis fits standard equipment racks for clean integration in broadcast and venue infrastructure.
- International Power Kit — The package ships with three mains cables (EU, UK, and US plug) for deployment across regions.
Typical Applications
- Broadcast studio
- Auditorium
- House of worship
- All-hands room
- Commercial meeting space
- Multi-purpose room
Technical Specifications
| Manufacturer Part Number (SKU) | 509162 |
| Product Type | Wireless Microphone Systems |
| Form Factor | 19-inch, 1RU rack-mount |
| Channels | Up to 64 (32 in / 32 out) |
| RF Technology | WMAS wideband, bidirectional; up to two RF carriers (6/8 MHz) |
| Network Audio | 2x Dante RJ45 (primary/secondary), 32 in / 32 out |
| Expansion | MADI (AES10) slot, 32 in / 32 out |
| Sample Rates | 48 kHz, 96 kHz (per-interface sample rate converters, wordclock I/O) |
| Redundancy | Redundant PSU, redundant Dante, optional redundant MADI, multi-antenna |
| Included Accessories | 3x mains cables (EU, UK, US plug) |
| Licensing | Region-specific license activation required |
| Brand | Sennheiser |
Frequently Asked Questions
How many wireless channels does the Spectera Base Station support?
A single 1RU unit supports up to 64 channels, configured as 32 inputs and 32 outputs, covering both microphone transmission and IEM/IFB reception.
What audio network interfaces are included?
The base station provides redundant Dante (primary and secondary RJ45) for 32 in / 32 out, plus a MADI (AES10) expansion slot for an additional 32 in / 32 out.
Does the Spectera Base Station require a license?
Yes. The base station must be activated with a region-specific license before it can operate in your territory.
How does it connect to antennas?
It connects to remote Spectera antennas over the Spectera antenna cabling system, and supports multiple antennas for redundancy, additional zone coverage, or additional spectrum capacity.
What sample rates does it support?
The unit supports both 48 kHz and 96 kHz, with individual sample rate converters on every audio interface and wordclock I/O.
Is it suitable for mission-critical broadcast installations?
Yes. Built-in redundancy across power supplies, Dante, optional MADI, and antennas makes it appropriate for broadcast and other applications that cannot tolerate a single point of failure.
Does it fit a standard equipment rack?
Yes. The base station uses a 19-inch, 1RU chassis that mounts in any standard AV equipment rack.
Where can I get integration support?
Our team can assist with Spectera system design, licensing, and Dante network integration. Contact us through creationnetworks.net.
