Sennheiser SKP 500 G4 Plug on transmitter with phantom power, frequency range:AW+ (470 - 558 MHz)
Sennheiser SKP 500 G4 Plug on transmitter with phantom power, frequency range:AW+ (470 - 558 MHz) - SKP 500 G4-AW+ is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sennheiser SKP 500 G4 Plug on transmitter with phantom power, frequ...
Product Overview

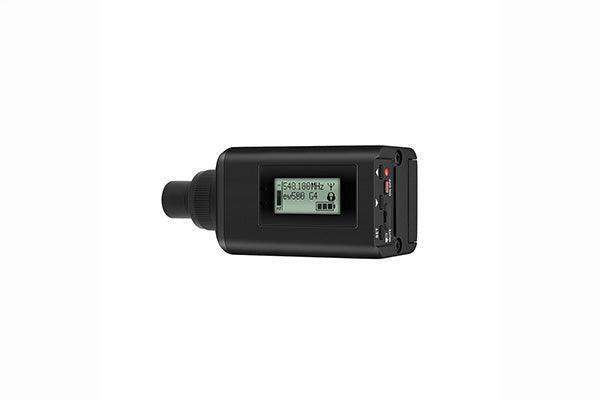

The Sennheiser SKP 500 G4 is a professional plug-on wireless transmitter with 48V phantom power, designed to make any XLR microphone—including condenser mics—part of an Evolution Wireless G4 500 Series system. Operating in the AW+ band (470–558 MHz), it is the ideal choice for ENG journalists and production crews who need to go wireless with their existing condenser or dynamic microphones. Available at Creation Networks.
Product Description
The SKP 500 G4 is the premium plug-on transmitter in Sennheiser's G4 lineup, distinguished by its ability to supply 48V phantom power to condenser microphones connected via XLR. This makes it uniquely versatile: connect any dynamic or condenser mic with an XLR output and instantly make it wireless. Operating in the AW+ band (470–558 MHz) with an 88 MHz tuning range, it offers up to 32 compatible channels for use in multi-channel productions. The locking XLR connector secures firmly to the host microphone, preventing accidental disconnection during live use or in the field. A menu-driven display on the transmitter allows frequency selection, audio level adjustment, and battery monitoring. The SKP 500 G4 runs on AA batteries for convenient power in the field. HD Clear Audio mode delivers extended dynamic range audio transmission. Compatible with EM 300-500 G4 rackmount receivers and EK 500 G4 camera receivers in the AW+ band.
Key Features
- 48V Phantom Power — Powers condenser microphones via XLR, enabling wireless use of any condenser mic.
- AW+ Band (470–558 MHz) — 88 MHz bandwidth with up to 32 compatible channels for multi-channel productions.
- Locking XLR Connector — Secure attachment to any XLR microphone with a locking mechanism.
- HD Clear Audio Mode — Extended dynamic range transmission for premium audio quality.
- Menu-Driven Display — Easy frequency and sensitivity adjustment in the field.
- AA Battery Operation — Convenient field power with multi-hour runtime.
- G3 Backwards Compatible — Works with G3 receivers in the same frequency band.
- Universal Microphone Compatibility — Works with dynamic and condenser microphones with XLR output.
Typical Applications
- ENG broadcast news gathering with existing condenser microphones
- Stage performance converting wired condenser handhelds to wireless
- Documentary production wireless audio with condenser boom mics
- Theatre and live events requiring wireless condenser microphone operation
- Corporate AV presentations with wireless freedom for standard mics
Technical Specifications
| Frequency Range | 470–558 MHz (AW+ band) |
|---|---|
| Phantom Power | 48V (for condenser microphones) |
| Connector | XLR (plug-on with locking) |
| Battery | AA alkaline |
| Series | Evolution Wireless G4 500 |
Frequently Asked Questions
- Can I use the SKP 500 G4 with a condenser microphone?
- Yes, the SKP 500 G4 supplies 48V phantom power, making it compatible with any XLR condenser microphone.
- What receivers are compatible with the SKP 500 G4-AW+?
- Compatible with EM 300-500 G4-AW+ rackmount receivers and EK 500 G4-AW+ camera receivers.
- Is there a GW1 band version?
- The SKP 500 G4 is available in multiple bands. Contact Creation Networks to check band availability for your region.
- Does the locking XLR work with all microphones?
- Yes, the locking XLR mechanism works with any standard XLR microphone connector.
- What is the battery life on AA batteries?
- Battery life varies depending on conditions, but typical runtime is several hours on fresh AA alkaline batteries.
