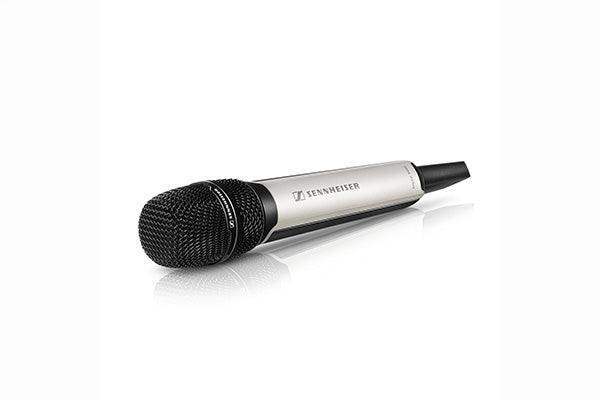

Sennheiser SKM 9000 BK COM Handheld Transmitter, Black - Digital 9000

Product Overview

The Sennheiser SKM 9000 BK COM is the flagship handheld transmitter in the Digital 9000 series, delivering uncompressed digital wireless audio at a level of fidelity that matches the performance of wired microphones. Available in black finish, this transmitter includes a command function (COM) that allows direct remote control of the EM 9046 receiver from the handheld unit itself. HD mode maximizes audio quality for demanding concert and broadcast applications, while LR (Long Range) mode extends transmission distance when stage geometry or venue size requires it. A microphone clip is included.

Product Description

Digital 9000 is Sennheiser’s reference-class wireless platform, built for broadcast, touring, and high-stakes live event production where there is no margin for audio compromise. The SKM 9000 BK COM transmits artifact-free, uncompressed digital audio in the UHF band — available in A1-A4 (470–558 MHz) and A5-A8 (550–638 MHz) frequency ranges — providing the headroom and dynamic range required by lead vocalists, broadcast talent, and speaking presenters at major events. Audio characteristics are determined entirely by the choice of capsule head, and the SKM 9000 accepts a wide range of Sennheiser capsule options.

The SKM 9000 is compatible with the full range of ME series microphone capsule heads and KK capsules, including Neumann KK 204 and KK 205. Additionally, it accepts capsule heads from the evolution wireless G3 and 2000 series, providing operators with extensive tonal choices across cardioid, supercardioid, and omnidirectional polar patterns. Lithium-Ion rechargeable battery packs power the transmitter, with runtime that exceeds what is achievable from standard alkaline cells. The COM (command) variant adds a dedicated control interface so the handheld operator or a system technician can adjust receiver parameters without accessing the rack-mounted EM 9046 directly. The SKM 9000 requires the Sennheiser EM 9046 multichannel receiver, sold separately.

Key Features

• Uncompressed Digital Audio — Transmits full-bandwidth, artifact-free digital audio with dynamics and frequency response equivalent to a high-quality wired microphone.
• HD Mode — High-Definition mode prioritizes maximum audio quality for studio, broadcast, and critical live applications.
• LR (Long Range) Mode — Extended range mode increases transmission distance to handle larger stages, outdoor venues, and complex RF environments.
• Command Function (COM) — Allows remote control of the EM 9046 receiver directly from the handheld transmitter, enabling on-stage or in-hand parameter adjustments.
• Black Finish (BK) — Professional matte black housing reduces stage reflections and suits broadcast camera shots where a low-visibility microphone is preferred.
• Broad Capsule Compatibility — Accepts ME series and KK capsule heads, plus evolution wireless G3 and 2000 series heads, including Neumann KK 204 and KK 205.
• 4 Exclusive 9000 Series Capsules Available — ME 9002, ME 9004, ME 9005, and MD 9235 capsules deliver ultra-low handling noise and maximum pop suppression through a specialized shock mount design.
• Lithium-Ion Rechargeable Battery Packs — Environment-friendly Li-Ion packs provide extended operating time and significantly reduce battery replacement costs over the product’s lifetime.
• Two Frequency Ranges Available — A1-A4 (470–558 MHz) and A5-A8 (550–638 MHz) variants allow coordination across complex multichannel RF environments.
• UHF Digital Transmission — Operates in the UHF band with interference resilience suited to dense RF environments found at major live events and broadcast facilities.
• Includes Microphone Clip — Ships with a standard microphone clip for stand mounting during podium or podium-style presentations.

Typical Applications

• Concert touring and live entertainment where lead vocal audio quality is critical
• Broadcast television and radio production requiring studio-grade wireless audio
• House of worship main stage and broadcast capture for streaming and video production
• Auditorium and performing arts center theatrical productions
• Government and corporate keynote presentations requiring reliable high-fidelity wireless
• Outdoor festivals and large-scale events where LR mode extended range is needed

Technical Specifications

Frequently Asked Questions

Q: What receiver is required for the SKM 9000 BK COM?

The SKM 9000 BK COM requires the Sennheiser EM 9046 multichannel receiver, sold separately. It is not compatible with receivers from other Sennheiser series such as EM 300 G3 or EM 6000.

Q: What is the difference between HD mode and LR mode?

HD (High Definition) mode transmits at full audio quality and is recommended for most applications where the transmitter is within normal operating range of the receiver. LR (Long Range) mode trades some audio bandwidth for increased RF transmission distance, useful for large stages, outdoor venues, or complex RF environments.

Q: What does the COM (command) function do?

The command function allows the handheld transmitter to communicate control signals back to the EM 9046 receiver, enabling remote parameter adjustments — such as muting or gain changes — directly from the handheld unit without physically accessing the rack receiver.

Q: Which capsule heads are compatible with the SKM 9000?

The SKM 9000 accepts Sennheiser ME series and KK series capsules, the exclusive 9000 series capsules (ME 9002, ME 9004, ME 9005, MD 9235), and capsule heads from the evolution wireless G3 and 2000 series, including Neumann KK 204 and KK 205.

Q: What frequency range should I order?

The SKM 9000 BK COM is available in two frequency variants: A1-A4 (470–558 MHz, SKU 504714) and A5-A8 (550–638 MHz, SKU 505956). Selection depends on the frequency coordination plan for your venue and any local spectrum restrictions. Contact Creation Networks for frequency coordination guidance.

Q: Can I use standard AA batteries in the SKM 9000?

No. The SKM 9000 is powered by Sennheiser’s proprietary Lithium-Ion rechargeable battery packs. Standard alkaline batteries are not compatible with this transmitter.

Q: Does the SKM 9000 work with a Sennheiser charging system?

Yes. The Li-Ion battery packs used in the SKM 9000 are compatible with Sennheiser’s CHG 9000 series charging systems. The charger is sold separately.

Q: What is the warranty on the SKM 9000 BK COM?

Sennheiser provides a 2-year manufacturer’s warranty. Contact Creation Networks for warranty registration and authorized service information.
