Sennheiser Neumann KMS 104 cardioid condenser capsule for use with Sennheiser SKM 5200 handheld transmitter, black.
Sennheiser Neumann KMS 104 cardioid condenser capsule for use with Sennheiser SKM 5200 handheld transmitter, black. is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sennheiser Neumann KMS 104 cardioid condenser capsule for use with ...
Product Overview

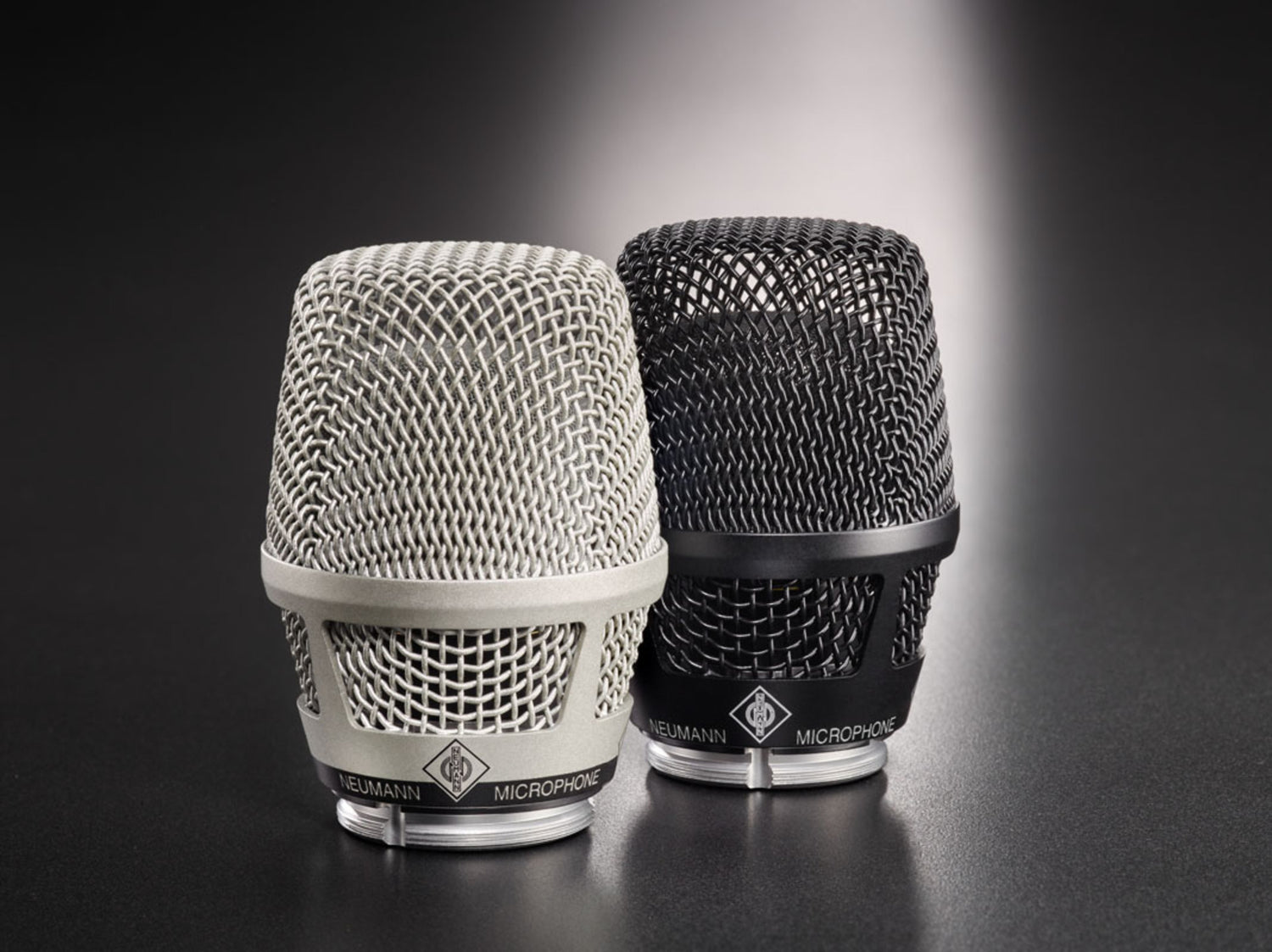

The Neumann KMS 104 Cardioid Condenser Capsule (Black) — SKU 008533 — is a precision wireless capsule head engineered exclusively for use with the Sennheiser SKM 5200 and SKM 5000 handheld transmitters. Based on the acclaimed Neumann KMS 104 wired stage microphone, this capsule brings true condenser studio-grade audio quality to professional wireless live production, broadcast, and high-demand corporate event applications. The cardioid polar pattern delivers wide front-of-source pickup with strong rear rejection, making it a preferred choice for solo vocal and presenter applications where feedback resistance and natural sound reproduction are equally critical.
Product Description
The Neumann KK 104 S (black) capsule head for the Sennheiser 5000/5200 Series wireless system is built around a precision condenser element derived directly from Neumann's KMS 104 wired stage microphone. The capsule's cardioid pickup pattern provides uniform polar response across the full 80 Hz–20 kHz frequency range, a key advantage in live production environments where consistent off-axis rejection determines system gain before feedback. Internal integrated foam pop protection with an expanded-surface-area foam structure shields the condenser element from moisture and plosive energy, extending reliability in high-intensity live and broadcast use. The capsule head features a rugged, stage-ready housing that mates directly with the SKM 5200 and SKM 5000 transmitter bodies, accepting the same battery packs and accessories as other 5000 Series components. Maximum SPL handling is rated at 148–150 dB for THD 0.5%, positioning this capsule for use alongside high-SPL vocalists, theatrical productions, and any application where dynamic range is non-negotiable. A large nylon carry bag is included. This is a special-order item.
Key Features
- Neumann KMS 104 Condenser Capsule Lineage — True condenser capsule derived from the award-winning Neumann KMS 104 wired stage microphone.
- Cardioid Polar Pattern — Uniform cardioid pickup across the frequency range provides excellent rear rejection and strong feedback resistance.
- 80 Hz–20 kHz Frequency Range — Extended frequency response with natural warmth, transparency, and accurate transient reproduction.
- 148–150 dB Max SPL — Handles high-SPL vocalists and demanding stage environments without distortion.
- Integrated Foam Pop Protection — Expanded-pore foam resists moisture and plosive energy for reliable performance in demanding conditions.
- SKM 5200 / SKM 5000 Compatible — Direct-fit capsule head with no adapters required.
- Black Finish — Matte black color matches black SKM 5200 and SKM 5000 transmitter bodies.

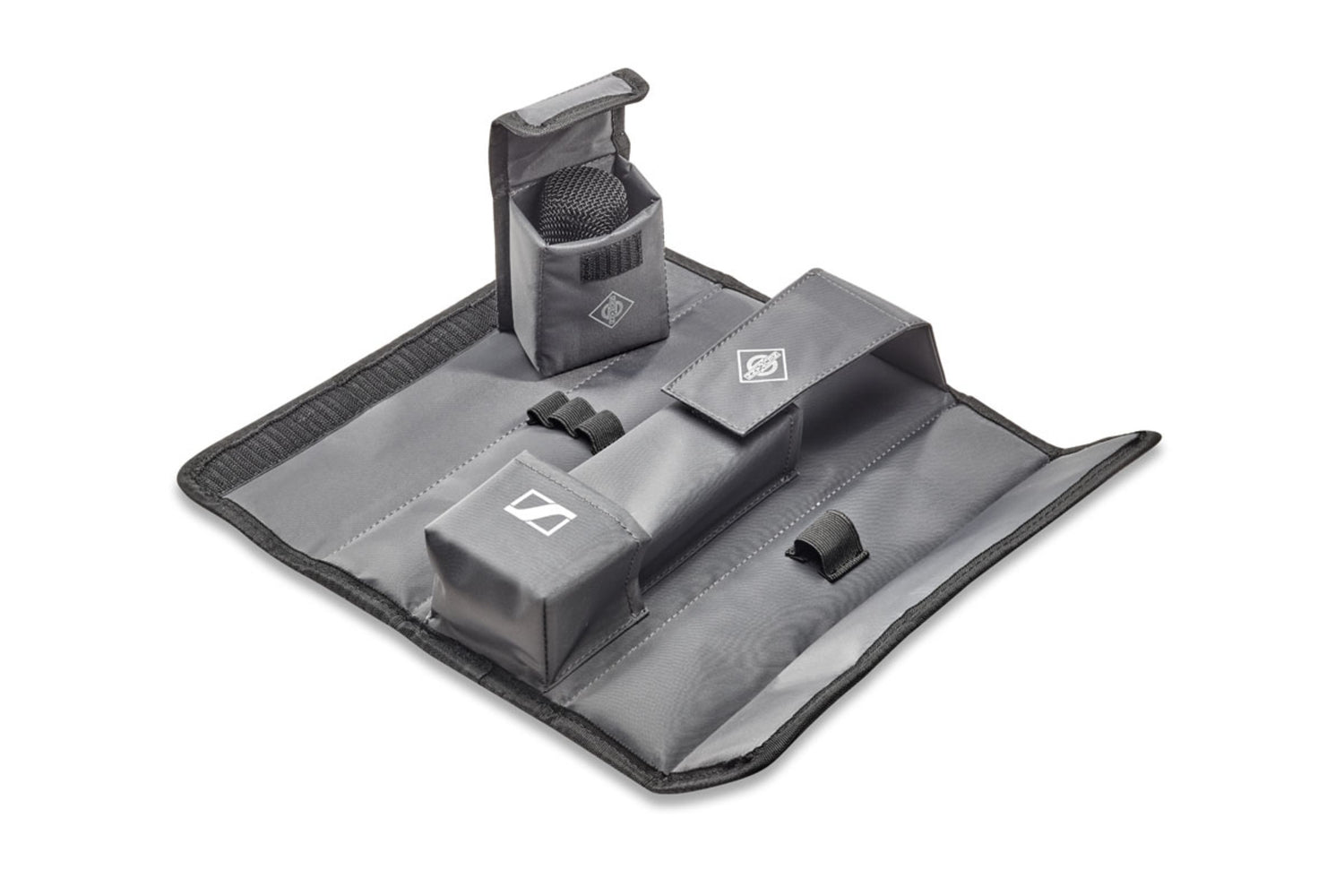

- Includes Carry Bag — Large nylon bag for transport of capsule, transmitter, and accessories.
Typical Applications
- House of worship lead vocal wireless systems
- Broadcast studio talent handheld microphone
- Auditorium and performing arts live vocal production
- Corporate event and all-hands room presenter wireless
- Theatrical and live production wireless vocal systems
Technical Specifications
| Parameter | Value |
|---|---|
| SKU | 008533 |
| Color | Black |
| Polar Pattern | Cardioid |
| Transducer Type | Permanently polarized condenser (Neumann) |
| Frequency Range | 80 Hz – 20 kHz |
| Sensitivity at 1 kHz (1 kΩ) | 1.7 / 1.3 mV/Pa ± 1 dB |
| Max SPL (THD 0.5%) | 148 / 150 dB |
| Compatible Transmitters | Sennheiser SKM 5200, SKM 5000 |
| Includes | KMS 104 capsule head (black), large nylon carry bag |
| Availability | Special order |
Frequently Asked Questions
- Is this capsule compatible with the SKM 5200-II?
- Yes. Compatible with the SKM 5200, SKM 5200-II, SKM 5000, and SKM 5000-II. Not compatible with other Sennheiser wireless series.
- What is the difference between the KMS 104 cardioid and KMS 105 supercardioid capsules?
- The KMS 104 cardioid has a wider front acceptance angle suitable for vocalists with dynamic movement. The KMS 105 supercardioid offers tighter directionality and higher feedback rejection for louder, more demanding stage environments.
- Does this capsule require phantom power?
- No. The capsule is powered internally by the SKM 5200 or SKM 5000 transmitter body.
- What is the lead time for this special-order item?
- Lead times vary. Contact Creation Networks at creationnetworks.net for current availability and estimated ship dates.
- What warranty applies to this capsule?
- Standard 2-year Neumann / Sennheiser warranty. Contact Sennheiser support or your dealer for warranty service.
