Sennheiser Headmic 4 cardioid condenser headmic with 3-Pin connector for Sennheiser bodypack transmitters, black. Includes KE 4 cardioid mic capsule, 3-Pin connector, MZW 44 windshield and soft case (509498)
Sennheiser Headmic 4 cardioid condenser headmic with 3-Pin connector for Sennheiser bodypack transmitters, black. Includes KE 4 cardioid mic capsule, 3-Pin connector, MZW 44 windshield and soft case (509498) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sennheiser Headmic 4 cardioid condenser headmic with 3-Pin connecto...
Product Overview

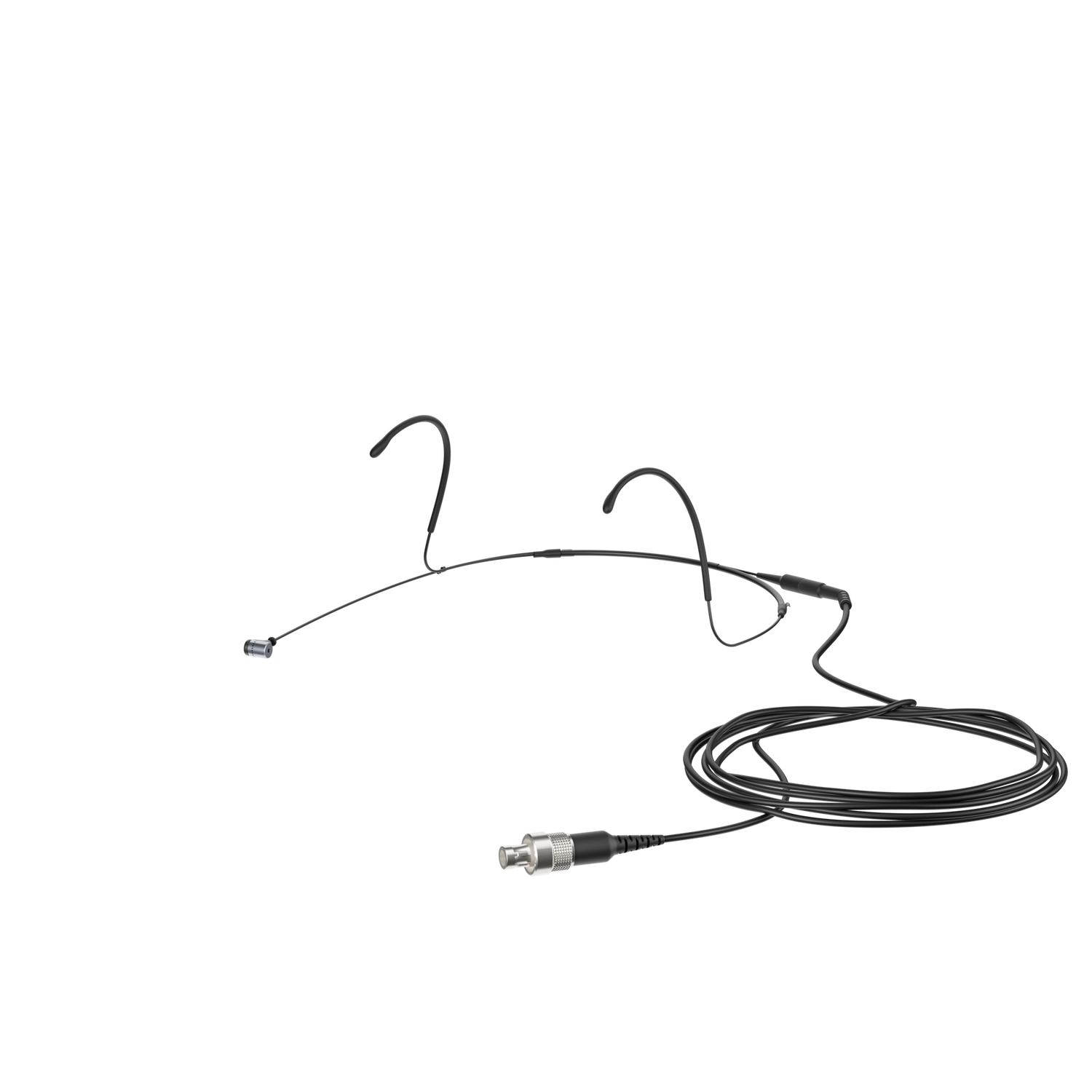

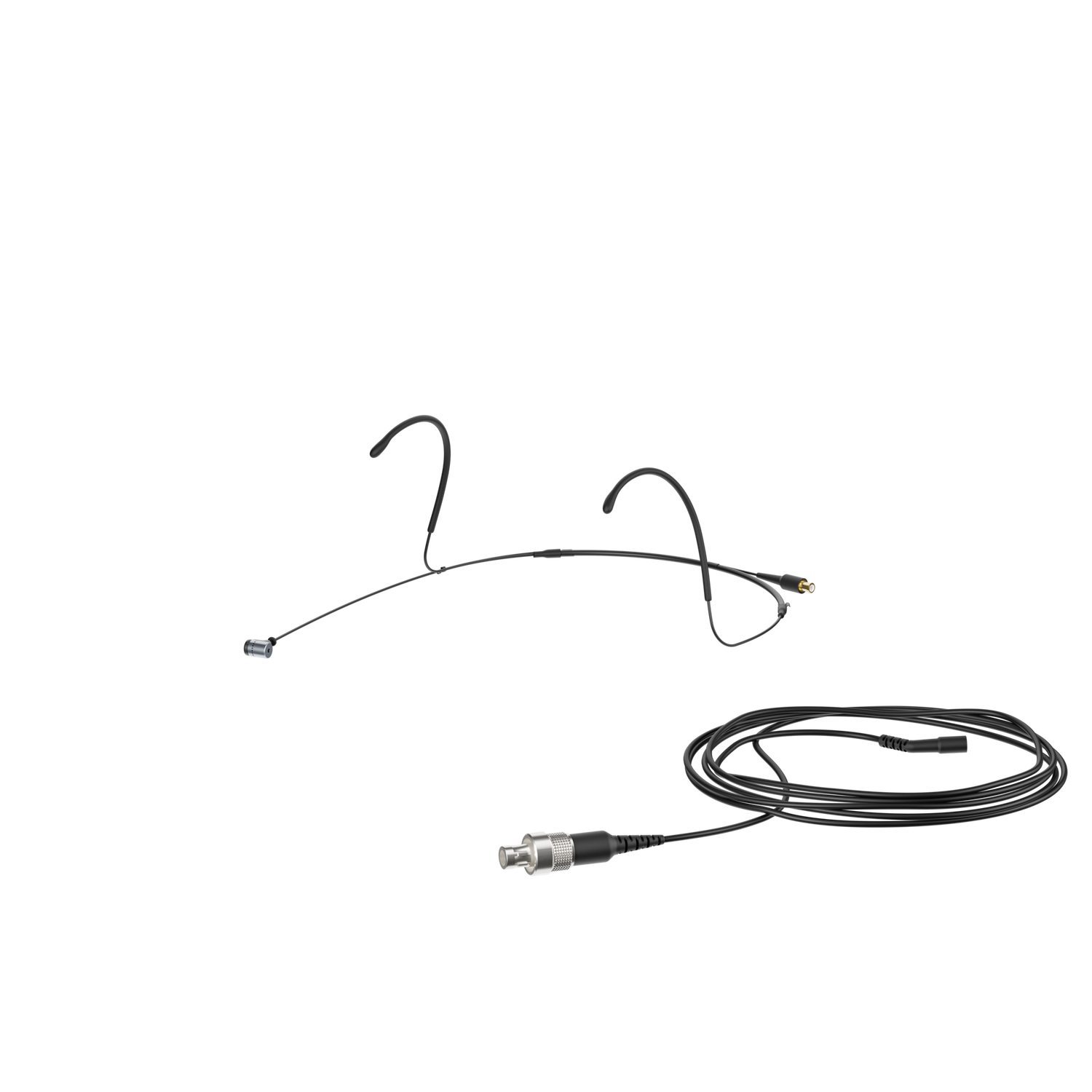

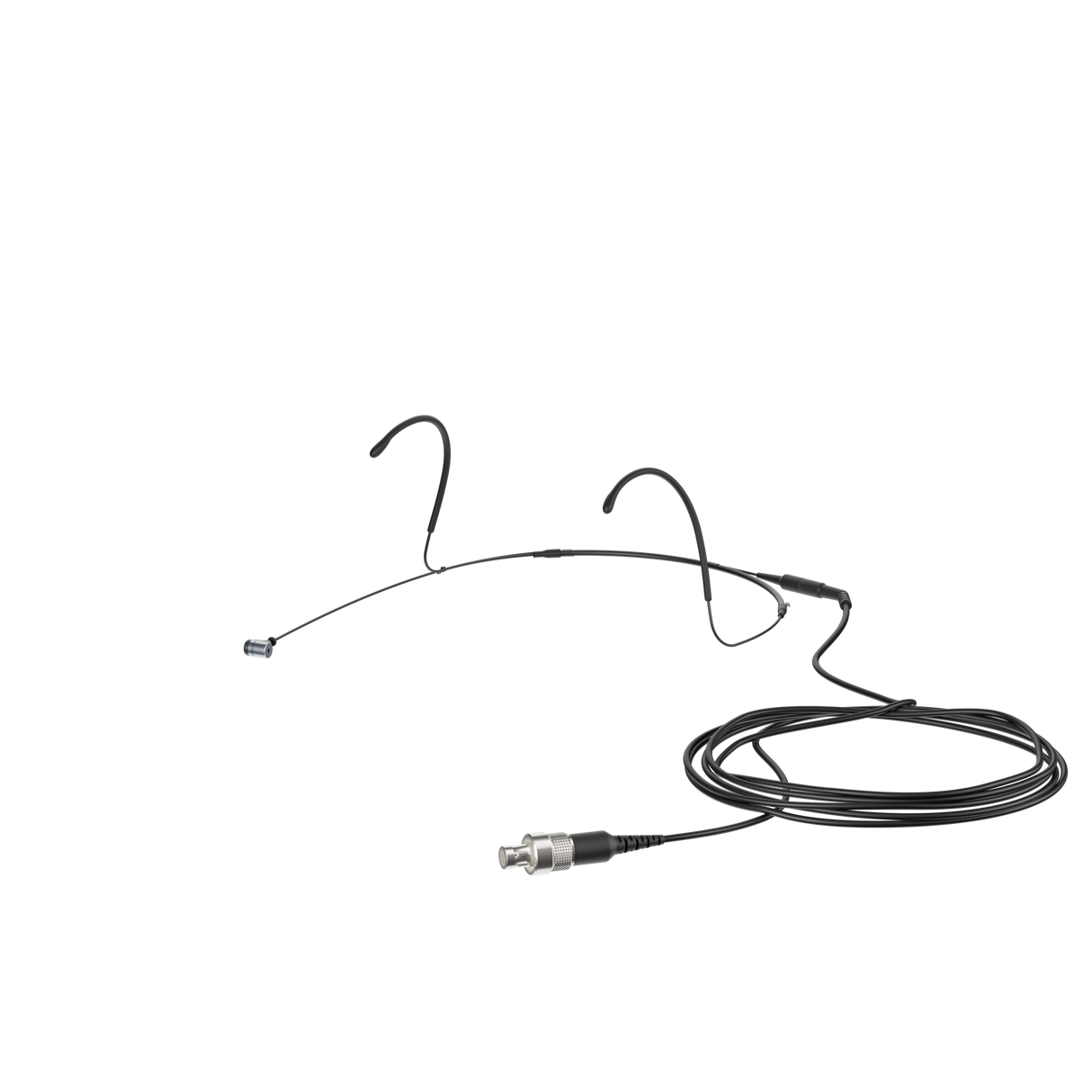

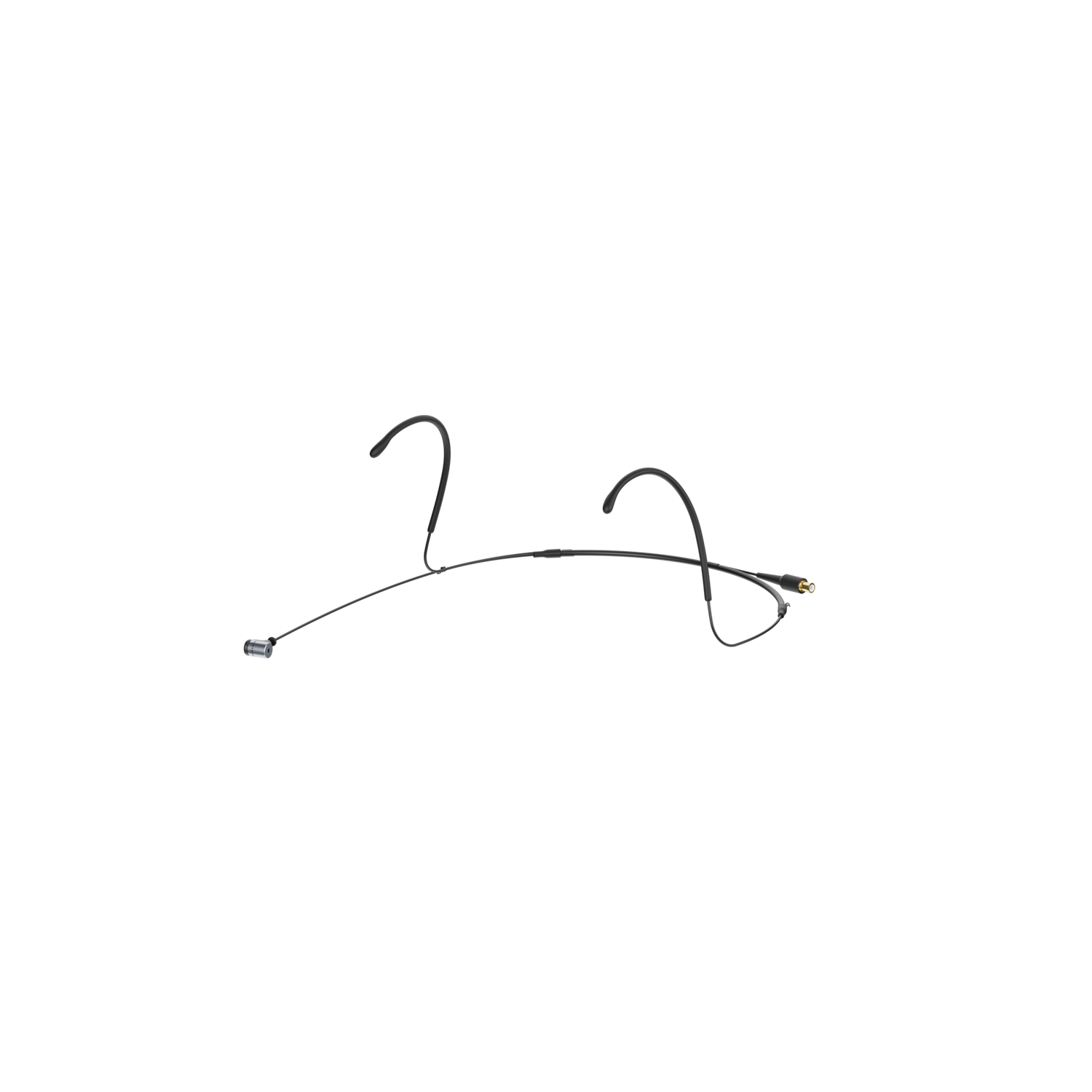

The Sennheiser Headmic 4 (Black, 3-Pin) — SKU 509498 — is an ultra-lightweight cardioid condenser neckband microphone for professional vocal and speech applications with Sennheiser bodypack wireless transmitters. Featuring the KE 4 permanently polarized condenser capsule, a 7 g metal frame, and a twist-proof boom adjustable to either side, it is designed for broadcast, house of worship, live theatre, and corporate presentation deployments. This variant ships with a 3-Pin connector for Sennheiser 2000/5000/6000/9000 Series bodypacks, in a black finish for lower-visibility stage and broadcast applications.
Product Description
The Headmic 4 neckband design provides an adjustable, comfortable fit for all head sizes during extended performance sessions. The KE 4 cardioid condenser capsule delivers outstanding sound quality and feedback rejection, with a 143 dB maximum SPL handling and 4.7 kΩ minimum terminating impedance. The modular system — interchangeable cables, clips, and windshields — supports field maintenance and reconfiguration. The 1.1 mm twist-proof boom holds its set position under movement and can be worn on either left or right side without tools. Includes KE 4 capsule, 3-Pin connector, MZW 44 windshield, and soft case. Black finish, compatible with all Sennheiser bodypack wireless transmitters.
Key Features
- KE 4 Cardioid Condenser Capsule — Outstanding sound quality and feedback rejection for live vocal and speech applications.
- 7 g Ultralight Metal Frame — Virtually weightless during extended wear; adjusts for all head sizes.
- Twist-Proof Microphone Boom — Holds position under movement; left or right mounting without tools.
- Modular System — Cables, clips, and windshields independently interchangeable.
- 143 dB Max SPL — Handles high-output vocal sources without distortion.
- All Sennheiser Bodypack Compatible — Works across the Sennheiser wireless bodypack transmitter range.
- 3-Pin Connector — For Sennheiser 2000/5000/6000/9000 Series bodypack transmitters.
- Black Finish — Lower-visibility color for broadcast and dark-stage applications.
- Includes MZW 44 Windshield and Soft Case — Deployment-ready out of the box.
Typical Applications
- House of worship presenter and vocalist wireless microphone
- Live theatre and performing arts wireless headset
- Broadcast studio and ENG talent wireless headset
- Corporate event and all-hands presenter wireless
- Training room and conference presenter wireless
Technical Specifications
| Parameter | Value |
|---|---|
| SKU | 509498 |
| Color | Black |
| Connector | 3-Pin (Sennheiser 2000/5000/6000/9000 Series) |
| Capsule | KE 4 cardioid, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Max SPL | 143 dB |
| Min. Terminating Impedance | 4.7 kΩ |
| Supply Current | Approx. 240 µA |
| Weight (without cable) | Approx. 7 g |
| Includes | KE 4 capsule, 3-Pin connector, MZW 44 windshield, soft case |
Frequently Asked Questions
- Which bodypacks use the 3-Pin connector?
- The 3-Pin connector is for Sennheiser 2000/5000/6000/9000 Series and Digital 9000 Series bodypack transmitters. For EW G4 and XS Wireless bodypacks, use the 3.5 mm jack version (509495).
- Can the boom be worn on either side?
- Yes. The twist-proof boom mounts on left or right without tools.
- Are accessories available separately?
- Yes. See creationnetworks.net/collections/sennheiser for replacement cables, windshields, and clips.
- What is the warranty?
- Standard 2-year Sennheiser warranty.
