Sennheiser Headmic 4 cardioid condenser headmic with 3-Pin connector for Sennheiser bodypack transmitters, beige (3.5mm jack plug version). Includes KE 4 cardioid mic capsule, MZW 44 windshield and soft case (509499)
Sennheiser Headmic 4 cardioid condenser headmic with 3-Pin connector for Sennheiser bodypack transmitters, beige (3.5mm jack plug version). Includes KE 4 cardioid mic capsule, MZW 44 windshield and soft case (509499) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sennheiser Headmic 4 cardioid condenser headmic with 3-Pin connecto...
Product Overview

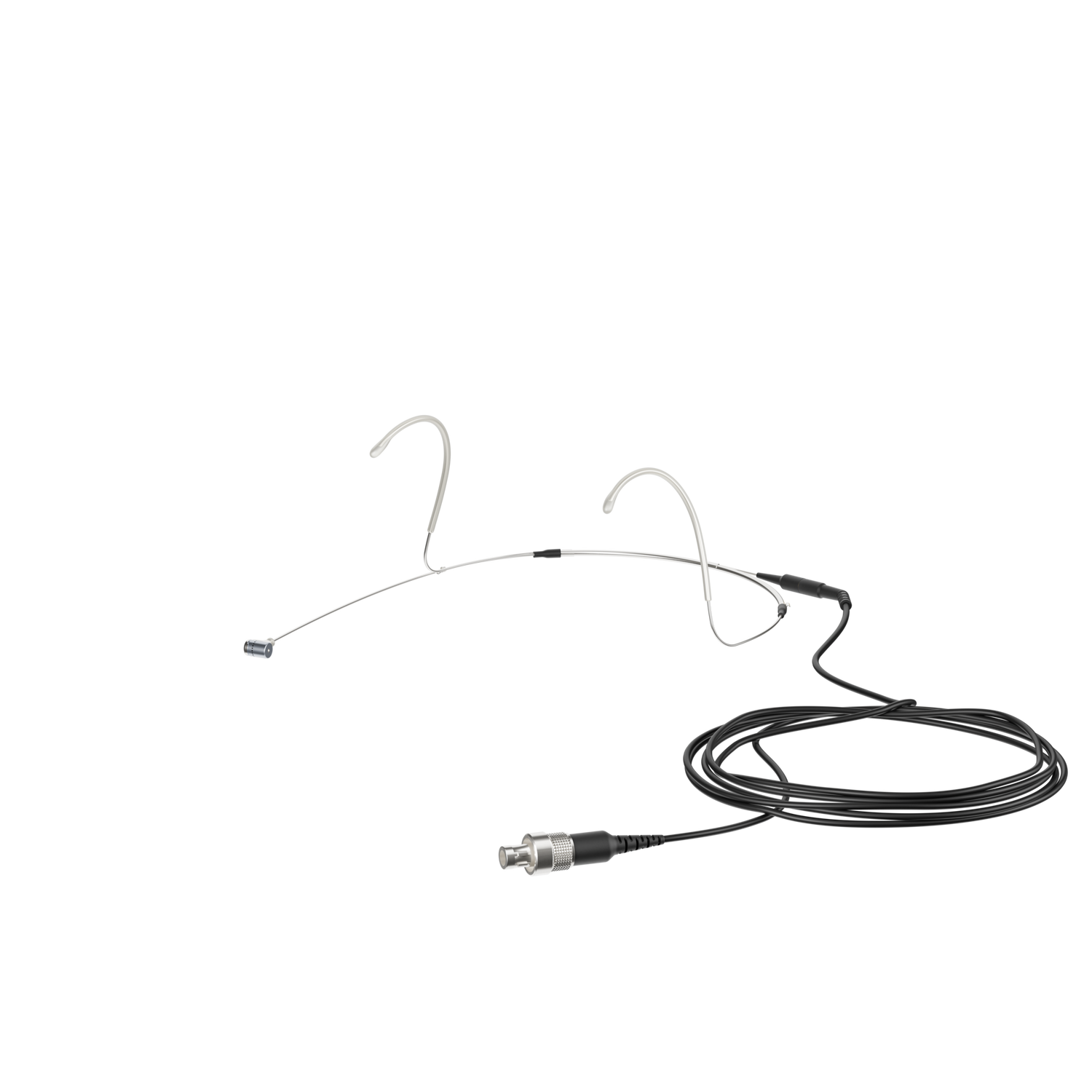

The Sennheiser Headmic 4 (Beige, 3-Pin — Version 509499) is an ultra-lightweight cardioid condenser neckband microphone for professional vocal and speech applications with Sennheiser bodypack wireless transmitters. Featuring the KE 4 permanently polarized condenser capsule and a 7 g adjustable metal frame, it is suited for house of worship, live theatre, broadcast, and corporate presentation deployments. This variant ships with a 3-Pin connector and beige finish; it is the alternate beige 3-Pin SKU (509499) to the standard beige 3-Pin version (509497).
Product Description
The Headmic 4 neckband microphone is built on a lightweight metal frame with an adjustable neckband comfortable for all head sizes during extended sessions. The KE 4 cardioid condenser capsule delivers outstanding sound quality and feedback rejection with a 143 dB maximum SPL. The 1.1 mm twist-proof boom holds position under movement and mounts on either left or right side without tools. The modular design allows cables, clips, and windshields to be replaced independently in the field. Minimum terminating impedance is 4.7 kΩ, supply current approximately 240 µA. Compatible with all Sennheiser bodypack wireless transmitters. Includes KE 4 capsule, MZW 44 windshield, and soft case. Beige finish, 3-Pin connector for Sennheiser 2000/5000/6000/9000 Series bodypacks.
Key Features
- KE 4 Cardioid Condenser Capsule — Permanently polarized condenser for outstanding sound quality and feedback rejection.

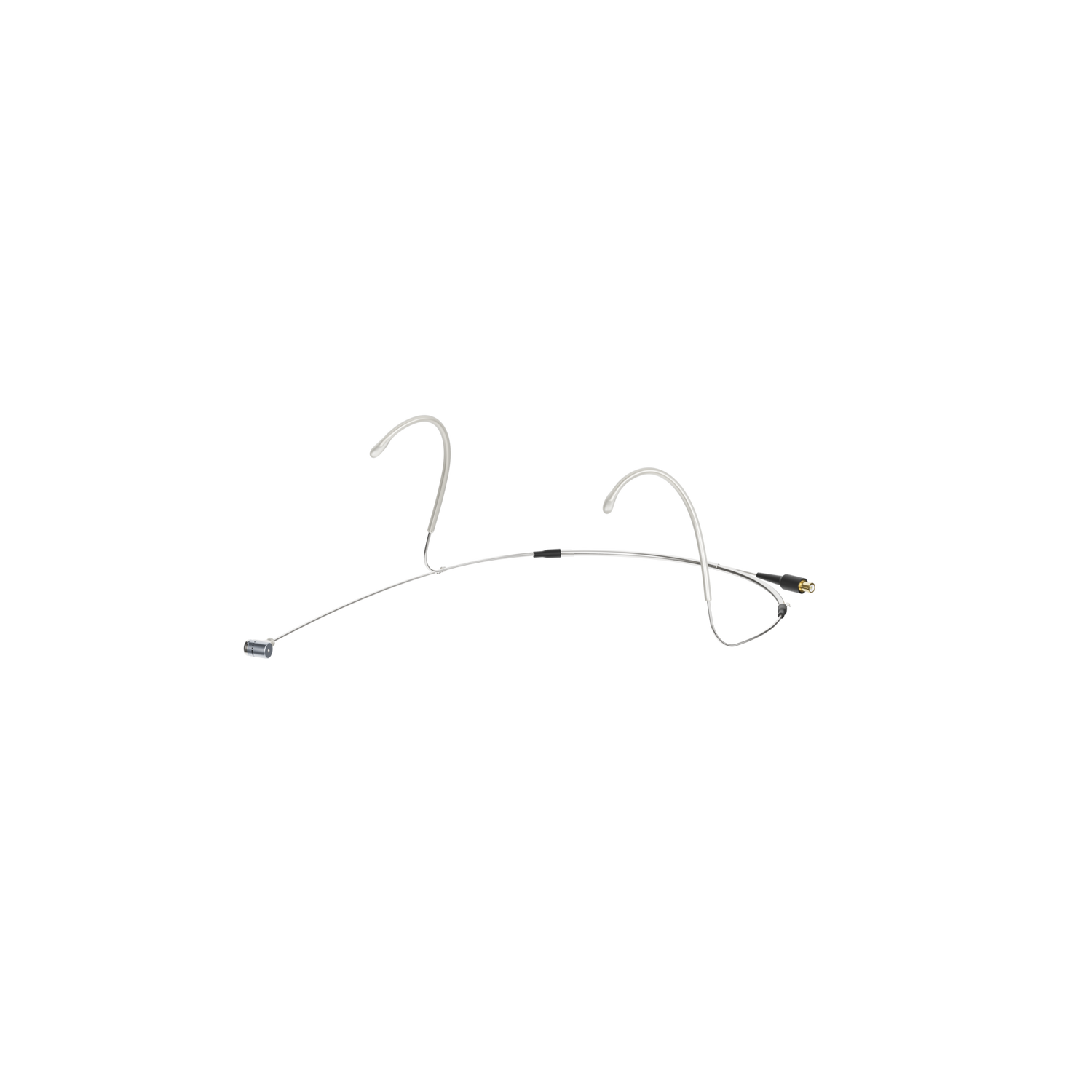

- 7 g Ultralight Metal Frame — Adjustable neckband; virtually weightless during extended wear.
- Twist-Proof Boom — Holds position under movement; left or right mounting without tools.

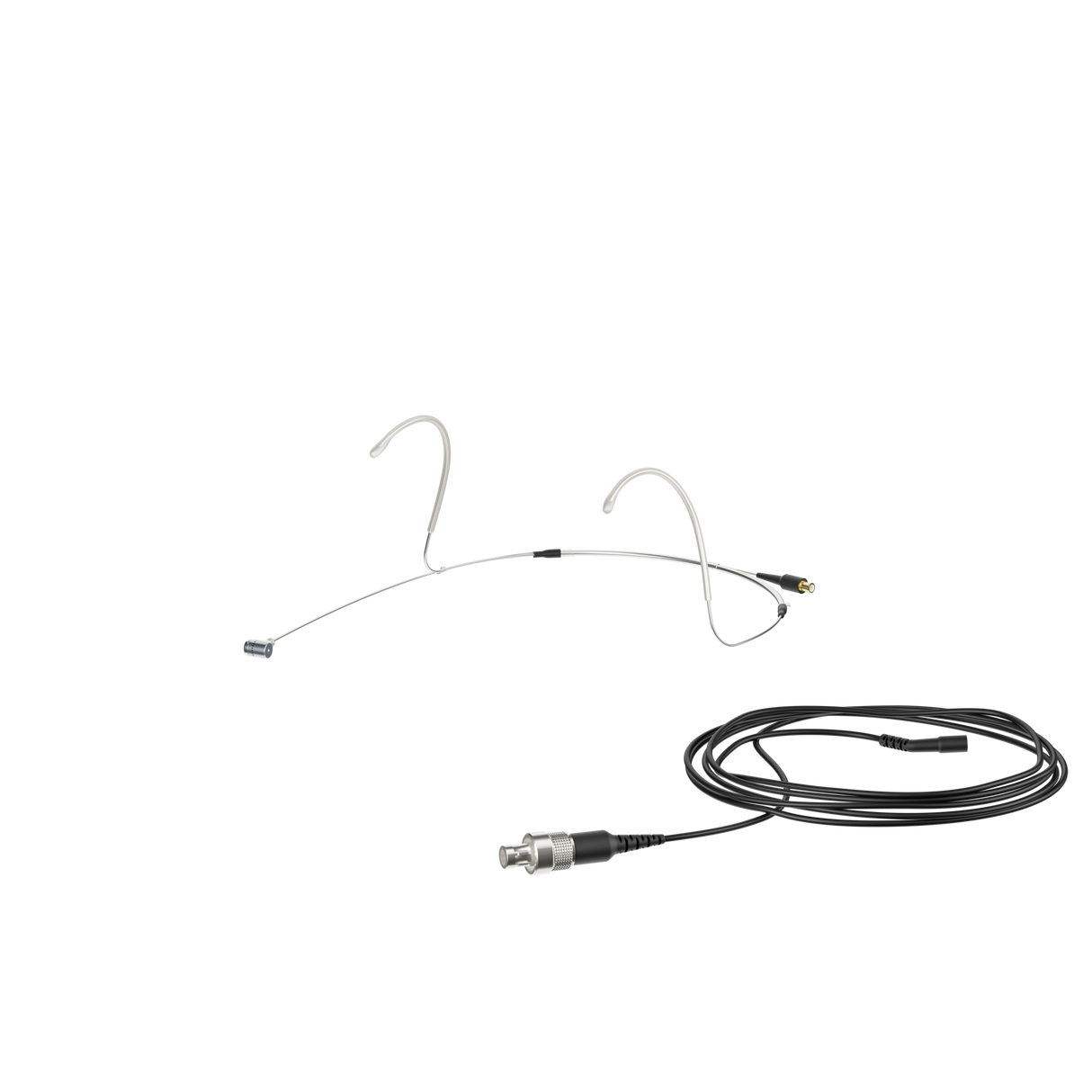

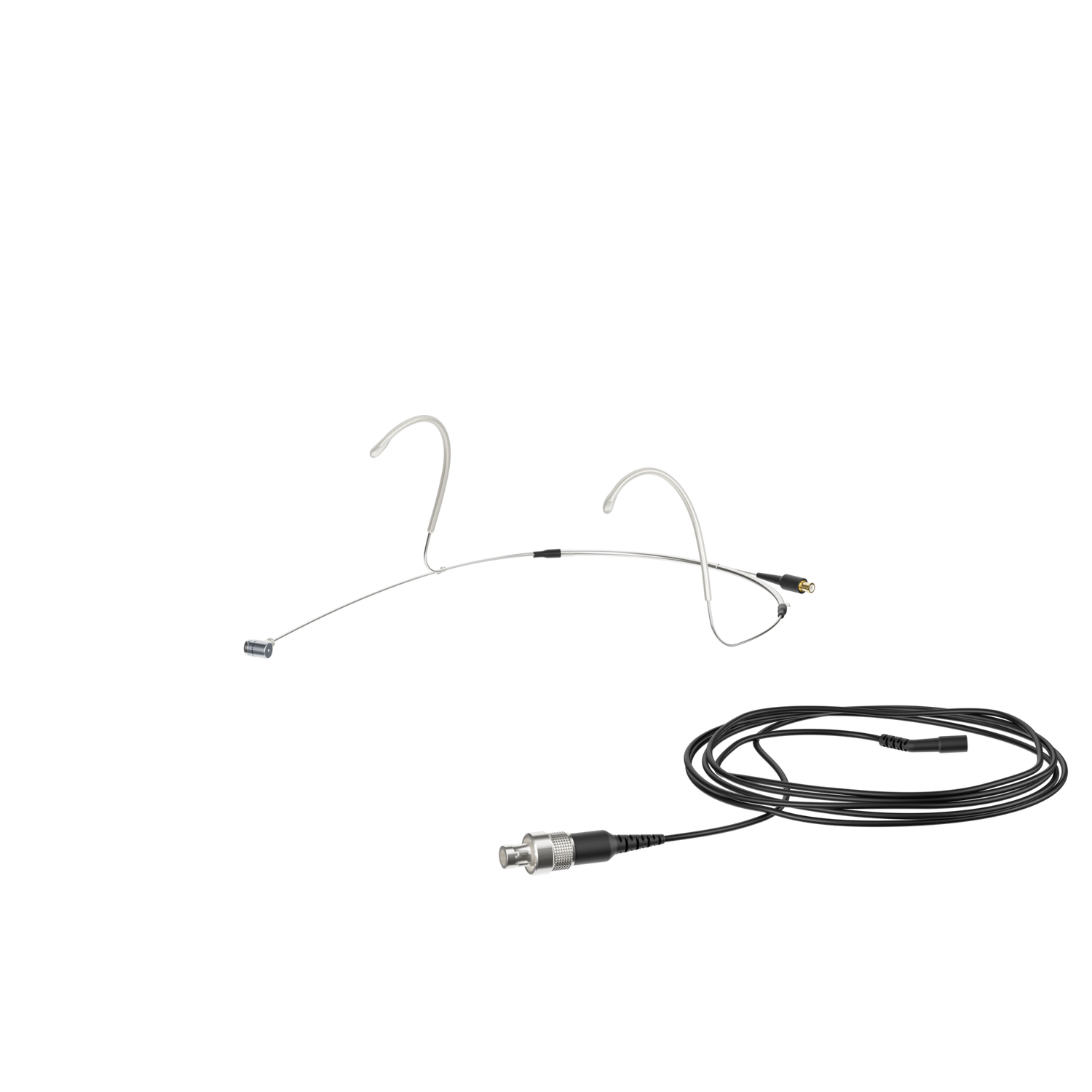

- Modular System — Cables, clips, and windshields independently interchangeable.
- 143 dB Max SPL — Handles high-output vocal sources without distortion.
- All Sennheiser Bodypack Compatible — Works across the full Sennheiser wireless bodypack range.
- 3-Pin Connector — For Sennheiser 2000/5000/6000/9000 Series bodypack transmitters.
- Beige Finish — Low-visibility color for stage, theatre, and presentation use.
Typical Applications
- House of worship presenter and vocalist wireless microphone
- Live theatre and performing arts wireless headset
- Broadcast studio and ENG talent wireless headset
- Corporate event and all-hands presenter wireless
- Training room and conference presenter wireless
Technical Specifications
| Parameter | Value |
|---|---|
| SKU | 509499 |
| Color | Beige |
| Connector | 3-Pin (Sennheiser 2000/5000/6000/9000 Series) |
| Capsule | KE 4 cardioid, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Max SPL | 143 dB |
| Min. Terminating Impedance | 4.7 kΩ |
| Supply Current | Approx. 240 µA |
| Weight (without cable) | Approx. 7 g |
| Includes | KE 4 capsule, MZW 44 windshield, soft case |
Frequently Asked Questions
- What is the difference between SKU 509499 and 509497?
- Both are beige Headmic 4 with 3-Pin connector. Verify the specific variant required for your bodypack system with Creation Networks at creationnetworks.net.
- Can the boom be worn on either side?
- Yes. The twist-proof boom mounts on left or right without tools.
- What is the warranty?
- Standard 2-year Sennheiser warranty.
At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.
- Most in-stock orders placed Monday-Friday ship within 24-48 hours. General restrictions apply; please see our full shipping policy here.
- We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
