Sennheiser EW IEM G4 – Wireless In-Ear Monitor System

Product Overview

The Sennheiser EW IEM G4 is a complete wireless in-ear monitor system for professional live sound, giving a single performer a reliable stereo monitor mix on stage. Built on the proven evolution wireless G4 platform, this UHF in-ear monitoring system pairs a half-rack stereo transmitter with a rugged bodypack receiver and IE 4 earphones. With up to 42 MHz of switching bandwidth and up to 16 compatible channels, it scales cleanly for houses of worship, auditoriums, and touring productions. Available in A (516–558 MHz), A1 (470–516 MHz), and G (566–608 MHz) frequency bands.

Product Description

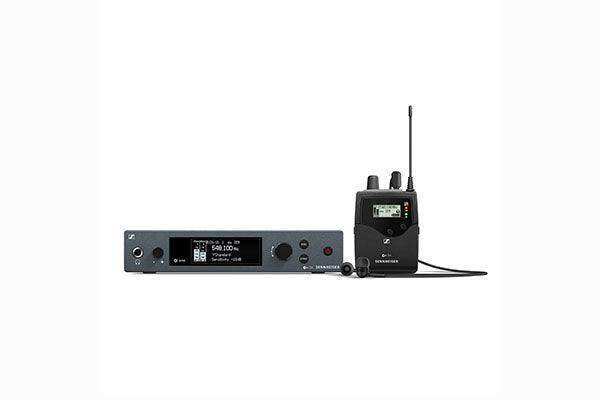

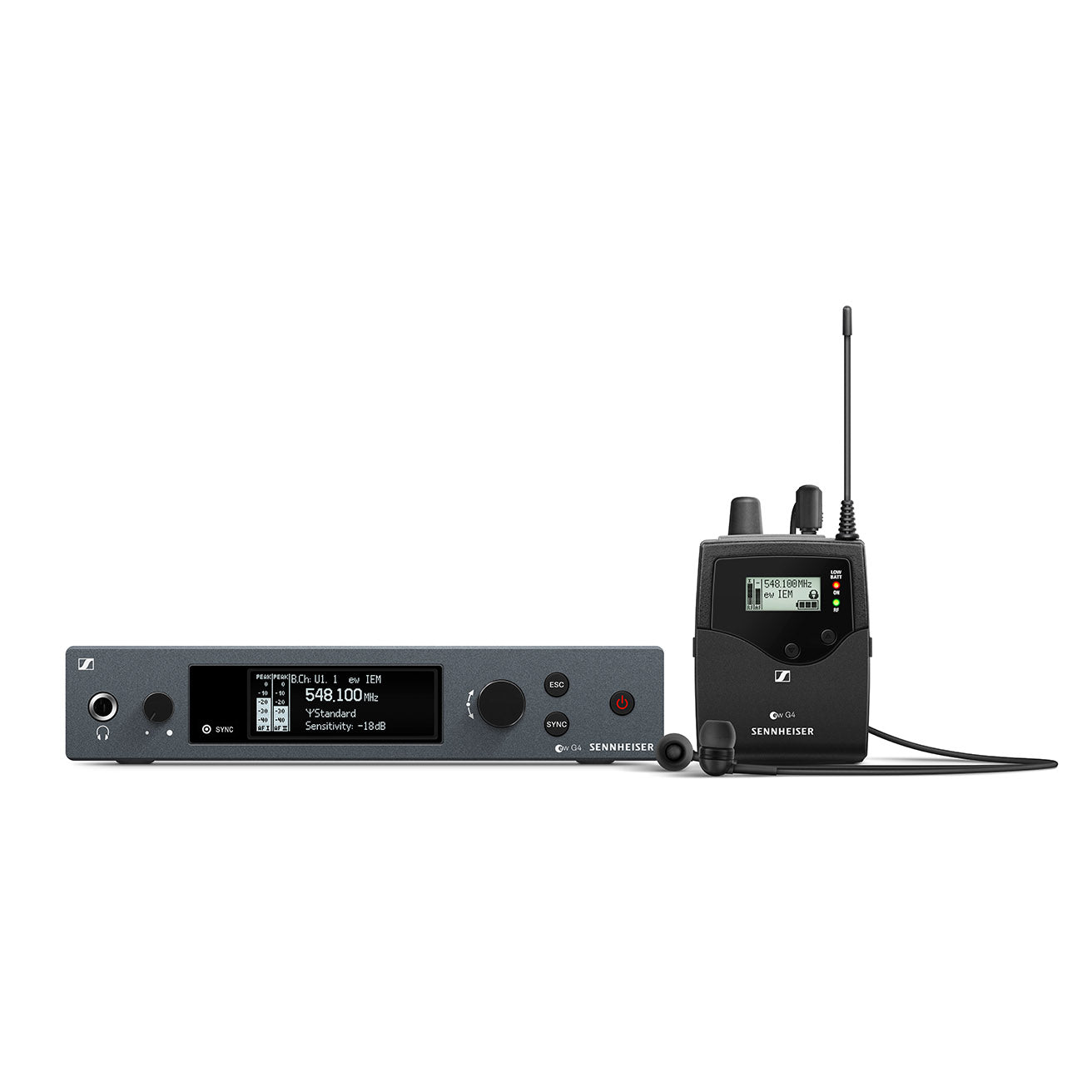

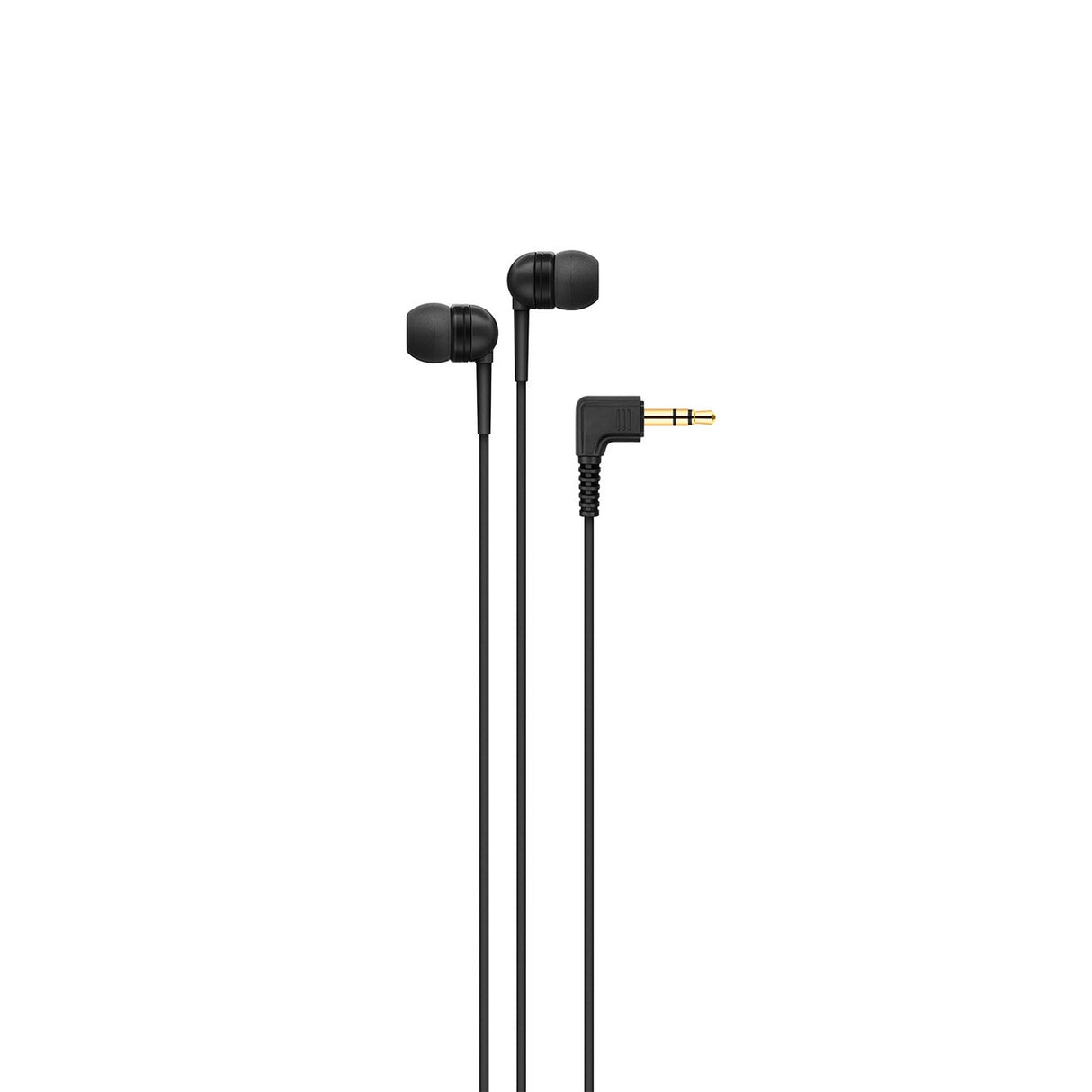

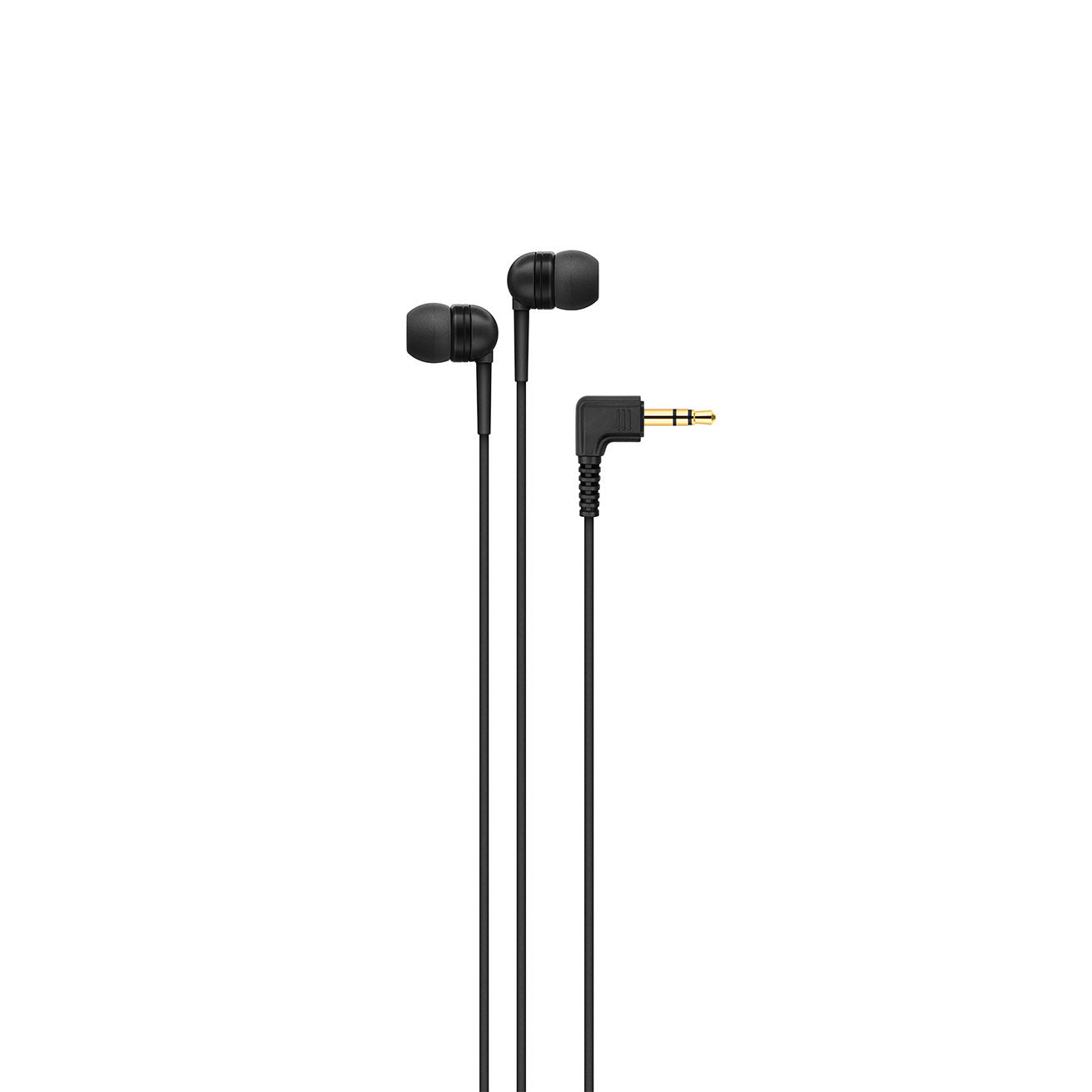

The EW IEM G4 set includes the SR IEM G4 stereo transmitter, the EK IEM G4 stereo bodypack receiver, IE 4 earphones, a rod antenna, and a GA 3 rackmount kit for immediate rack installation. The transmitter's full-metal housing and backlit OLED display give engineers direct control over frequency, RF power, and audio metering, while infrared sync lets the transmitter configure the receiver in seconds. Compatibility with Sennheiser's Wireless Systems Manager (WSM) software supports coordinated frequency allocation across larger multi-channel deployments.

The system tunes across a stable UHF range with up to 1,680 selectable frequencies in 25 kHz steps, and the Sennheiser HDX compander delivers clear, low-noise audio across the full spectrum. Switchable RF output power (10/30/50 mW, subject to regional regulations) and a transmission range of up to 100 m / 300 ft provide flexibility for stages of any size. The bodypack adds a switchable high-boost and adjustable limiter to protect performers' hearing. For multi-performer rigs, expand RF distribution with the AC 3200-II antenna combiner and a A 5000-CP directional antenna. See more in our Sennheiser collection.

Key Features

• Complete Monitoring Set — Includes SR IEM G4 transmitter, EK IEM G4 bodypack receiver, IE 4 earphones, and GA 3 rackmount kit.
• Wide 42 MHz Bandwidth — Up to 1,680 tunable frequencies and up to 16 compatible channels for reliable multi-system coordination.

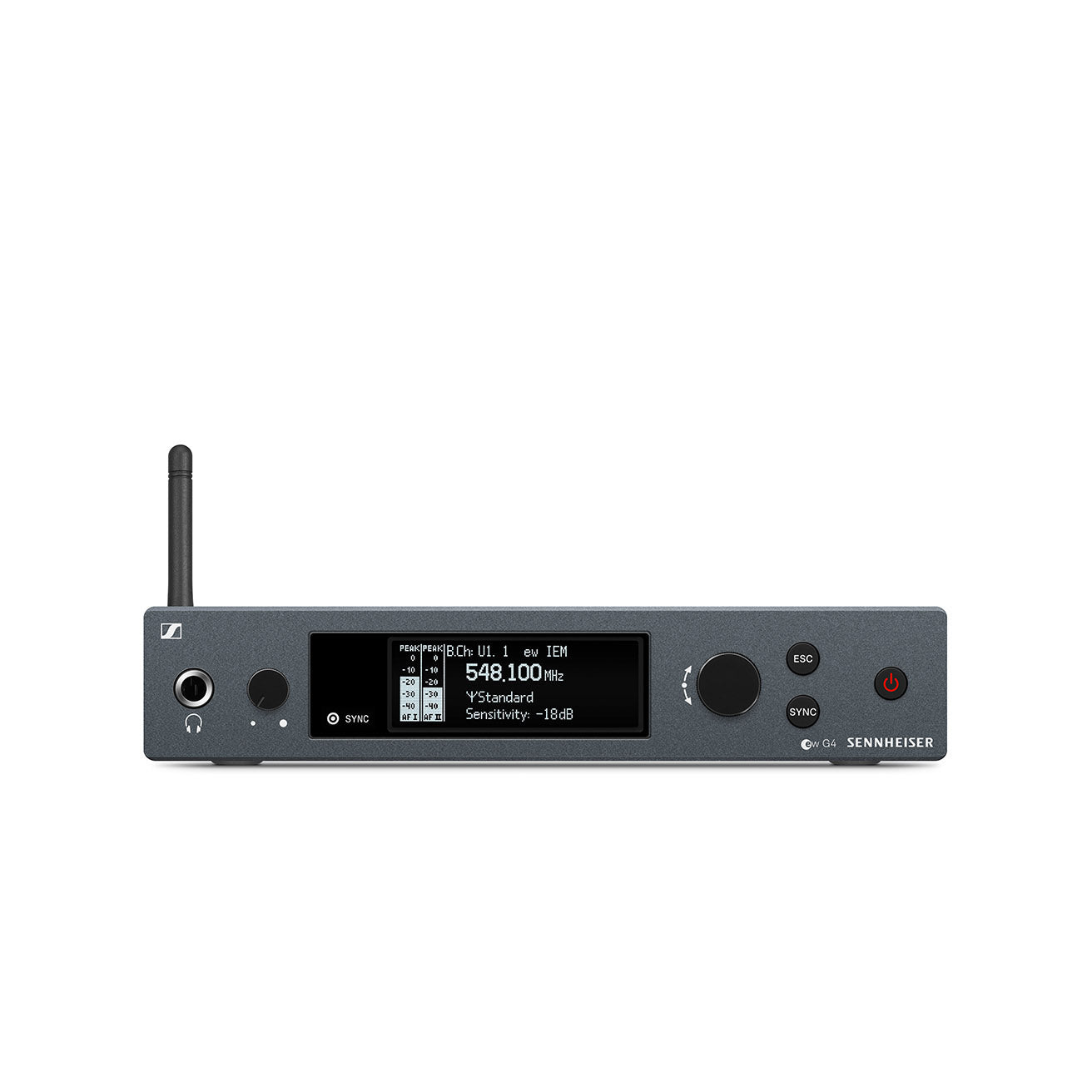

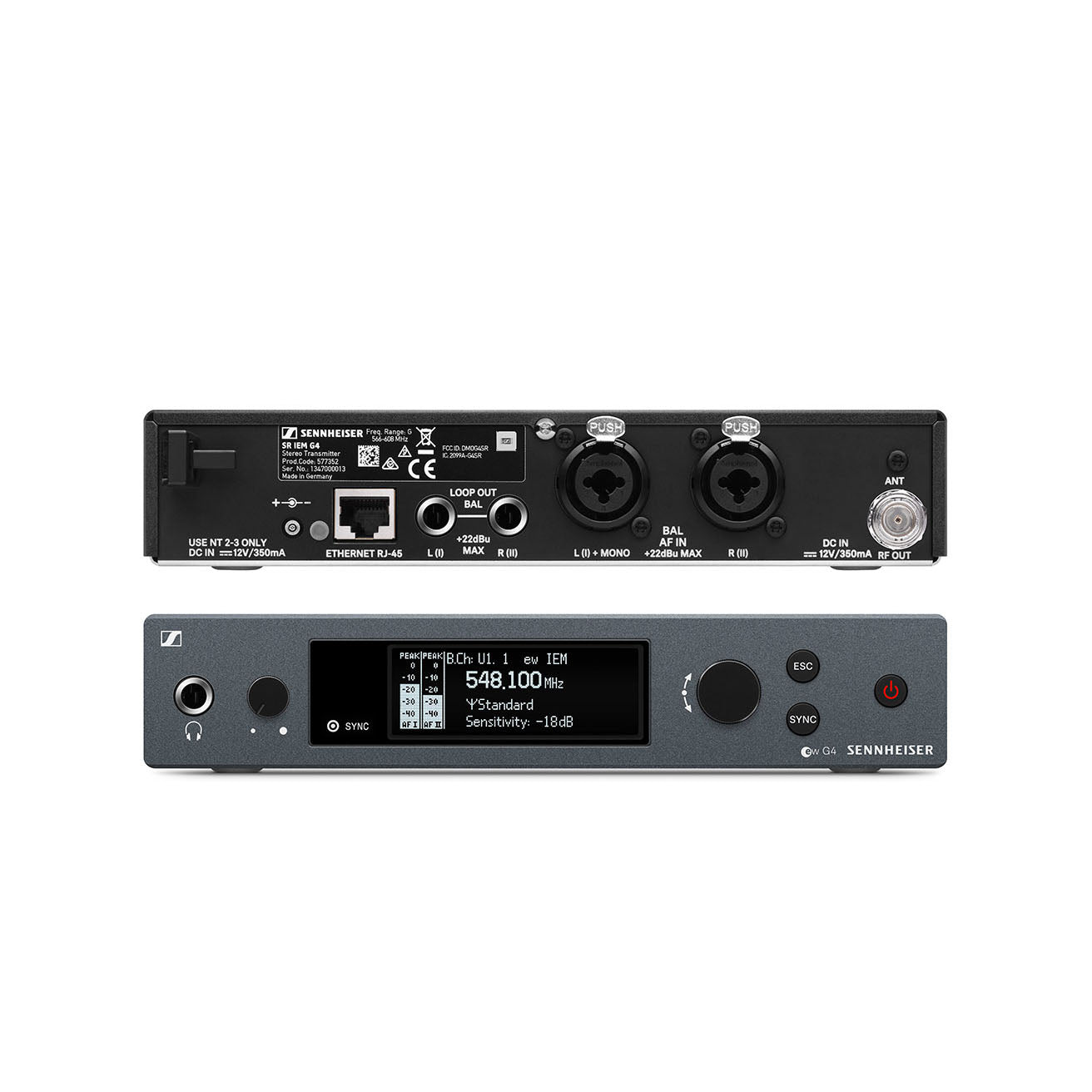

• Half-Rack Metal Transmitter — Full-metal housing with backlit OLED display for clear control and metering.
• Infrared Sync — Fast, error-free frequency setup between transmitter and receiver.
• Switchable RF Power — 10/30/50 mW output (region-dependent) for coverage up to 100 m / 300 ft.
• Sennheiser HDX Compander — Delivers clear, low-noise stereo audio across the frequency spectrum.

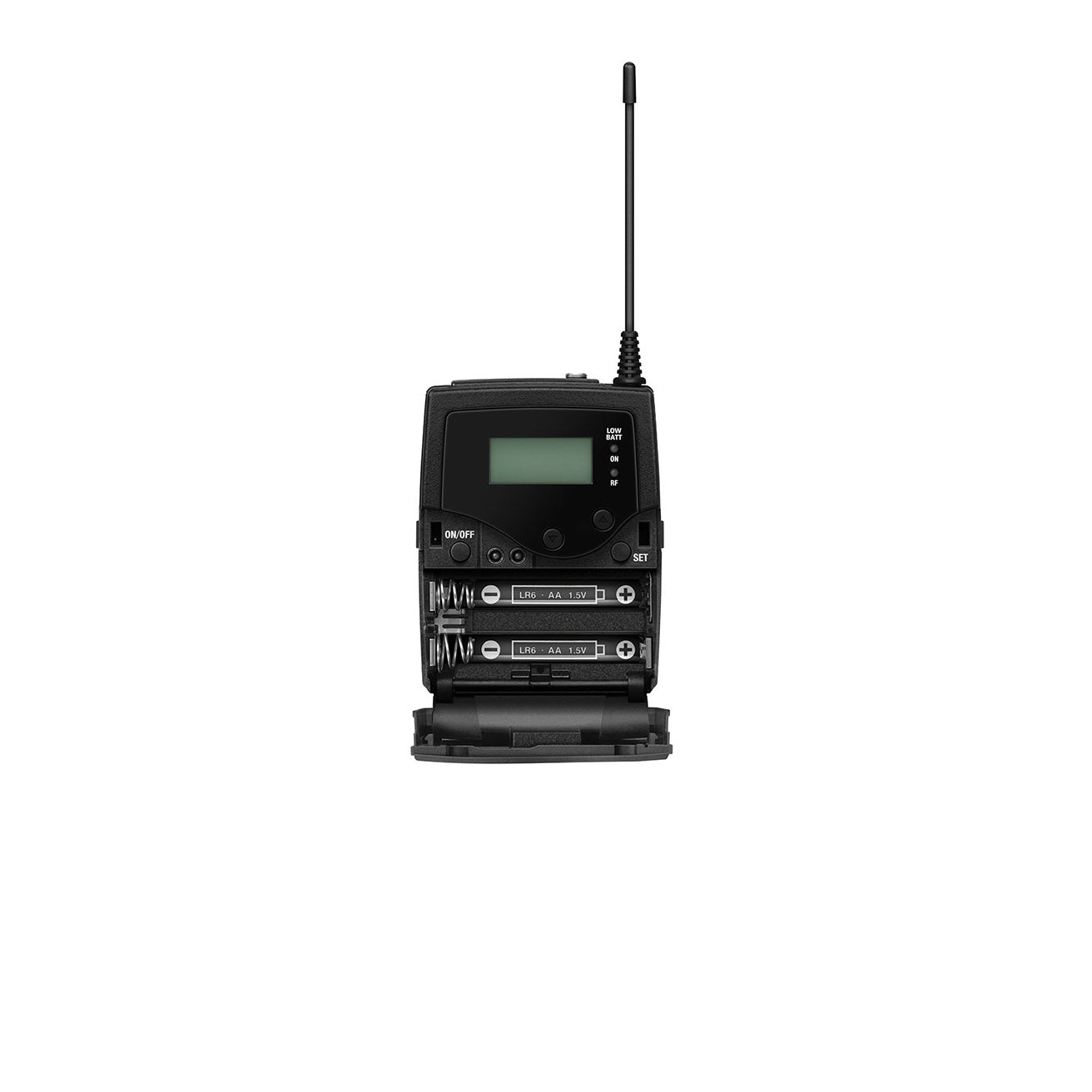

• Performer Protection — Switchable high-boost and adjustable limiter safeguard hearing on stage.
• WSM Software Support — Integrates with Sennheiser Wireless Systems Manager for coordinated frequency planning.

Typical Applications

• Houses of worship with live stage monitoring
• Auditoriums and performance venues
• Touring and live production
• Broadcast studios
• All-hands rooms and multi-purpose rooms with live audio

Technical Specifications

Frequently Asked Questions

How many performers does one EW IEM G4 set support?
One set supports a single monitor mix for one performer. Add transmitters and receivers, plus an antenna combiner, to scale to multiple performers.

Which frequency band should I choose?
Select the band (A, A1, or G) that best avoids local TV and RF congestion in your region. Our team can help coordinate frequencies for your venue.

Can I rack-mount the transmitter?
Yes. The included GA 3 rackmount kit lets you install the half-rack transmitter in a standard 19" rack.

How do I set the receiver frequency?
The transmitter syncs settings to the receiver via infrared, so setup is fast and consistent across your system.

Is it compatible with other Sennheiser wireless gear?
It operates on the evolution wireless G4 platform and integrates with Sennheiser antenna distribution and WSM control software for larger deployments.

What warranty and support are included?
The system carries Sennheiser's manufacturer warranty. Contact Creation Networks for integration support and current warranty terms.
