Sennheiser EW-DX MKE 2 SET Dual-Channel Digital Wireless System with Two Omni Lavalier Mics

Availability: Call for Availability
Availability: Direct Ship
Sennheiser SKU: 509314
No reviews
Model: EW-DX MKE 2 SET (Q1-9: 470.2 - 550 MHz)
Price:
$2,799.00 $3,299.00

Description

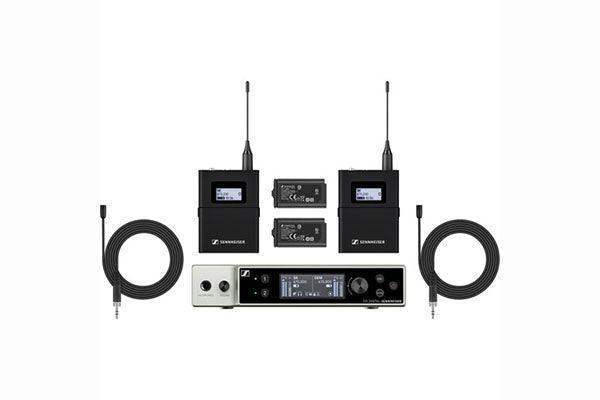

Rigorously engineered to meet the needs of demanding professionals working in business and educational settings, houses of worship, or on stage, the Sennheiser EW-DX MKE 2 SET is a dual-channel digital UHF wireless system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality. This configuration includes a dual-channel, 1/2-rack receiver and two bodypack transmitters with subminiature MKE 2 omnidirectional lavalier mics.



With a remarkable 134 dB dynamic range on the transmitters, the mics can handle just about any input level you throw at them. The wide 80 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups. The EW-DX is backward-compatible with EW-D components.

  • For Two Presenters or Performers
  • 2 Bodypack Transmitters, e-Ink Displays
  • 2 MKE 2 Omnidirectional Lav Mics
  • 2-Channel Diversity Receiver
  • Wide 80 MHz Bandwidth, 3200 Frequencies
  • 134 dB of Dynamic Range
  • AES-256 Encryption, RJ45 Networking
  • Set Up/Operate from Phone via Bluetooth
  • 12-Hour Rechargeable Battery / 8-Hour AA
  • Expandable to 269 Channels/330' Range
Wireless Technology Digital UHF
Included Transmitters 2x Bodypack
Diversity Yes
Max Operating Range 328.1' / 100 m (Line of Sight)
Receiver Type Tabletop / Rackmount
Microphone Type Lavalier
Polar Pattern Omnidirectional
System
Wireless Technology Digital UHF
Number of RF Channel Frequencies 3200
Included Transmitters 2x Bodypack
Diversity Yes
RF Frequency Band Q1-9: 470.2 to 550 MHz
RF Bandwidth 80 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m (Line of Sight)
Max Transmitters per Band 269
Built-In Recorder No
Mobile App Compatible Yes: Android & iOS
App Name: Smart Assist
Functionality: Remote Control
Bluetooth 5.1 LE
Bluetooth Operating Distance 120' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution 24-Bit
Latency 1.9 ms
Dynamic Range 134 dB
Encryption AES 256
Receiver
Receiver Type Tabletop / Rackmount
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 U (1/2 Rack)
Antenna 2x Detachable BNC 1/4 Wave Rod (Rear-Mount)
Number of Audio Channels 2
Audio I/O 2x XLR 3-Pin Male Balanced Output
2x 1/4" TS Female Unbalanced Output
Audio Output Level +18 dBu (Max)
+12 dBu (Max)
Frequency Response 20 Hz to 20 kHz +3 dB
Network I/O 1x RJ45
Word Clock I/O No
USB/Lightning Connectivity No
RF Output Power 10 mW (EIRP)
Power Requirements AC/DC Power Adapter, PoE
AC/DC Power Adapter 11 to 13 VDC (Included)
Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 12 VDC
Display & Indicators 1x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Dimensions 8.3 x 1.7 x 7.4" / 212 x 44 x 189 mm
Weight 2.2 lb / 1 kg (without Antenna)
Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW
10 mW
Audio I/O 1x 1/8" / 3.5 mm TRS Female Input (Locking)
Muting Mute Switch
Audio Input Level 2 to 4.35 V
Auto-Level/Gain No
Frequency Response 20 Hz to 20 kHz -3 dB
Sync Method Bluetooth
Antenna 1x Fixed Flexible Whip (Beltpack)
Power Requirements Battery
Battery Type 2x AA (Not Included)
1x Sennheiser Battery Pack (Included)
Transmitter Battery Life 8 Hours (Alkaline)
12 Hours (Sennheiser Battery Pack)
Display & Indicators 1x Backlit LCD (Battery Status, Mute)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Dimensions 2.5 x 3.3 x 0.8" / 63 x 85 x 20 mm
Weight 4.2 oz / 120 g (without Batteries)
Microphone
Microphone Type Lavalier
Color Black
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 20 Hz to 20 kHz
Maximum SPL 142 dB SPL
Sensitivity 5 mV/Pa at 1 kHz
Output Connector 1x 1/8" / 3.5 mm TRS Male (Locking, on Attached Cable)
Cable Length 5.2' / 1.6 m
Operating Voltage 7.5 V
