Sennheiser EW-DX EM 4 DANTE Four-Channel Digital Rackmount Receiver with Dante

Availability: Call for Availability
Availability: Direct Ship
Sennheiser SKU: 509370
No reviews
Model: Q1-9 (470.2 - 550 MHz)
Price:
$3,299.00 $3,899.00

Description

The Sennheiser EW-DX EM 4 DANTE is four-channel digital wireless receiver with Dante networking capabilities housed in a rugged, all-metal single-rackspace chassis built to withstand the rigors of professional use and rigorously engineered to meet the needs of demanding professionals working in business and educational settings, houses of worship, or on stage.

The wide 80 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups. The EW-DX EM 4 DANTE receiver is compatible with the EW-DX bodypack and handheld transmitters and backward-compatible with EW-D components.

 Reliable Wireless Performance with More Channels via Link Density Mode
  • The EW-DX EM4 DANTE operates in the UHF band, far away from potential Wi-Fi interference in the 2.4 GHz band.
  • The UHF transmission greatly enhances range (up to 330') and the wide 80 MHz bandwidth gives you the ability to find a clean channel from 3200 available frequencies.
  • Intelligent Switching Diversity offers effective protection against multipath and other anomalies that cause RF interference. The system compares incoming signals on two independent antennas and receiver circuits to ensure optimal wireless quality. The receiver switches between antennas only during header data as to never affect the audio information.
  • Sennheiser's equidistant tuning grid removes the need for frequency coordination and enables you to operate up to 134 mic channels simultaneously.
  • For complex systems requiring even more mics, engage the Link Density mode for up to 269 channels on the same system.
  • AES-256 encryption keeps your transmissions private and safely protected from unauthorized users.
 Easy-to-Use Receiver with Fast and Intuitive Interface

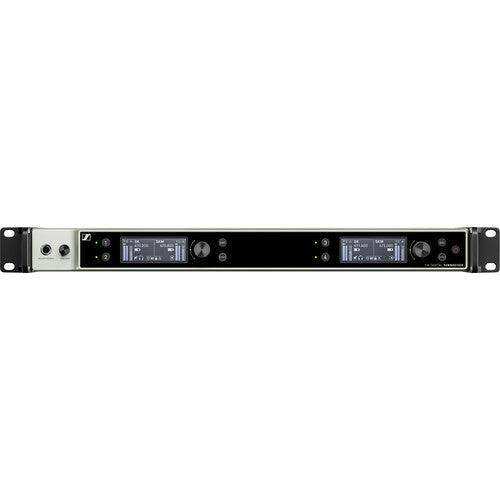

  • The EW-DX EM 4 DANTE receiver offers intuitive front-panel controls and dual high-contrast OLED screens with meters for RF, battery status of the associated transmitter, and audio output that make setup a breeze.
  • The auto-scan function automatically seeks out the cleanest available frequency for you.
  • The receiver pairs with the transmitter via Bluetooth from up to 120' away, enabling you to quickly pair the mic directly from the stage without having to bring it close to the receiver.

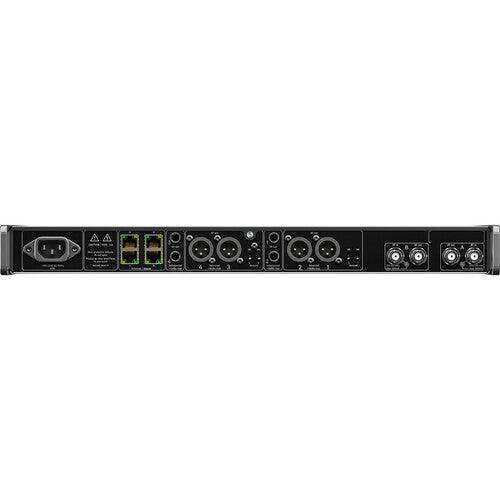

  • The back panel houses four balanced XLR outputs and four unbalanced 1/4" outputs for direct connection to any PA system or mixing board.
  • The unit features a built-in universal power supply and comes with a kit for rackmount installation.
 Advanced Control from Your Computer, Phone or Tablet + Dante Audio Networking
  • With the Smart Assist app (free download available separately) installed on your Android/iOS phone/tablet, the power of Bluetooth connectivity puts full control of the EW-D EM 4 DANTE right in the palm of your hand. Use your mobile device to connect via Bluetooth for efficient operation and monitoring of your system.
  • Sennheiser's Control Cockpit software for Windows allows you to view all the devices across your network, check the microphones in use, monitor battery life, troubleshoot problems, and adjust settings.
  • For larger setups, Sennheiser's Wireless Systems Manager provides frequency planning and coordination and real-time monitoring of RF and audio levels. It also allows you to import frequency scans from third-party devices and conduct walk tests and receiver bandwidth scans.
  • The system supports third-party interface plug-ins for easy integration into any controlled environment.
  • Dante ports allow you to integrate the receiver into your Dante network and distribute the digital audio anywhere you need it in your facility.
 Maximize the Wireless Reliability of Your Receiver
  • The rear-mounted, 1/4-wave detachable antennas can be upgraded to longer, 1/2-wave dipole antennas (available separately) for added range and reliability; you can also choose an ADA UHF Active Antenna or the AWM Wallmount Antenna as well.
  • For setups with multiple receivers, the EW-D ASA Splitter allows you to split and distribute a dual-antenna signal across four receivers for clearer reception without the intermodulation problems that can occur when multiple antennas are used.
  • For EW-DX Wireless Systems
  • 1-RU, 4-Channel Receiver with Dante
  • Switching Diversity, Equidistant Grid
  • Wide 80 MHz Bandwidth, 3200 Frequencies
  • Link Density Mode for High Channel Count
  • Bright OLED Display
  • Set Up/Operate from Phone via Bluetooth
  • Dante & RJ45 for Networked Audio/Control
  • Secure AES 256 Encryption
  • Expandable to 269 Channels/330' Range
Wireless Technology Digital UHF
Diversity Yes
Max Operating Range 328.1' / 100 m (Line of Sight)
Receiver Type Tabletop / Rackmount
Number of Audio Channels 4
Audio I/O 4x XLR 3-Pin Male Balanced Output
4x 1/4" TS Female Unbalanced Output
1x 1/4" TRS Female Unbalanced Headphone Output
Network I/O 4x RJ45
Power Requirements AC Input
Number of RF Channel Frequencies 3200
Diversity Yes
RF Frequency Band Q1-9: 470.2 to 550 MHz
RF Bandwidth 80 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m (Line of Sight)
Max Transmitters per Band 269
Mobile App Compatible Yes: Android & iOS
Bluetooth 5.1 LE
Bluetooth Operating Distance 120' / 36.6 m (Transmitter Sync, App Control)
Latency 1.9 ms
Receiver
Receiver Type Tabletop / Rackmount
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 U (Full Rack)
Antenna 2x Detachable BNC 1/4 Wave Rod (Rear-Mount)
Number of Audio Channels 4
Audio I/O 4x XLR 3-Pin Male Balanced Output
4x 1/4" TS Female Unbalanced Output
1x 1/4" TRS Female Unbalanced Headphone Output
Audio Output Level +18 dBu (Max)
+12 dBu (Max)
Frequency Response 20 Hz to 20 kHz +3 dB
Network I/O 4x RJ45
Network Protocols Dante, TCP IPv4, TCP IPv6
Word Clock I/O No
USB/Lightning Connectivity No
Standalone Audio Interface Capable No
RF Output Power 10 mW (EIRP)
Power Requirements AC Input
Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 2x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
