Sennheiser EW-DP ENG SET Camera-Mount Digital Wireless Combo Microphone System

Product Overview

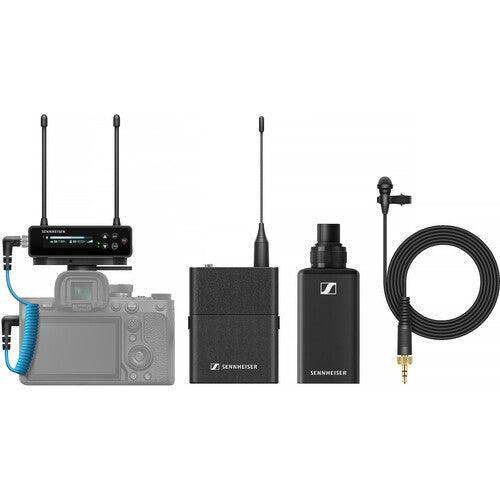

The Sennheiser EW-DP ENG SET is a professional camera-mount digital wireless combo system built for electronic news gathering, documentary production, and field videography requiring broadcast-quality audio from multiple source types. The ENG set includes the EW-DP EK camera-mount receiver, the EW-DP SK bodypack transmitter with ME 2 omnidirectional lavalier, and the EW-DP SKP plug-on transmitter that accepts any standard XLR microphone with optional 48V phantom power and features an integrated backup recorder. All components operate on the Evolution Wireless Digital Portable platform, delivering 24-bit audio with a 134 dB dynamic range and 1.9 ms latency over a professional UHF frequency range. The system is available in multiple frequency variants including Q1-6 (470–526 MHz), R1-6 (520–576 MHz), and S1-7 (606–662 MHz) to accommodate regional licensing requirements.

Product Description

The EW-DP ENG SET addresses the practical reality of news and documentary production: sources change rapidly, and a field crew cannot afford to carry multiple separate wireless systems for lavalier and shotgun/handheld mic scenarios. By including both a bodypack transmitter with the ME 2 lavalier and the SKP plug-on transmitter that accepts any XLR microphone, this single system covers the full range of common field recording situations. Note that while two transmitters are included, only one can be active at a time on the single-channel EK receiver — the configuration is intended for quick source switching between setups rather than simultaneous dual-channel recording. The EW-DP EK receiver mounts to a camera hot shoe, cold shoe, or 1/4"-20 threaded mount, and outputs audio via a locking 3.5mm TRS unbalanced output along with a 3.5mm headphone monitor output. A USB-C port on the receiver handles charging and can accept bus power when connected to the camera or a power bank. The remarkable 134 dB dynamic range of the EW-DP platform eliminates the need for manual gain setting on the transmitters — the system handles loud interview subjects, quiet ambient recordings, and everything in between without clipping or noise floor issues. The receiver's 56 MHz bandwidth and 2,240-frequency equidistant tuning grid, inherited from Sennheiser's professional Digital 6000 series architecture, supports reliable performance even in dense RF environments like convention centers, sporting events, and urban news assignments. The SKP plug-on transmitter includes an integrated backup recorder, providing a safety net for critical recordings where RF signal issues could otherwise result in unusable audio. Bluetooth 5.1 LE connects all components to the Sennheiser Smart Assist app on Android or iOS, allowing remote control of settings, gain adjustments, battery status monitoring, and Smart Notifications that alert users to potential RF issues before they cause problems. Transmitter battery life reaches 12 hours on the included rechargeable battery pack or on standard AA alkaline cells; the receiver operates for 7 hours on its own battery pack. The metal housing of the receiver and transmitters provides field-duty durability appropriate for ENG and documentary production environments.

Key Features

• Dual-Transmitter ENG Configuration — EW-DP SK bodypack with ME 2 lavalier and EW-DP SKP plug-on transmitter (XLR input) provide complete source flexibility in a single kit; one active at a time.
• SKP Plug-On Transmitter with 48V Phantom Power — Powers any condenser microphone via XLR and includes an integrated backup recorder for critical field recording safety.
• ME 2 Omnidirectional Lavalier — Professional clip-on microphone with 5.2 ft cable; omnidirectional pickup provides consistent level regardless of head movement.
• Camera-Mount EK Receiver — Mounts via hot shoe, cold shoe, or 1/4"-20 thread; dual fixed 1/4-wave antennas and intelligent switching diversity for stable reception.
• 134 dB Dynamic Range, 24-Bit Audio — True digital UHF transmission with 1.9 ms latency; no input sensitivity adjustment required across the full dynamic range.
• OLED Display on Receiver — Clear status readout of frequency, battery level, RF signal strength, and audio level in bright or dim field conditions.
• 56 MHz Bandwidth, 2,240 Frequencies — Equidistant tuning grid with auto-scan; up to 58 simultaneous channels in the same frequency band.
• Bluetooth Smart Assist App — Remote control, gain adjustment, battery monitoring, and RF Smart Notifications via Android or iOS (Sennheiser Smart Assist app).
• USB-C Charging and Bus Power — Receiver charges via USB-C and can accept bus power from camera or power bank in the field.
• 12-Hour Transmitter / 7-Hour Receiver Battery Life — Full-day operation on included rechargeable battery packs or AA alkaline batteries.
• Dual Output on Receiver — Locking 3.5mm TRS unbalanced output for camera feed plus dedicated 3.5mm headphone output for independent monitoring.
• Multiple Frequency Variants — Available in Q1-6, R1-6, and S1-7 to match regional licensing requirements across North America and beyond.

Typical Applications

• Electronic news gathering (ENG) requiring fast source switching between lavalier and XLR shotgun microphone
• Documentary filmmaking and field interviews with solo or small crews
• Corporate video production with varied shooting environments
• Sports and outdoor event coverage requiring robust RF performance and long battery life
• Multi-camera setups where the plug-on transmitter provides wireless connectivity for a boom or shotgun mic on a secondary camera
• Critical field recordings where the SKP's integrated backup recorder provides a safety net

Technical Specifications

Frequently Asked Questions

Q: Can I use the bodypack and plug-on transmitters simultaneously for dual-channel recording?

No. The EW-DP ENG SET includes a single-channel EK receiver, so only one transmitter can be active at a time. The two transmitters are intended to cover different recording scenarios — the bodypack with lavalier for interview or presenter applications, and the plug-on for connecting a boom or shotgun microphone — with the operator switching between them as the situation requires.

Q: What microphones can I use with the EW-DP SKP plug-on transmitter?

The SKP plug-on transmitter accepts any standard XLR microphone. It provides 48V phantom power for condenser microphones and supports microphone, instrument, and line-level inputs. This makes it compatible with professional shotgun microphones, handheld dynamic microphones, condenser microphones, and line-level sources such as mixing board outputs.

Q: How does the built-in recorder on the SKP plug-on transmitter work?

The SKP plug-on transmitter includes an integrated flash recorder that captures a backup recording directly on the transmitter in case the wireless RF signal is interrupted or unusable. This backup recording is accessible after the shoot and provides a safety net for critical field recordings. Check current Sennheiser documentation for storage card requirements and recording format details.

Q: Which frequency variant should I buy for use in the United States?

For US use, the Q1-6 (470–526 MHz) variant is commonly available and appropriate for wireless microphone use under FCC rules. However, frequency availability varies by location and is subject to change. Always verify that your chosen frequency band is licensed or license-exempt for wireless microphone use in your specific geographic area before purchasing. R1-6 and S1-7 variants may also be appropriate depending on local RF conditions.

Q: What camera inputs does the EW-DP EK receiver connect to?

The EW-DP EK receiver outputs via a locking 3.5mm TRS connector. The included cable connects to cameras with a 3.5mm mic input. For cameras with XLR inputs only, a 3.5mm-to-XLR adapter cable would be required (not included). The system is designed primarily for DSLR, mirrorless, and video cameras with 3.5mm mic inputs.

Q: How do I control the EW-DP ENG SET remotely?

Download the free Sennheiser Smart Assist app on Android or iOS. Bluetooth 5.1 LE connects the app to the receiver, allowing you to adjust gain, monitor battery levels, assign frequencies, and receive Smart Notifications about RF interference or low battery conditions without physically accessing the mounted receiver.

Q: What is the difference between the EW-DP ENG SET and the standard EW-DP sets that include only one transmitter?

Standard EW-DP sets typically include either a bodypack transmitter (with lavalier) or a plug-on transmitter, but not both. The ENG SET specifically bundles both the SK bodypack and the SKP plug-on transmitter, providing field crews with both options in a single purchase. This is particularly valuable for ENG and documentary crews who regularly switch between lavalier and boom/shotgun mic setups.

Q: Can the EW-DP receiver be powered without batteries?

Yes. The receiver includes a USB-C port that supports bus power, allowing it to run directly from a camera USB port, power bank, or USB power adapter. This extends effective operating time when an external power source is available and reduces the need to manage receiver batteries during extended shoots.
