Sennheiser EW-DP EK Camera-Mount Digital Wireless Receiver

Product Overview

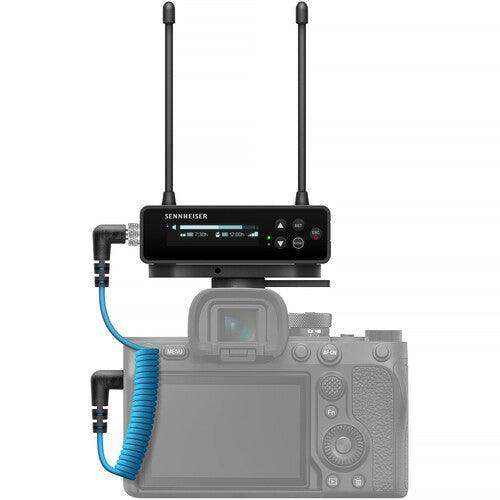

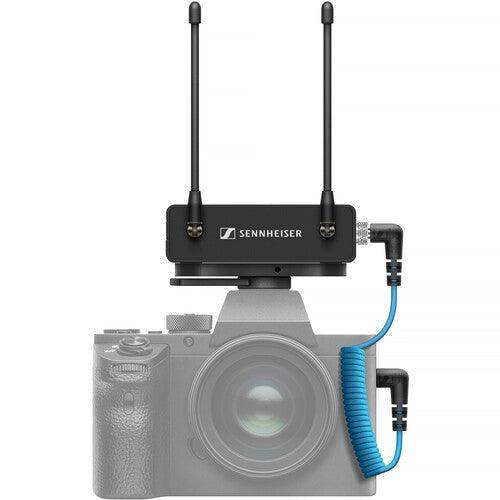

The Sennheiser EW-DP EK is a standalone camera-mount digital wireless receiver for the EW-DP platform, sold separately for integrators, videographers, and production teams building custom wireless rigs. It accepts signals from any EW-D SK bodypack, EW-D SKM-S handheld, or EW-D SKP plug-on transmitter, delivering 24-bit digital audio at just 1.9 ms latency directly to your camera or recording device. Designed for solo operators and professional crews alike, the EK combines pro-grade wireless performance with intuitive smartphone setup via the Sennheiser Smart Assist app. Its compact camera-mount form factor fits hot shoes and 1/4"-20 threads, keeping your rig clean and cable-efficient in the field.

The EW-DP EK operates across a wide 56 MHz UHF bandwidth with 2,240 selectable frequencies and intelligent switching diversity reception using two internal 1/4-wave rod antennas, ensuring rock-solid performance even in congested RF environments. Auto-scan identifies and locks onto the cleanest available frequency automatically, reducing setup time on location. The front-facing OLED display provides at-a-glance system status and easy menu navigation at any angle or lighting condition — critical for documentary and ENG work. A 3.5 mm locking TRS output connects directly to camera mic inputs, while a dedicated 3.5 mm headphone output lets operators monitor audio in real time without breaking the signal chain. For power, the EK accepts two AA batteries or the included BA 70 Sennheiser lithium-ion rechargeable pack for up to 7 hours of operation. USB-C bus power from a camera body, power bank, or AC adapter enables indefinite runtime during scripted shoots. Bluetooth 5.1 LE allows wireless configuration and Smart Notifications — the app surfaces troubleshooting guidance and system alerts so issues are caught before they become problems. The EW-DP EK is expandable to 58 simultaneous channels within a single band, making it suitable for multi-mic documentary productions and corporate event environments. This receiver is sold without a transmitter; pair it with any compatible EW-DP transmitter available at creationnetworks.net.

Key Features

• Camera-Mount Digital Wireless Receiver — Mounts directly to hot shoe or 1/4"-20 thread for clean, cable-efficient camera rigs.
• True Switching Diversity Reception — Dual 1/4-wave rod antennas with intelligent switching minimize dropouts in challenging RF environments.
• 56 MHz Bandwidth / 2,240 Frequencies — Wide tuning range with auto-scan for clean frequency coordination in any venue.
• 24-Bit Digital Audio at 1.9 ms Latency — Broadcast-quality 134 dB dynamic range with imperceptible delay for natural performance capture.

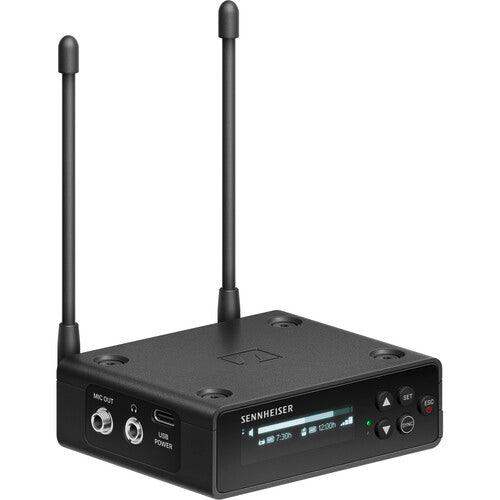

• OLED Display — Front-facing screen for easy menu navigation and system status at any angle or lighting condition.
• Sennheiser Smart Assist App — Bluetooth 5.1 LE remote setup, frequency scan, gain adjustment, and Smart Notifications on Android and iOS.
• 3.5 mm Locking TRS Audio Output — Direct connection to camera mic inputs; locking connector prevents accidental disconnection on the move.
• 3.5 mm Headphone Monitoring Output — Real-time audio monitoring without interrupting the camera feed.
• USB-C Bus Power — Draw power from camera, power bank, or AC via USB-C for unlimited runtime on long shoots.
• 7-Hour Rechargeable Battery Life — Included BA 70 lithium-ion pack or 2x AA batteries for field flexibility.
• Up to 58 Simultaneous Channels — Scalable to full multi-mic productions within a single frequency band.
• Multiple Mounting Options — Hot shoe, 1/4"-20 female thread, and belt clip included for versatile deployment.

Typical Applications

• Camera-mount wireless receiver for ENG, documentary, and run-and-gun video production
• Custom wireless system builds for integrators pairing with existing EW-DP transmitters
• Replacement receiver for existing EW-DP rigs
• Multi-camera interview setups where each camera needs its own dedicated receiver
• Solo videography and content creation requiring compact, self-powered wireless audio
• Corporate event and live streaming production with up to 58 simultaneous channels
• Field production in RF-dense urban environments requiring intelligent auto-scan

Technical Specifications

Frequently Asked Questions

Q: Which transmitters are compatible with the EW-DP EK?

The EW-DP EK is compatible with EW-D SK bodypack, EW-D SKM-S handheld, and EW-D SKP plug-on transmitters. Ensure the transmitter and receiver share the same frequency band (Q1-6, R1-6, or R4-9).

Q: Does this listing include a transmitter?

No. The EW-DP EK is a standalone receiver sold without a transmitter. This is ideal for integrators adding a receiver to an existing rig or replacing a receiver. Compatible transmitters are available at creationnetworks.net.

Q: Can I power the EW-DP EK from my camera?

Yes. The USB-C port supports bus power, so the EK can draw power directly from a camera's USB output, a power bank, or an AC adapter for unlimited runtime.

Q: How do I set up the EW-DP EK with a transmitter?

Use the Sennheiser Smart Assist app (free, Android and iOS) to scan for clean frequencies and sync the receiver and transmitter over Bluetooth in seconds. You can also pair them manually using the front-panel OLED menu.

Q: How many EW-DP EK receivers can operate simultaneously at one location?

Up to 58 EW-DP systems can operate simultaneously within a single frequency band, making the platform suitable for medium to large multi-mic productions.

Q: What audio connector does the EW-DP EK output use?

The main output is a 3.5 mm locking TRS (unbalanced), compatible with standard camera mic inputs. The locking collar prevents accidental disconnection during active shooting.

Q: What is the battery life of the EW-DP EK?

The included BA 70 Sennheiser rechargeable lithium-ion battery pack provides approximately 7 hours of runtime. Two AA batteries are also accepted as an alternative power source.

Q: Can the EW-DP EK be mounted on a belt or bag instead of a camera?

Yes. An included belt clip allows the EK to be worn on a belt or attached to a bag rig, offering flexibility beyond camera mounting for bag-based or remote audio setups.
