Sennheiser EW-D CI1 SET (R1-6) Digital Wireless Instrument System (R1-6: 520 to 576 MHz) - 508731

Product Overview

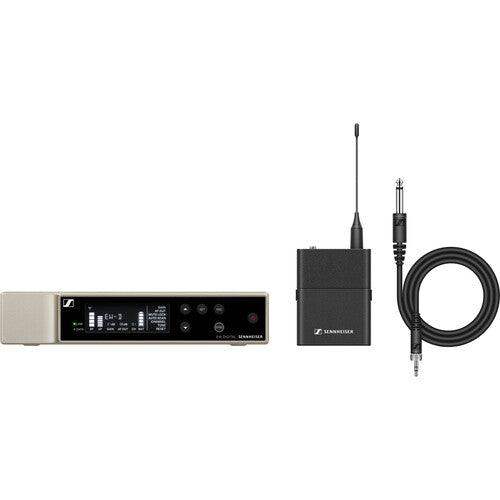

The Sennheiser EW-D CI1 SET (R1-6) is a professional-grade digital wireless instrument system operating in the R1-6 frequency band (520–576 MHz), purpose-built for guitar players, bassists, and instrumentalists who demand studio-quality sound on stage. It pairs the EW-D rackmount receiver with the SKP D1 bodypack transmitter and the CI 1 compact clip-in instrument cable, which plugs directly into any standard 1/4" instrument output for a clean, cable-free signal path. The system delivers 24-bit digital audio with a 134 dB dynamic range and an ultralow 1.9 ms latency — performance benchmarks derived from Sennheiser's flagship Digital 6000 and 9000 series. With Bluetooth-assisted setup via the Sennheiser Smart Assist app and an equidistant tuning grid supporting up to 90 simultaneous channels, the EW-D CI1 SET (R1-6) is as effortless to configure as it is reliable to perform with.

Product Description

At the heart of the EW-D CI1 SET is Sennheiser's EW-D platform — a digital wireless architecture that eliminates the compromises historically associated with entry- and mid-level wireless systems. The CI 1 clip-in cable transmitter clips onto the instrument's strap pin and plugs directly into the guitar or bass output jack, keeping the signal path short and the stage look clean without bulky belt-clip adapters. The 56 MHz bandwidth of the R1-6 band (520–576 MHz) gives access to 2,240 equidistant channel frequencies, all auto-scanned by the receiver so you can lock onto a clean frequency in seconds — even in RF-dense festival and touring environments.

True Digital Diversity reception uses two independent antenna paths to continuously compare incoming signals and select the stronger one, virtually eliminating dropouts caused by RF multipath interference. Because the dynamic range is 134 dB, there is no need to manually adjust input sensitivity at the transmitter — the system handles everything from the softest fingerpicked arpeggios to full-throttle rhythm guitar without clipping or noise. Frequency response is a flat 20 Hz to 20 kHz (±3 dB), preserving the full tonal character of your instrument. Battery life reaches 8 hours on standard AA alkaline cells or 12 hours with the optional Sennheiser rechargeable battery pack, and the SKP D1 transmitter features a dedicated mute switch for silent tuning or between-song breaks. The EW-D receiver's gain range of -3 to +42 dB in 3 dB steps ensures compatibility with virtually any mixer or audio interface input level. Whether you are playing a club gig, a house of worship service, a corporate event, or a large concert stage, the EW-D CI1 SET (R1-6) delivers the dependable, transparent wireless performance Sennheiser is known for.

Key Features

• R1-6 Frequency Band (520–576 MHz) — 56 MHz of usable bandwidth with 2,240 equidistant channel frequencies for reliable operation in busy RF environments.
• CI 1 Clip-In Instrument Cable Transmitter — Plugs directly into a standard 1/4" instrument output jack; no belt-pack adapter required, keeping the stage rig simple and clean.
• 24-Bit Digital Audio — Uncompressed digital transmission preserves the full fidelity and character of your guitar or bass signal.
• 134 dB Dynamic Range — Eliminates the need for manual input-sensitivity adjustment; handles everything from delicate fingerpicking to hard-driven distortion without clipping.
• 1.9 ms Latency — Virtually imperceptible delay maintains a natural feel whether monitoring through in-ears or stage wedges.
• True Digital Diversity Reception — Dual-antenna intelligent switching guards against RF multipath dropouts for a consistently solid wireless link.
• Bluetooth Auto-Setup via Smart Assist App — Pair and configure the system from your iOS or Android device; no menu-diving at the rack required.
• Equidistant Tuning Grid — Up to 90 Simultaneous Channels — Derived from the Digital 6000/9000 platform; eliminates intermodulation and simplifies multi-channel coordination.
• Auto-Scan Channel Selection — The receiver automatically identifies and locks to the cleanest available frequency in the band.
• 8-Hour AA / 12-Hour Rechargeable Battery Life — Flexible power options suit both fly-date touring (standard AAs) and production environments with Sennheiser battery packs.
• Mute Switch on Transmitter — Silent stage transitions and hands-free muting without touching the receiver or console.
• Receiver Gain Range: -3 to +42 dB — Compatible with a wide range of mixers and audio interfaces without additional padding or boosting.

Typical Applications

• Electric guitar and bass players on concert stages and live music venues
• Houses of worship — worship bands and praise team guitarists
• Theater and musical productions requiring clean wireless for pit or stage musicians
• Corporate events and private functions with live instrumental performance
• Festival and multi-act touring where RF coordination across many channels is required
• Broadcast and broadcast-adjacent productions needing low-latency instrument feeds
• Rental production companies stocking professional wireless instrument systems

Technical Specifications

Frequently Asked Questions

Q: What is the CI 1 and how does it connect to my instrument?

The CI 1 is a compact clip-in instrument cable that integrates directly with the SKP D1 bodypack transmitter. One end clips onto the transmitter body and plugs into its input; the other end terminates in a standard 1/4" (6.3 mm) mono jack that plugs directly into your guitar, bass, or other instrument output — the same connection you would use for a regular instrument cable. No separate adapter is needed.

Q: What is the difference between the CI 1 (EW-D) and the Ci1 (EW 500 G4)?

Despite the similar names, these are cables for different wireless platforms. The CI 1 is designed for the EW-D digital platform and carries a digital signal from the SKP D1 bodypack transmitter. The Ci1 is an analog cable for the EW 500 G4 analog platform and is not cross-compatible. Always match the instrument cable to its corresponding wireless system.

Q: How do I choose between the Q1-6, R1-6, and R4-9 frequency bands?

All three bands offer the same audio performance; the difference is the RF operating frequency. Q1-6 (470–526 MHz) is generally a good choice in regions where that spectrum is less congested. R1-6 (520–576 MHz) sits in the middle of the UHF range and is a popular choice for North American venues. R4-9 (552–607 MHz) operates at the higher end of the UHF range. The best choice depends on what frequencies are locally available and interference-free at your venue. Check your regional frequency allocation charts and use the auto-scan feature to confirm a clean channel before performing.

Q: Can I run multiple EW-D CI1 systems simultaneously?

Yes. The equidistant tuning grid supports up to 90 simultaneous transmitters within a single frequency band. The grid design eliminates intermodulation products between channels, which means you can add channels without the complex frequency coordination required by older analog systems.

Q: Does the EW-D CI1 SET require any input-sensitivity adjustment on the transmitter?

No. The 134 dB dynamic range of the EW-D system is wide enough to handle virtually any instrument signal level without clipping or noise floor issues. Unlike analog wireless systems that require careful gain staging at the transmitter, the EW-D handles the full range of guitar and bass output levels automatically.

Q: How is the system set up and controlled?

Initial pairing between the transmitter and receiver is handled via Bluetooth using the free Sennheiser Smart Assist app (available for iOS and Android). Once paired, the receiver auto-scans for the cleanest channel in the band and the transmitter syncs automatically. Basic controls are also accessible directly on the receiver's front panel.

Q: What is the maximum operating range?

The EW-D CI1 SET (R1-6) has a maximum operating range of 328 feet (100 meters) under line-of-sight conditions. Real-world range will vary depending on environmental RF interference, physical obstructions, and antenna placement at the receiver.

Q: Is the EW-D CI1 SET compatible with the Sennheiser rechargeable battery system?

Yes. The SKP D1 bodypack transmitter accepts standard AA alkaline batteries (8-hour runtime) or the optional Sennheiser rechargeable battery pack (12-hour runtime). The rechargeable option is ideal for multi-show touring or production environments where battery management is critical.
