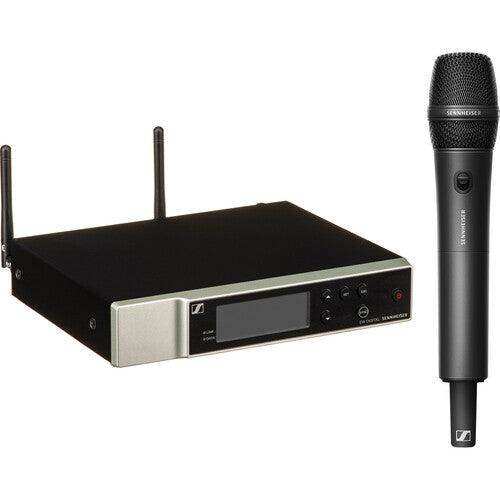

Sennheiser EW-D 835-S SET Digital Wireless Handheld Microphone System with MMD 835 Capsule

Product Overview

The Sennheiser EW-D 835-S SET is a complete, professional digital wireless handheld microphone system that delivers 24-bit broadcast-quality audio for live performance, corporate presentations, houses of worship, and educational venues. Built around the EW-D SKM-S handheld transmitter fitted with an interchangeable MMD 835-1-S dynamic cardioid capsule, paired with the single-channel EW-D EM rackmount receiver, this system harnesses technology derived from Sennheiser's flagship Digital 6000 and 9000 series. With a class-leading 134 dB dynamic range, an equidistant tuning grid supporting up to 90 simultaneous channels, and Bluetooth-powered setup via the free Smart Assist app, the EW-D 835-S SET delivers professional-tier wireless performance that is remarkably fast to deploy and simple to operate.

Product Description

The EW-D EM receiver is a robust 1U half-rack single-channel unit designed for installation in a standard rack or as a standalone desktop unit. Its equidistant tuning grid — a hallmark of Sennheiser's higher-end systems — assigns each of the 2,240 available frequencies an equal spacing across the 56 MHz operating bandwidth, eliminating intermodulation and making frequency coordination completely automatic. Auto-scan identifies and locks onto the cleanest available channel in seconds, and the system can accommodate up to 90 simultaneous wireless links in a single band — more than enough headroom for the most complex multi-mic live event.

The EW-D SKM-S handheld transmitter features a durable metal housing engineered for daily stage use. Its mute switch allows presenters and performers to silence the microphone discreetly, and the transmitter runs up to 12 hours on the included Sennheiser rechargeable battery pack (or 8 hours on standard AA batteries). The MMD 835-1-S dynamic cardioid capsule is tuned for vocal clarity and high speech intelligibility, offering excellent off-axis rejection that minimises feedback and spill on noisy stages.

Intelligent Switching Diversity in the EW-D EM receiver continuously monitors both antenna paths and selects the stronger signal, providing consistent dropout-free reception up to 328 ft (100 m) line of sight. The ultra-low 1.9 ms system latency ensures the handheld stays perfectly in sync with any in-ear monitor or PA system. Bluetooth 5.1 LE connectivity links the system to the Sennheiser Smart Assist app (iOS and Android), enabling wireless frequency setup, remote level control, and real-time battery and RF monitoring from anywhere in the venue.

Key Features

• MMD 835-1-S Dynamic Cardioid Capsule — Optimised for vocals and speech; excellent feedback rejection and high SPL handling.
• EW-D SKM-S Handheld Transmitter — All-metal housing with mute switch; interchangeable capsule system for versatile mic changes.
• EW-D EM Rackmount Receiver — Half-rack 1U single-channel receiver; installs cleanly in any standard equipment rack.
• 24-Bit Digital Audio — True digital transmission with no analogue companding; broadcast-grade fidelity throughout the signal chain.
• 134 dB Dynamic Range — No input sensitivity adjustments required; handles soft speech to peak vocal performance without clipping.
• Equidistant Tuning Grid — Technology derived from Digital 6000/9000 series; eliminates intermodulation and simplifies multi-channel deployment.
• Up to 90 Simultaneous Channels — Industry-leading channel density for large-scale worship, conference, and live-event applications.
• 2,240 Selectable Frequencies / Auto-Scan — 56 MHz operating bandwidth with automatic channel selection for effortless setup.
• 1.9 ms System Latency — Transparent, IEM-compatible latency with no perceptible delay for performers.
• Intelligent Switching Diversity — Dual-antenna reception for reliable, dropout-free wireless coverage up to 328 ft.
• Bluetooth Smart Assist App — iOS and Android remote control for frequency setup, level monitoring, and battery status.
• Up to 12-Hour Battery Life — Sennheiser rechargeable pack (included) supports full day events; AA alkaline option for backup.

Typical Applications

• Live vocal performance on theatre and concert stages
• Corporate keynote presentations and town halls
• Houses of worship sermons and worship leading
• University lecture halls and classroom instruction
• Conference panels, podium speeches, and award ceremonies
• Broadcast studio interviews and talk-show productions
• Multi-channel live event and festival sound reinforcement

Technical Specifications

Frequently Asked Questions

Q: What makes the EW-D different from the EW-G4 series?

The EW-D is a true 24-bit digital system with no analogue companding, an equidistant tuning grid, and Bluetooth app control — all features derived from Sennheiser's professional Digital 6000/9000 range. The EW-G4 uses analogue RF transmission with digital display. The EW-D offers significantly greater dynamic range (134 dB vs. ~110 dB), more simultaneous channels (up to 90 vs. 32), and lower latency.

Q: Can I swap the MMD 835-1-S capsule for a different capsule?

Yes. The EW-D SKM-S handheld uses Sennheiser's standard capsule-swap system, compatible with other MMD capsules designed for the EW-D/EW-G4 SKM platform, including condensers and other dynamics — check capsule compatibility before purchasing separately.

Q: Does the EW-D EM receiver need to be rack-mounted?

No. While the EW-D EM is a half-rack 1U unit ideal for rack installation (rack ears sold separately), it can also stand freely on a table or shelf. It powers via the included AC/DC adapter.

Q: How does the equidistant tuning grid benefit multi-channel setups?

Standard wireless systems require careful intermodulation calculations when running multiple channels. The EW-D's equidistant grid spaces all 2,240 frequencies evenly, eliminating intermodulation products and allowing auto-scan to coordinate up to 90 simultaneous channels without manual frequency planning.

Q: Is the 1.9 ms latency low enough for in-ear monitor use?

Yes. At 1.9 ms, the EW-D system latency is below the threshold of audible delay for IEM applications. Combined with a wireless IEM system, total perceived latency remains transparent to performers.

Q: What frequency bands are available for this system?

The EW-D 835-S SET is available in three band options: Q1-6 (470–526 MHz), R1-6 (520–576 MHz), and R4-9 (552–608 MHz). This listing offers Q1-6 and additional variants — select the band appropriate for your country's spectrum regulations.

Q: Does the system work with the Sennheiser Smart Assist app?

Yes. Both the EW-D EM receiver and the SKM-S handheld connect to the Smart Assist app over Bluetooth, enabling remote frequency setup, RF and battery monitoring, and level adjustments from an iOS or Android device anywhere in the venue.

Q: Can the MMD 835-1-S capsule handle high-SPL vocal environments?

The MMD 835-1-S is a dynamic cardioid capsule built for robust stage use. Its dynamic transducer design handles high SPL sources well, and its cardioid polar pattern provides natural feedback rejection — making it well-suited for loud stage environments and close-miked vocal work.
