Sennheiser EM-XSW 2-A True diversity receiver with external antennas. 8 banks of 12 coordinated frequency presets, and manual tuning of 960 frequencies. Rackmount not included, frequency range: A (548-572 MHz) - 507315

Product Overview

The Sennheiser EM-XSW 2-A is the standalone true diversity receiver for the XSW 2 wireless platform, sold individually for system expansion, replacement, or custom builds where transmitters are sourced separately. Operating in the A frequency range (548–572 MHz) with true diversity reception, external antennas, and 960 selectable frequencies, it provides professional-grade RF performance for medium to large venue installations and multi-system wireless deployments.

Product Description

The EM-XSW 2-A is the receiver at the core of the XSW 2 wireless platform and is available as a standalone unit for AV integrators who need to add channels to an existing XSW 2 installation or build custom transmitter-microphone configurations using separately sourced SK XSW-A bodypacks or SKM handheld transmitters. True diversity reception uses two independent RF circuits and external antennas operating simultaneously, with the system selecting the stronger signal path at all times to eliminate multipath dropouts — a key advantage over antenna-switching systems in larger venues, multi-room installations, and environments with RF interference. The EM-XSW 2-A's 960 selectable frequencies across the A band allow precise frequency coordination in dense multi-channel deployments and provide the flexibility to avoid local RF interference. External antennas on the receiver can be repositioned for optimal RF coverage or extended with optional antenna cables for rack-mounted installations where line-of-sight to the transmitter is limited. Infrared sync enables rapid one-press frequency pairing with any XSW 2-compatible transmitter. The front-panel display shows RF level, AF level, and transmitter battery status. The NT 12-5 CW power supply is included. This receiver is the correct choice for professional installation work where the XSW 2's true diversity RF performance is required and the transmitter component is already available or being sourced separately.

Key Features

• True Diversity Reception — Two independent RF paths with external antennas; eliminates multipath dropouts in demanding environments.
• 960 Selectable Frequencies — Professional frequency agility for dense multi-system coordination and RF interference avoidance.

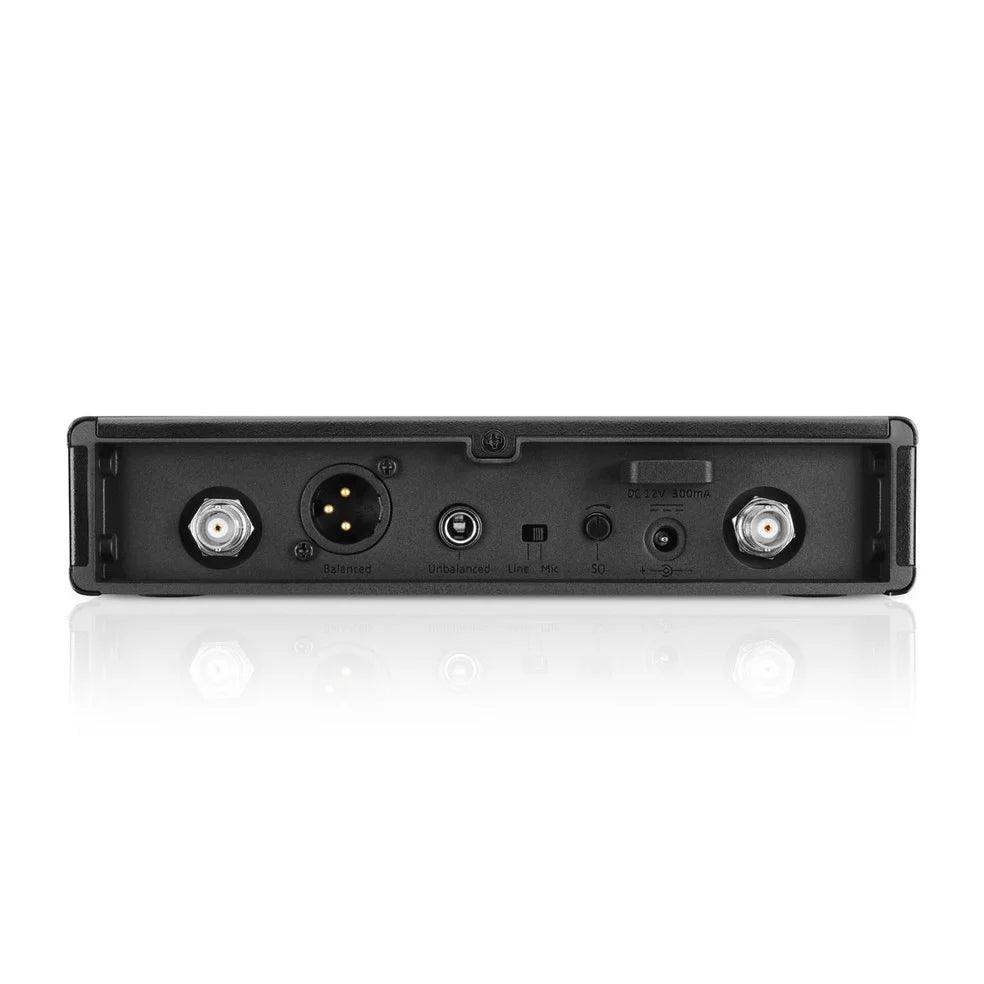

• External Antennas — Repositionable; compatible with optional remote antenna mounting and active antenna distribution.
• Infrared Sync — One-press frequency pairing with any XSW 2-compatible transmitter.

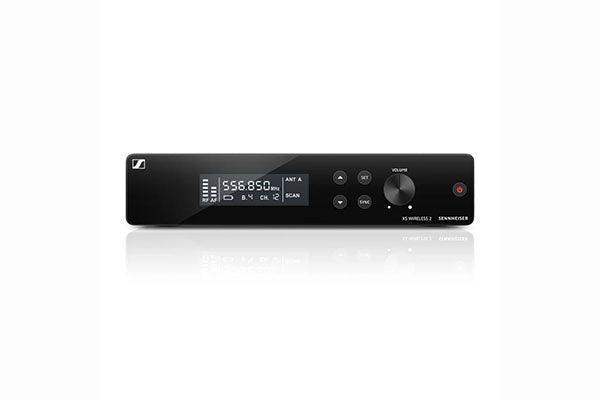

• Front-Panel Display — RF level, AF level, and transmitter battery status at a glance.
• Standalone Receiver — Component purchase for system expansion or custom XSW 2 configurations.
• UHF A Band (548–572 MHz) — Stable professional UHF spectrum allocation.

Technical Specifications
