Sennheiser EM-XSW 1 DUAL-A Wireless receiver set. Includes (1) EM-XSW 1 DUAL stationary receiver with internal antennas and (1) NT 12-5 CW power supply, frequency range: A (548-572 MHz) - 508277
Sennheiser EM-XSW 1 DUAL-A Wireless receiver set. Includes (1) EM-XSW 1 DUAL stationary receiver with internal antennas and (1) NT 12-5 CW power supply, frequency range: A (548-572 MHz) - 508277 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Product Overview
The Sennheiser EM-XSW 1 DUAL-A is a dual-channel antenna-switching diversity receiver set for the XSW 1 platform, designed for installations and venues that need to receive two simultaneous XSW 1 wireless channels from a single rack or tabletop unit. The set operates in the A frequency range (548–572 MHz) and supports up to 10 channels per receiver within the available bandwidth. It is sold as a dual receiver set — two EM-XSW 1 receivers — allowing integration with any XSW 1-compatible handheld or bodypack transmitters.
Product Description
The EM-XSW 1 DUAL-A provides an economical path to dual-channel wireless reception on the XSW 1 platform without purchasing two separate receiver sets. Each EM-XSW 1 receiver in the set uses antenna-switching diversity with integrated antennas to reduce RF dropouts in standard single-room environments. Both receivers operate independently, allowing frequency coordination across up to 10 available channels per receiver in the A band. The dual configuration is well-suited for two-microphone setups such as a presenter lavalier paired with a backup vocal handheld, or two independent vocal channels at a podium or altar. Infrared sync on each receiver allows rapid channel pairing with any SK XSW-A bodypack or SKM 825/835/865-XSW handheld transmitter. Front-panel displays on both units show RF level, AF level, and battery status. The NT 12-5 CW power supplies are included. The EM-XSW 1 DUAL-A is the correct choice when two XSW 1 channels are needed and a complete second set with transmitters is not required — for example, when transmitters are purchased separately or when upgrading receivers in an existing XSW 1 installation.
Key Features
- Dual Receiver Set — Two independent EM-XSW 1 receivers for simultaneous two-channel wireless reception.
- Antenna-Switching Diversity — Integrated antennas on each receiver for reliable reception in standard venue environments.
- Up to 10 Channels Per Receiver — Independent channel coordination for each receiver unit.
- Infrared Sync — Compatible with any XSW 1 handheld or bodypack transmitter via one-press IR pairing.

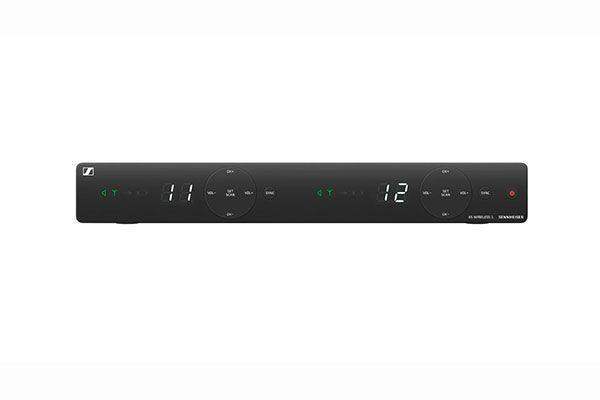

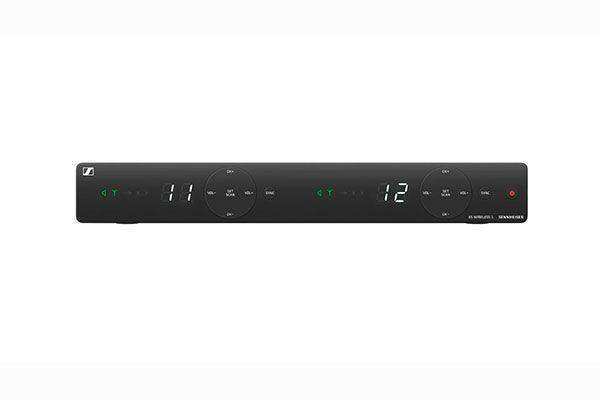

- Front-Panel Display — RF level, AF level, and battery status displayed on each receiver.
- UHF A Band (548–572 MHz) — Stable professional UHF spectrum allocation.
- Transmitter-Free Bundle — Receiver-only set for pairing with existing or separately purchased XSW 1 transmitters.
Technical Specifications
| Frequency Range | A: 548–572 MHz |
| System Type | Analog UHF |
| Diversity Type | Antenna-switching diversity (per receiver) |
| Channels Per Receiver | Up to 10 |
| Receivers Included | 2x EM-XSW 1 |
| Transmitters Included | None (sold separately) |
