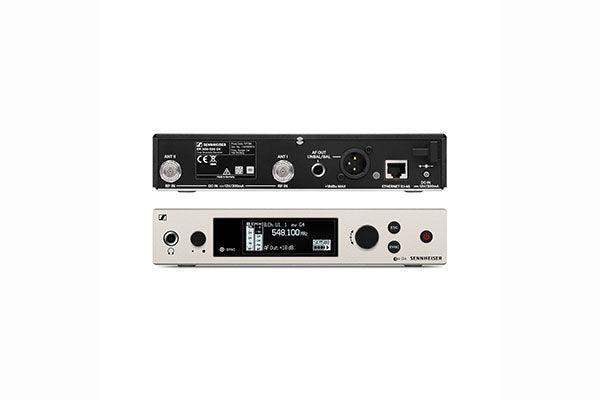

Sennheiser EM 300-500 G4-GW1 Rackmount true diversity receiver. GA3 rackmount included, frequency range: GW1 (558 - 608 MHz) - 509676

Product Overview

The Sennheiser EM 300-500 G4-GW1 is a professional rackmount true diversity receiver operating in the GW1 band (558–608 MHz), compatible with both the 300 and 500 Series G4 transmitters. It offers a 50 MHz tuning bandwidth with up to 32 simultaneous compatible channels, making it a strong choice for larger productions requiring channel density. Available at Creation Networks for touring engineers, broadcast facilities, and permanent AV installations.

Product Description

The EM 300-500 G4-GW1 provides professional true diversity wireless reception in the 558–608 MHz GW1 band, with a generous 50 MHz tuning range that supports up to 32 compatible simultaneous channels. Designed for use with both the G4 300 and 500 Series transmitters, it is one of the most versatile receivers in the Evolution Wireless G4 lineup. True diversity reception uses dual antennas and tuners to virtually eliminate dropouts, while the automatic frequency scan function quickly locates interference-free channels in RF-dense environments. The clear front panel display provides real-time readouts of RF signal level, audio output level, transmitter battery status, and active frequency. Balanced XLR and unbalanced 6.3mm outputs offer broad compatibility with professional mixing desks, interfaces, and recorders. HD Clear Audio mode extends dynamic range for superior audio quality. The half-rack unit pairs with the GA 3 adapter for efficient dual-unit 1U racking, and Sennheiser WSM software enables networked frequency management across multiple units.

Key Features

• GW1 Band (558–608 MHz) — 50 MHz bandwidth with up to 32 compatible simultaneous channels.
• 300 and 500 Series Compatibility — Works with SKM 300 G4, SK 300 G4, SKM 500 G4, SK 500 G4 transmitters in GW1 band.
• True Diversity Reception — Dual tuner/antenna system for dropout-resistant performance.
• HD Clear Audio Mode — Higher dynamic range audio transmission with reduced compression.
• Automatic Frequency Scan — Fast channel selection in crowded RF environments.
• Wireless Systems Manager Compatible — Centralized multi-unit management over a network.
• Balanced XLR and Unbalanced Jack Outputs — Flexible audio output options for professional systems.
• Half-Rack Design — Dual-unit 1U racking with optional GA 3 adapter.

Typical Applications

• Large live productions requiring high wireless channel counts
• Houses of worship with extensive wireless microphone systems
• Broadcast production facilities needing reliable wireless performance
• Corporate conference and event AV systems
• Theatre productions using 300 or 500 Series components

Technical Specifications

Frequently Asked Questions

What transmitters pair with the EM 300-500 G4-GW1?

Compatible G4 transmitters in GW1 band include SKM 300 G4, SK 300 G4, SKM 500 G4, SK 500 G4, and SKP 500 G4.

How many channels can operate simultaneously?

Up to 32 channels can be operated simultaneously in the GW1 band without intermodulation interference.

Can I use this with older G3 transmitters?

Yes, G4 receivers are backwards compatible with G3 transmitters in the same frequency band.

What is included with the receiver?

The EM 300-500 G4-GW1 includes a GA 3 rack mounting kit.

Can I manage multiple receivers over a network?

Yes. With Sennheiser Wireless Systems Manager software, you can coordinate frequencies and monitor multiple G4 receivers across a network.
