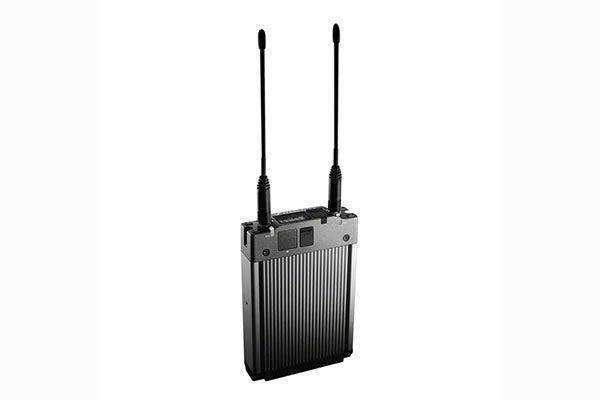

Sennheiser EK 6042 2-channel true diversity receiver camera, 470-654 MHz, digital and analog, HDX, HiDyn+ and LR mode - 506210

Product Overview

The Sennheiser EK 6042 is a two-channel true diversity camera receiver designed for broadcast ENG, film production, and location sound applications where a full rack-mount receiver is not practical. It accepts both analog and digital Sennheiser wireless transmitters simultaneously, covering the G3, 2000, 3000/5000, and Digital 9000 series, making it the most broadly compatible 2-channel true diversity camera receiver in Sennheiser's professional lineup. The 470–654 MHz tuning range and SuperSlot compatibility position it for use on broadcast cameras including Sony, Panasonic, and ARRI platforms.

Product Description

The EK 6042 occupies a standard camera receiver slot and supports the SuperSlot interface, making it natively compatible with Sony, Panasonic (Unislot), and ARRI camera platforms without adapters. Optional backpanel adapters and a hot-swappable battery pack extend operation to standalone use, giving the unit flexibility beyond camera-mounted scenarios — useful for bag-based ENG, interview setups, or temporary fixed positions in the field.

Both channels are independently true diversity, each operating two antenna paths to maximize signal consistency in dynamic shooting environments. The receiver handles HDX compander processing, HiDyn+ noise reduction, and Long Range (LR) digital mode within the same unit, allowing it to interface with the full range of Sennheiser professional wireless transmitters regardless of whether they use analog or digital transmission. This mixed-mode compatibility is a practical advantage on productions that carry both legacy analog Sennheiser gear and newer digital transmitters.

The 184 MHz switching bandwidth covers 470–654 MHz, providing adequate range for frequency coordination in most broadcast and ENG operating environments. Auto-configuration and scene setup allow any microphone to be recognized and configured in under five seconds, reducing setup time on location. A built-in web server allows browser-based configuration from any device on the same network, including import and export of complete configuration files — useful for multi-unit setups or handoffs between operators.

Digital and analog outputs are both available, with output selection dependent on the connected transmitter type. The optional GA 6042 mounting accessories provide secure attachment to a variety of camera rigs. All configuration, scene management, and firmware updates can be handled through the integrated web server interface without requiring dedicated software installation.

Key Features

• 2-Channel True Diversity Reception — Both channels operate independent dual-antenna diversity, maintaining signal integrity in moving, hand-held, and multi-reflective broadcast environments.
• SuperSlot Compatible — Natively fits Sony and Panasonic (Unislot) camera slots; compatible with ARRI platforms, reducing the need for external mounting hardware.
• Broad Transmitter Compatibility — Accepts Sennheiser G3, 2000 series, 3000/5000 series, and Digital 9000 transmitters — analog and digital — on both channels simultaneously.
• HDX and HiDyn+ Processing — Supports Sennheiser's HDX compander for analog systems and HiDyn+ noise reduction, maintaining audio quality across different transmitter generations.
• Long Range (LR) Mode — Digital 9000-compatible LR mode extends usable reception range for critical broadcast and documentary applications.
• Digital and Analog Outputs — Provides both output types to interface with a wide range of camera and mixer inputs in the field.
• Built-in Web Server — Browser-based configuration from any device; supports import/export of complete configuration profiles for fast multi-unit management.
• Auto-Configuration and Scene Setup — Identifies and configures connected transmitters in under five seconds, minimizing setup time on location.
• Optional Standalone Operation — Backpanel adapter and hot-swappable battery pack (available separately) enable use outside a camera slot in bag or stand-mounted configurations.
• 184 MHz Switching Bandwidth — Covers 470–654 MHz, providing adequate coordination range for broadcast and ENG field operations.

Typical Applications

• Broadcast ENG and field production
• Documentary and location film production
• Live broadcast and sports coverage
• Studio camera wireless audio
• Corporate video and event production requiring camera-mounted wireless

Technical Specifications

Frequently Asked Questions

Q: Which camera platforms is the EK 6042 compatible with?

The EK 6042 is SuperSlot-compatible and works with Sony, Panasonic (Unislot), and ARRI cameras. It fits standard camera receiver slots on these platforms without additional adapters in most configurations. Camera-specific compatibility should be confirmed against the camera model's receiver slot specification.

Q: Which Sennheiser transmitters does the EK 6042 support?

The EK 6042 accepts the full range of Sennheiser professional wireless transmitters including the G3 (analog), 2000 series (analog), 3000/5000 series (analog), and Digital 9000 (digital). Both channels can handle digital and analog transmitters simultaneously, making it backward-compatible with mixed transmitter inventories.

Q: Can the EK 6042 be used outside a camera slot?

Yes. With the optional backpanel adapter and hot-swappable battery pack (sold separately), the EK 6042 can operate as a standalone two-channel field receiver for bag-based ENG, interview rigs, or temporary fixed positions.

Q: How is the EK 6042 configured?

Configuration is browser-based through the unit's integrated web server — no dedicated software installation required. Auto-configuration identifies and sets up a connected transmitter in under five seconds. Full configuration profiles can be imported and exported, making it straightforward to duplicate setups across multiple units.

Q: What audio processing modes does the EK 6042 support?

The EK 6042 supports HDX compander processing for analog Sennheiser transmitters, HiDyn+ noise reduction for older analog systems, and Long Range (LR) digital mode for Digital 9000 transmitters. The receiver automatically selects the appropriate processing based on the detected transmitter type.

Q: Does the EK 6042 have both digital and analog audio outputs?

Yes. The EK 6042 provides both digital and analog outputs, with the active output type determined by the connected transmitter and the selected operating mode. This gives flexibility when interfacing with different camera or mixer input configurations in the field.

Q: What accessories are available for the EK 6042?

Key accessories include the GA 6042 mounting hardware for camera attachment, an optional backpanel adapter for standalone operation, and a hot-swappable battery pack. These are available separately through Creation Networks at creationnetworks.net.

Q: What warranty does the EK 6042 carry?

The EK 6042 carries a standard 2-year Sennheiser limited warranty against manufacturing defects. Contact Creation Networks at creationnetworks.net for warranty service or support inquiries.
