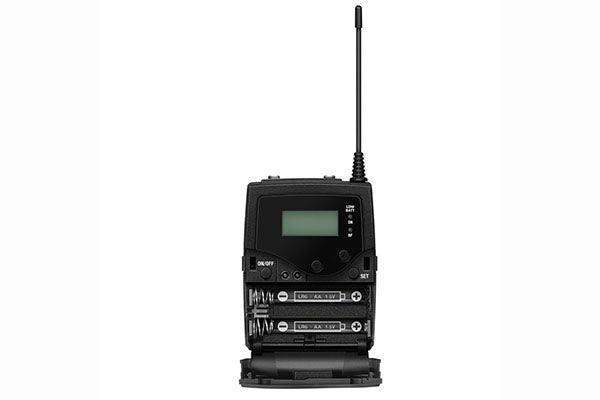

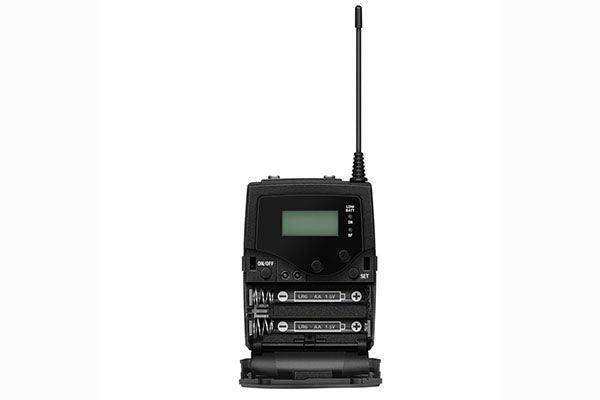

Sennheiser EK 500 G4-AW+ Portable camera receiver. Includes (1) 1/8" output cable, (1) XLR balanced output cable and (1) camera mount, frequency range:AW+ (470 - 558 MHz) - 509546

Product Overview

The Sennheiser EK 500 G4-AW+ is a professional portable camera-mount wireless receiver operating in the AW+ band (470–558 MHz), part of the Evolution Wireless G4 500 Series. Designed for ENG, broadcast, and documentary production, it mounts directly to a camera via a standard shoe or NATO rail and delivers clean, reliable wireless audio directly to the camera's audio input. Available at Creation Networks for broadcast professionals and videographers.

Product Description

The EK 500 G4-AW+ is Sennheiser's premium portable camera receiver, bringing professional 500 Series wireless performance to on-camera audio capture. Operating across the wide AW+ band (470–558 MHz) with 88 MHz tuning range and up to 32 compatible channels, it provides maximum channel flexibility for multi-camera productions. The receiver outputs audio via a locking 3.5mm mini-jack or standard 3.5mm connector to the camera's audio input. True diversity reception combines two tuners to deliver dropout-resistant performance in challenging RF environments. The clear backlit display shows frequency, RF level, audio level, and transmitter battery status at a glance. Audio sensitivity is adjustable, and the receiver powers via the included battery or an optional DC power supply. Squelch adjustment optimizes sensitivity for various environments. With the EK 500 G4, you gain the full capability of Sennheiser's 500 Series ecosystem, including compatibility with SK 500 G4 bodypacks, SKM 500 G4 handhelds, and SKP 500 G4 plug-on transmitters in the AW+ band.

Key Features

• AW+ Band (470–558 MHz) — 88 MHz bandwidth with up to 32 compatible channels for multi-camera productions.
• Camera-Mount Design — Attaches directly to camera via shoe mount or NATO rail adapter.
• True Diversity Reception — Dual tuner/antenna system for reliable signal in complex RF environments.
• 3.5mm Locking Output — Secure audio connection to camera, mixer, or recorder.
• HD Clear Audio Mode — Extended dynamic range for broadcast-quality audio capture.
• Adjustable Squelch and Sensitivity — Optimize receiver performance for different RF environments.
• Backlit Display — Easy-to-read status including RF level, audio level, and battery status.
• 500 Series Ecosystem — Pairs with SK 500 G4, SKM 500 G4, and SKP 500 G4 transmitters.

Typical Applications

• ENG and broadcast news gathering with camera-mounted wireless audio
• Documentary filmmaking requiring clean wireless audio to camera
• Live event video production with multiple wireless mic channels
• Corporate video production with presenter wireless microphone systems
• Wedding and event videography requiring discreet audio capture

Technical Specifications

Frequently Asked Questions

What transmitters are compatible with the EK 500 G4-AW+?

Compatible transmitters include SK 500 G4 bodypack, SKM 500 G4 handheld, and SKP 500 G4 plug-on transmitter in the AW+ band.

How does the receiver attach to a camera?

The EK 500 G4 includes a camera mounting adapter. It can be attached via a standard hot shoe or with a NATO rail adapter (sold separately).

What is the audio output connector?

A 3.5mm locking mini-jack provides secure audio output to the camera's audio input.

Can I use older G3 transmitters with the EK 500 G4?

Yes, the EK 500 G4 is backwards compatible with G3 500 Series transmitters in the same frequency band.

Is there a GW1 band version?

Yes, the EK 500 G4-GW1 is also available at Creation Networks for users needing the 558–608 MHz frequency range.
