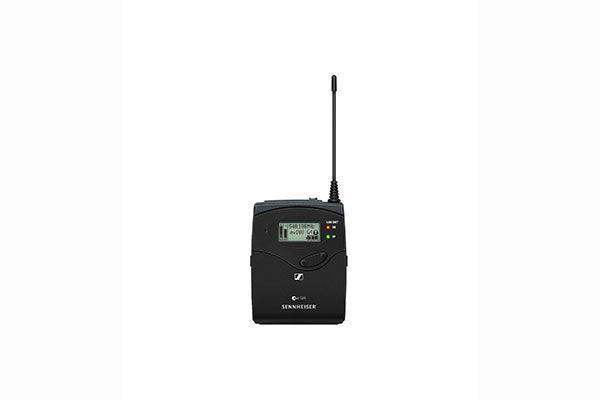

Sennheiser EK 100 G4-G Portable camera receiver. Includes (1) 1/8" output cable, (1) XLR unbalanced output cable and (1) camera mount, frequency range: G (566 - 608 MHz) - 509520

Product Overview

The Sennheiser EK 100 G4-G is the standalone portable camera receiver for the EW 100 G4 wireless system, operating in the G band (566–608 MHz). Identical in design and features to the EK 100 G4-A and -A1, it provides true diversity reception with 1680 selectable frequencies in the G frequency band for ENG, broadcast, documentary, and corporate video production workflows. At $349.95, it is the G-band camera-side component for professional wireless audio in field and studio production environments.

Product Description

The EK 100 G4-G is functionally identical to the EK 100 G4-A with the sole distinction of operating in the G frequency band (566–608 MHz). Select this variant when your EW 100 G4 transmitters operate in the G band, or when local frequency regulations, spectrum availability, or RF conditions make the G band the preferred choice for your region. The true diversity receiver uses two independent RF paths for reliable signal on moving cameras in field production environments. The 1680 selectable frequencies across the G band provide professional frequency coordination capability for multi-system broadcast deployments. The compact camera-mount form factor connects to standard camera hot shoes, cold shoes, and cage mounting systems. Output is via 3.5 mm TRS with adjustable level for compatibility with different camera audio input sensitivities. The graphical display shows RF level, AF level, and transmitter battery status. Infrared sync enables fast transmitter/receiver channel pairing in the field. The EK 100 G4-G is compatible with all EW 100 G4-series transmitters operating in the G band, making it the portable receiver choice for G-band EW 100 G4 wireless microphone systems in broadcast and video production.

Key Features

• G Band Operation (566–608 MHz) — Select for G-band transmitter systems or where G band is preferred in your region.
• True Diversity Reception — Two independent RF paths for dropout-free reception on moving cameras.
• 1680 Selectable Frequencies — Comprehensive frequency coordination for broadcast and multi-system deployments.
• Camera-Mount Form Factor — Compatible with hot shoe, cold shoe, and camera cage mounting systems.
• 3.5 mm TRS Output — Adjustable output level for camera audio input compatibility.
• Graphical Display — RF level, AF level, and transmitter battery status.
• Infrared Sync — Fast transmitter/receiver frequency pairing in the field.

Typical Applications

• ENG and broadcast field production camera wireless (G band)
• Documentary and corporate video wireless microphone
• Interview and event videography wireless
• Studio production camera wireless audio
• Professional content creation and streaming production

Technical Specifications

Frequently Asked Questions

How do I choose between the EK 100 G4-A, -A1, and -G?

Select the band that matches your EW 100 G4 transmitters. A (516–558 MHz), A1 (470–516 MHz), and G (566–608 MHz) are not cross-compatible — transmitters and receivers must operate in the same frequency band. Select based on which band is license-compliant and available in your region, and which band your existing transmitters use.

What transmitters are compatible with the EK 100 G4-G?

The EK 100 G4-G receives from all EW 100 G4-series SK 100 G4 bodypack transmitters and SKM 100 G4 handheld transmitters operating in the G band (566–608 MHz). Transmitters in other bands (A, A1) are not compatible.

Is phantom power available from this receiver?

No. The EK 100 G4-G is a wireless receiver and does not provide phantom power. Microphones connect to the SK 100 G4 bodypack transmitter, which similarly does not provide phantom power for condenser microphones.

What cables and accessories are included?

The EK 100 G4-G includes a 3.5 mm output cable, an XLR unbalanced output cable, and a camera mount.
