Sennheiser e 604 Microphone Dynamic Instrument Microphone (3-Pack) - 506667

Product Overview

The Sennheiser e 604 Dynamic Instrument Microphone 3-Pack provides three matched cardioid dynamic instrument microphones for drum kit miking, horn sections, and high-SPL close-mic applications. Each e 604 handles sound pressure levels above 160 dB without distortion, using an integral stand mount and included rim clip for direct attachment to drum rims or instrument bells. Buying three units as a matched set ensures consistent gain structure, tonal response, and placement geometry across the entire kit or section.

Product Description

Each e 604 in this bundle is a compact cardioid dynamic microphone purpose-built for high-SPL instrument sources—snare drums, toms, floor toms, and brass or woodwind instrument bells. The dynamic transducer requires no phantom power, simplifying cabling on dense stage setups with multiple sources. The cardioid polar pattern's controlled off-axis rejection is critical for isolation on a tightly-miked drum kit, where adjacent sources are within inches of each microphone position. A presence lift centered in the 4–5 kHz range helps percussion and brass project through dense mixes without requiring additional console EQ. The integral stand mount threads directly onto standard mic stands; the included clip mounts the microphone to drum rims or instrument bells for the most compact, cable-efficient setup. The fiberglass-reinforced housing tolerates the repeated physical contact common in drum kit applications and resists cracking from rim strikes and rough stage handling. The humbucking coil rejects electromagnetic interference from stage lighting dimmers and nearby transformers. In a three-pack configuration, all three microphones are from the same production batch, ensuring matched sensitivity and tonal characteristics critical for consistent mix levels across all channels.

Key Features

• Dynamic Cardioid Transducer — No phantom power required; handles SPL above 160 dB without distortion.

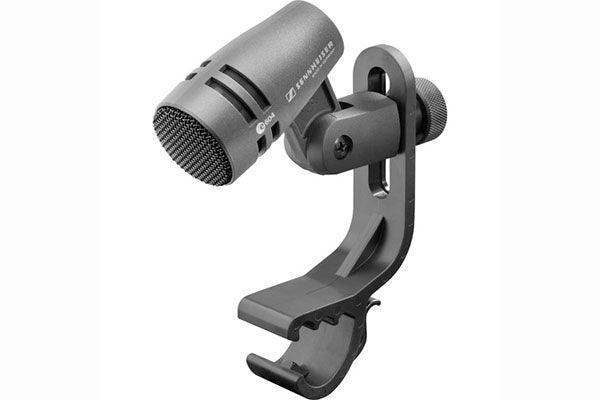

• Integral Rim/Stand Mount — Direct attachment to drum rims or standard mic stands without additional hardware.
• Presence Lift at 4–5 kHz — Instruments project through dense mixes without additional console EQ.
• Humbucking Coil — Rejects electromagnetic interference from stage lighting and nearby equipment.
• Fiberglass-Reinforced Housing — Impact-resistant construction for the physical demands of drum kit deployment.
• Three-Pack Bundle — Matched set for consistent sensitivity and tonal response across all three channels.
• XLR-3M Connector — Standard balanced output; compatible with all mixing consoles and stage boxes.

Typical Applications

• Recording studio
• Broadcast studio
• Auditorium

Technical Specifications

Frequently Asked Questions

Q: What mounting hardware is included with each e 604?

Each e 604 includes a rim clip that attaches directly to drum hoops. The integral body thread also accommodates standard microphone stand adapters if stand mounting is preferred over rim mounting.

Q: Does the e 604 require phantom power?

No. The e 604 is a passive dynamic microphone. It does not require phantom power and will not be harmed if phantom power is accidentally applied, as is common with dynamic mics on consoles running phantom across all channels.

Q: Is the e 604 suitable for live drum kit use?

Yes—it was designed specifically for this application. The impact-resistant housing, humbucking coil, and SPL handling above 160 dB support nightly live deployment on snare, toms, and floor tom. The rim clip makes it fast to set up and remove without disturbing drum hardware.

Q: Can the e 604 be used on brass instruments?

Yes. The compact form factor, high SPL handling, and cardioid pattern make it practical for close-miking trumpet, trombone, and similar brass instruments at the bell. The included rim clip can attach to bell rims on some horn stands, though engineering-grade mounting solutions may be needed for touring setups.
