Product Overview

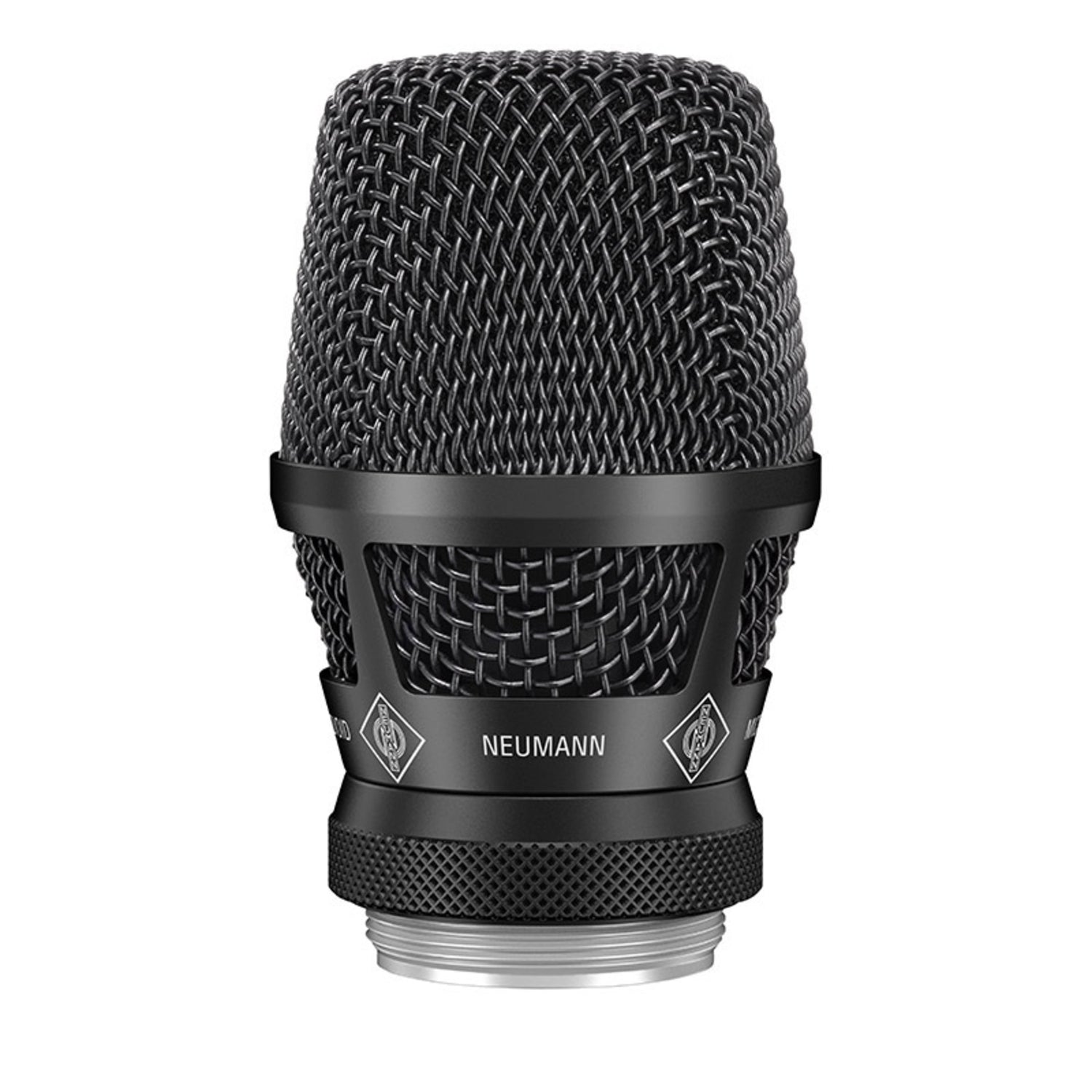

The Neumann KK 104 U Cardioid Condenser Capsule (Black) — SKU 008721 — is a premium wireless capsule head for third-party handheld transmitters with a Shure-compatible interface. Sharing the same KMS 104-derived condenser element and cardioid polar pattern as the 5000 Series KK 104 S, it delivers true Neumann studio sound to Shure wireless platform deployments across broadcast, live production, house of worship, and corporate event applications. Rated at 148–150 dB max SPL with integrated foam pop protection, it is built for demanding professional stage environments.
Product Description
The KK 104 U (black) extends Neumann’s wireless condenser capsule program to Shure-compatible transmitter bodies. The precision condenser cardioid element offers uniform polar response from 80 Hz to 20 kHz, providing consistent off-axis rejection across the full bandwidth — a critical factor for gain before feedback in multi-channel live and broadcast wireless systems. Enormous SPL handling of 148–150 dB (THD 0.5%) covers the highest-energy vocal and presentation environments. Integrated expanded-pore foam pop protection shields the capsule from moisture and plosive energy, and internal damping suppresses handling noise transmission. The black finish suits black-body Shure transmitters. Includes a large nylon carry bag for transport. This is a special-order item.
Key Features
- Neumann KMS 104 Cardioid Condenser Element — Precision condenser capsule derived from the award-winning KMS 104 wired stage microphone.
- Shure-Compatible Interface — Designed for third-party Shure-interface handheld wireless transmitters.
- Cardioid Polar Pattern — Uniform response from 80 Hz–20 kHz for consistent off-axis rejection and high gain before feedback.
- 148–150 dB Max SPL (THD 0.5%) — Handles high-SPL sources without distortion.
- Integrated Foam Pop Protection — Expanded-pore foam resists moisture and plosive energy.
- Low Handling Noise — Internal damping reduces structure-borne noise during handheld use.
- Black Finish — Matches black-body third-party transmitters.

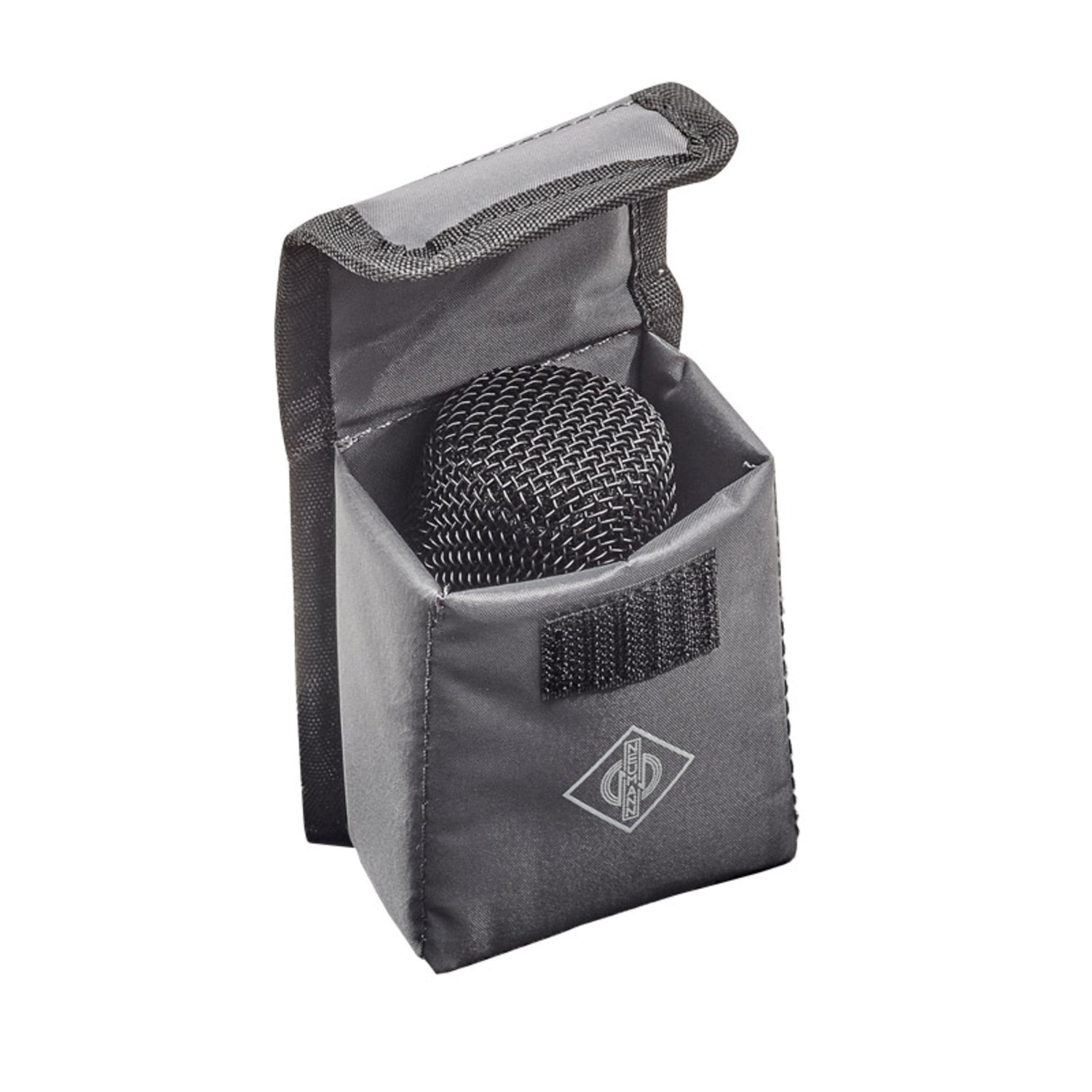

- Includes Nylon Carry Bag — Large bag for capsule and accessories transport.
Typical Applications
- House of worship lead vocal wireless on Shure platforms
- Broadcast studio handheld wireless vocal microphone
- Live theatre and performing arts wireless vocal
- Auditorium and touring production wireless
- Corporate event presenter wireless microphone
Technical Specifications
| Parameter | Value |
|---|---|
| SKU | 008721 |
| Color | Black |
| Interface | Shure-compatible (third-party) |
| Polar Pattern | Cardioid |
| Transducer Type | Permanently polarized condenser (Neumann) |
| Frequency Range | 80 Hz – 20 kHz |
| Max SPL (THD 0.5%) | 148 / 150 dB |
| Compatible With | Third-party transmitters with Shure interface |
| Includes | KK 104 U capsule (black), large nylon carry bag |
Frequently Asked Questions
- Will this capsule fit Sennheiser transmitters?
- No. The KK 104 U is for third-party Shure-interface transmitters. For Sennheiser SKM 5000/5200, use KK 104 S (008534). For Sennheiser 2000/6000/9000 Series, use KK 204 (008651).
- What is the difference between KK 104 U (cardioid) and KK 105 U (supercardioid)?
- The KK 104 U cardioid suits wider-range vocal pickup. The KK 105 U supercardioid provides tighter directionality and higher feedback rejection for louder or denser multi-channel environments.
- What is the lead time?
- Special order. Contact Creation Networks at creationnetworks.net for availability.
- What warranty applies?
- Standard 2-year Neumann / Sennheiser warranty.
