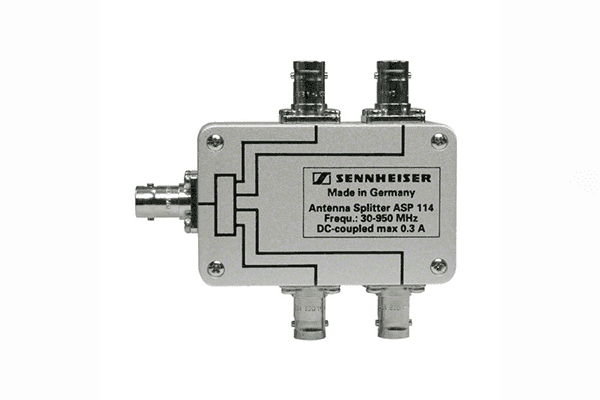

Sennheiser ASP 114 Single four-way antenna splitter, passive - 003423
Product Overview
The Sennheiser ASP 114 is a single 4-way passive antenna splitter for distributing one antenna signal to up to four UHF wireless receivers. It simplifies multi-channel wireless antenna infrastructure by allowing multiple receivers to share a single antenna installation. Available at Creation Networks for professional AV system integrators.
Product Description
The ASP 114 passive antenna splitter distributes a single antenna signal to up to four Sennheiser UHF wireless receivers, reducing the number of antennas needed in a multi-channel system and simplifying cable routing. As a passive device with no external power requirement, it is reliable and easy to install. The resistive splitter design introduces some signal loss across all four outputs, which may need to be offset by antenna boosters for longer cable runs or in larger installations. BNC connectors on all ports ensure compatibility with standard RF infrastructure and Sennheiser G3, G4, 2000, and 3000 Series receivers. The ASP 114 is an excellent solution for four-channel wireless systems where a single antenna position can serve all receivers, such as a ceiling-mounted omni antenna in a conference room or a stage-mounted directional antenna for a live performance setup.
Key Features
- 1-to-4 Signal Distribution — One antenna feeds up to four UHF receivers.
- Passive Design — No external power needed; simple and reliable installation.
- BNC Connectors — Standard BNC in/out for easy integration.
- Compact Housing — Suited for rack or surface mounting in AV installations.
- Broad Compatibility — Works with Sennheiser G3, G4, 2000, and 3000 Series UHF receivers.
Technical Specifications
| Type | Passive splitter |
|---|---|
| Split Ratio | 1 input to 4 outputs |
| Connectors | BNC |
| Power | Not required (passive) |
| Compatible Systems | Sennheiser G3, G4, 2000, 3000 Series UHF receivers |
