Sennheiser TCC M-S-W – TeamConnect Ceiling Medium Surface-Mount Kit, White - 700294
Sennheiser TCC M-S-W – TeamConnect Ceiling Medium Surface-Mount Kit, White - 700294 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sennheiser TCC M-S-W – TeamConnect Ceiling Medium Surface-Mount Kit...
Product Overview
The Sennheiser TCC M-S-W – TeamConnect Ceiling Medium Surface-Mount Kit, White is a complete surface-mount kit of the TeamConnect Ceiling Medium (TCC M) beamforming microphone array in white. This ceiling microphone kit provides Microsoft Teams and Zoom certified voice pickup for mid-sized conference rooms and boardrooms. It includes the white front plate and design housing, Chicago plenum cover plate, drilling templates, Phoenix connector, safety rope, and suspension kit.
Product Description
The TeamConnect Ceiling Medium is a beamforming ceiling microphone array that captures speech across a mid-sized room, keeping tables and sightlines free of microphones. This surface-mount configuration provides the hardware an AV integrator needs for a complete ceiling installation, including the mounting components, Chicago plenum connection box cover plate where applicable, drilling templates, Phoenix connector, safety rope, and suspension kit. The TCC M outputs networked Dante audio and is powered over PoE, allowing single-cable installation and integration into networked DSP and matrix systems. It is certified for Microsoft Teams and Zoom and covers rooms up to approximately 40 m². The white finish lets integrators match ceiling and interior design, and the suspension kit supports installation from higher ceilings. As a genuine Sennheiser kit, it maintains the fit, acoustic performance, and safety compliance of the TeamConnect Ceiling Medium platform.
Key Features
- Complete Installation Kit — Includes the TCC M array plus the surface-mount hardware, Phoenix connector, safety rope, and suspension kit.
- Beamforming Ceiling Array — Captures speech across the room for hands-free, wearable-free conferencing.
- Dante & PoE — Networked Dante audio over a single PoE cable simplifies installation and integration.
- Teams & Zoom Certified — Certified audio for standardized enterprise conferencing rooms.
- White Finish — Matches ceiling and interior design across a facility.
- Up to 40 m² Coverage — Beamforming pickup for mid-sized conference rooms and boardrooms.
Typical Applications
- Mid-Sized Conference Room — Primary use case, providing hands-free beamforming voice pickup across the table.
- Boardroom — Discreet ceiling placement keeps sightlines and the table clear of microphones.
- Meeting Space — Certified audio for standardized Microsoft Teams and Zoom room builds.
- Training Room — Full-room coverage captures presenters and participants without wearable mics.
- Multi-Purpose Room — Ceiling mounting adapts to flexible furniture layouts.
Technical Specifications
| Configuration | Surface-Mount kit for TeamConnect Ceiling Medium |
| Finish | White |
| Microphone Principle | MEMS beamforming ceiling array |
| Frequency Response | 100 Hz to 16,000 Hz |
| Coverage Area | Up to 40 m² (approx. 430 ft²) |
| Max SPL | 98 dB SPL |
| Dynamic Range | >83 dB(A) |
| Audio Output | 1 × 3-pin terminal (Phoenix); Dante networked audio |
| Power | PoE (IEEE 802.3at); approx. 8 W |
| Certifications | Microsoft Teams, Zoom certified |
| Dimensions (L x W x H) | 16.02 × 16.02 × 1.06 in |
| Weight | 10.79 lbs |
| Country of Origin | Germany |
| UPC | 615104387874 |

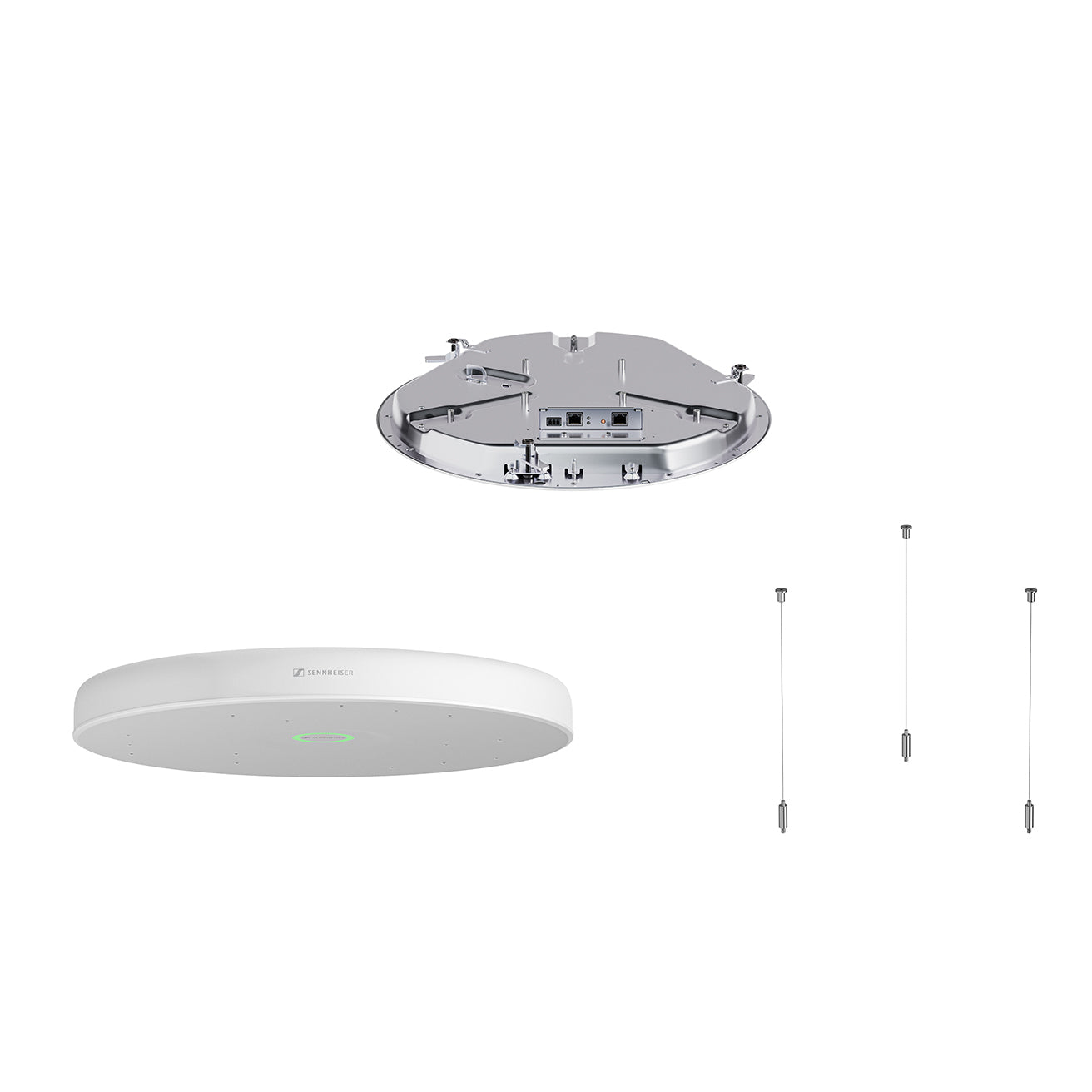

In the box: (1) TCC M Conferencing microphone, (1) Front plate white, (1) Design housing white, (1) Chicago plenum connection box cover plate, (1) Drilling templates, (1) Phoenix connector, (1) Safety rope, (1) Suspension kit.
Frequently Asked Questions
Is the TeamConnect Ceiling Medium Dante and PoE compatible?
Yes. The TCC M outputs networked Dante audio and is powered over PoE (IEEE 802.3at), simplifying single-cable installation.
Which conferencing platforms is it certified for?
The TeamConnect Ceiling Medium is certified for Microsoft Teams and Zoom, and integrates with third-party DSP and control systems.
How is this kit installed?
This is a surface-mount configuration. It includes the required plate, drilling templates, Phoenix connector, safety rope, and suspension kit for a code-compliant ceiling installation.
What room size does it cover?
The TCC M provides beamforming coverage for mid-sized rooms up to approximately 40 m² (about 430 ft²).
Does it require a separate DSP?
For most deployments the TCC M integrates with a networked DSP or matrix. Contact Creation Networks for a room-specific signal-chain recommendation.
What warranty and support are available?
Sennheiser provides a manufacturer's warranty on TeamConnect Ceiling Medium products. Contact Creation Networks for current warranty terms and commercial AV support.
