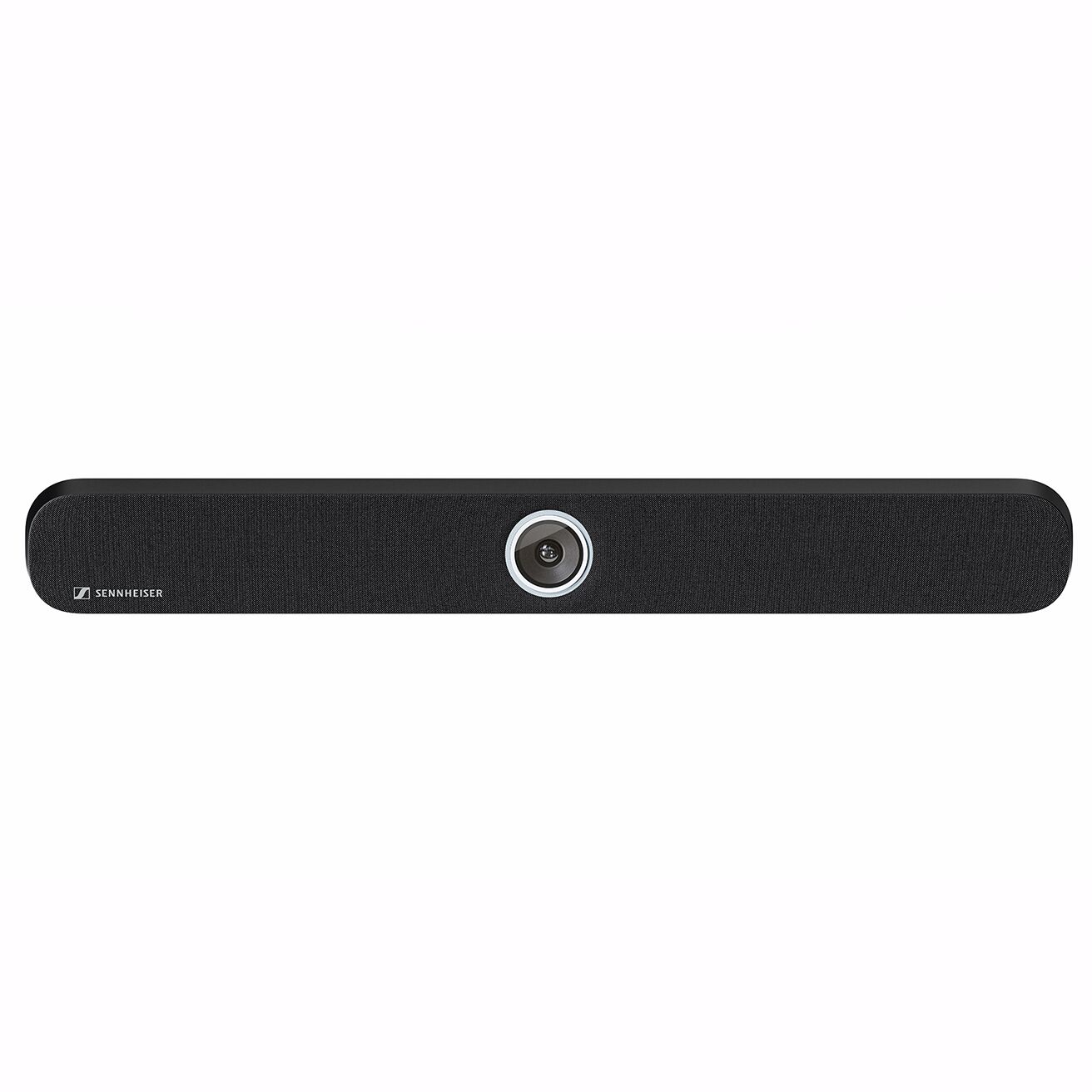

Sennheiser TC Bar M – All-in-One Video Conferencing Bar - 700111

Product Overview

The Sennheiser TC Bar M is an all-in-one video conferencing bar built for mid-sized meeting rooms and collaboration spaces that need dependable audio and video from a single device. It integrates a 4K Ultra HD camera, a six-microphone beamforming array, and four broadband speakers, and is certified for Microsoft Teams and Zoom. Native Dante audio and dual HDMI connectivity let this Microsoft Teams certified conferencing bar drop into both software-based and integrated AV systems. It is engineered for AV integrators standardizing conference room video bar deployments across multiple sites.

Product Description

The TC Bar M consolidates camera, microphones, and speakers into one rack-adjacent device, reducing cabling and simplifying deployment in mid-sized conference rooms. Its 4K camera provides a 120° diagonal field of view with Person Tiling and up to 5x digital zoom, framing every participant without a separate PTZ camera. The six-microphone MEMS beamforming array captures speech across the room, while four 50 mm broadband speakers with passive radiators deliver 84 dB SPL for clear, intelligible playback. Two RJ45 ports handle control and Dante audio independently, so integrators can route audio to a networked DSP or matrix while keeping device management on a separate VLAN.

Dual HDMI inputs, USB-C, and USB-A support both BYOD and room-PC configurations, and the bar is certified for third-party control platforms including Crestron, Extron, Q-SYS, and Barco. Encrypted control communication and password protection are enabled by default, addressing IT and security requirements for enterprise commercial deployment. Wi-Fi and Bluetooth 5.1 simplify setup and wireless content sharing. The supplied mounting bracket and drilling template support wall, tabletop, or display mounting, making the TC Bar M a flexible commercial-grade choice for hybrid meeting spaces and training rooms.

Key Features

• All-in-One Design — Combines a 4K camera, six-microphone array, and four-speaker system in one device to reduce installation time and room clutter.
• 4K Camera with Person Tiling — A 120° diagonal field of view and up to 5x digital zoom frame each participant individually for balanced hybrid meetings.
• Beamforming Microphone Array — Six MEMS microphones track active talkers across a mid-sized conference room for consistent voice pickup.
• Native Dante Audio — A dedicated RJ45 Dante port routes audio into networked DSP and matrix systems for larger AV designs.
• Dual HDMI and USB Connectivity — Two HDMI inputs plus USB-C and USB-A support room PCs, BYOD, and displays without added adapters.
• Platform and Control Certification — Certified for Microsoft Teams and Zoom and approved for Crestron, Extron, Q-SYS, and Barco control systems.
• Security by Default — Encrypted control communication and default password protection meet enterprise IT deployment policies.
• Flexible Mounting — Included bracket and drilling template support wall, tabletop, and display installation.

Typical Applications

• Mid-Sized Conference Room — Primary use case, delivering full-room camera and microphone coverage from a single bar.
• Commercial Meeting Space — Standardized, certified hardware for repeatable enterprise room builds.
• Training Room — Person Tiling and wide field of view keep remote trainees engaged with in-room participants.
• Multi-Purpose Room — Flexible mounting and BYOD support adapt to rooms with changing configurations.
• Boardroom — Dante audio integration supports boardrooms tied into larger networked AV systems.

Technical Specifications

In the box: (1) TC Bar M, (1) mounting bracket + drilling template, (1) power supply unit, (1) RC TC Bar remote control, (1) bracket and storage, (1) magnetic lens cap, (1) HDMI cable, screws, (2) AAA batteries, (1) USB-C 3.1 cable, (1) manual.

Frequently Asked Questions

Which conferencing platforms is the TC Bar M certified for?
The TC Bar M is certified for Microsoft Teams and Zoom, and is approved for third-party control platforms including Crestron, Extron, Q-SYS, and Barco.

Does it support Dante audio for integrated AV systems?
Yes. A dedicated RJ45 port carries Dante audio independently of the control port, allowing audio to be routed to networked DSPs and matrix systems.

What room size is the TC Bar M designed for?
It is designed for mid-sized meeting rooms and collaboration spaces. For smaller huddle spaces, the TC Bar S is the comparable option.

How is the device mounted?
An included bracket and drilling template support wall, tabletop, and display mounting. A Bar M mounting kit and VESA mount kit are available for additional configurations.

What security features are included for enterprise IT?
Encrypted control communication and password protection are enabled by default to meet enterprise network and security requirements.

What is the warranty?
Sennheiser provides a manufacturer's warranty on the TeamConnect Bar series. Contact Creation Networks for current warranty terms and commercial support options.
