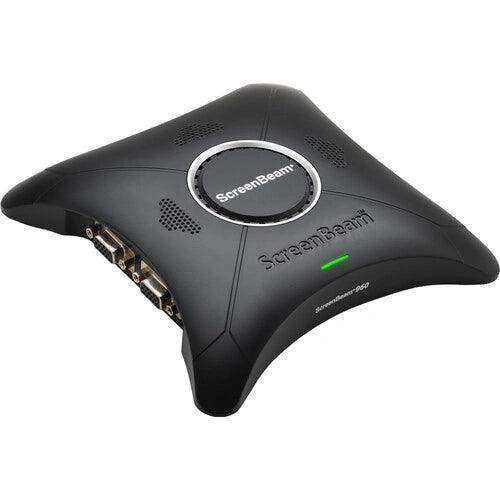

ScreenBeam 960 1080p Wireless Display Receiver

Product Overview

The ScreenBeam 960 is a commercial-grade 1080p wireless display receiver designed for small business conference rooms, huddle spaces, and small meeting rooms where a cost-effective wireless presentation solution is needed. It delivers app-free wireless screen mirroring from Windows, macOS, iOS, Android, and Chrome OS using native Miracast and network-based wireless display protocols—no dongle, client software, or HDMI cable required. Extended desktop mode allows presenters to keep private content on their device while sharing selected content on the room display. The included CMS Enterprise software enables IT administrators to centrally monitor and manage all ScreenBeam 960 receivers across a deployment.

Product Description

The ScreenBeam 960 targets the most common commercial deployment scenario: a small conference room or huddle space where users need to present wirelessly without dealing with cables, adapters, or proprietary apps. At 1080p resolution, it covers the display requirements of most commercial projectors and flat panels in small-to-medium meeting spaces.

Connectivity options include Miracast P2P for direct Windows and Android device connections, and network-based wireless display for Windows 7 and later, macOS 10 and later, iOS 11 and later, and Chrome OS. The 960 supports 802.11ac dual-band Wi-Fi for Miracast P2P connections and 802.11a/b/g/n dual-band for infrastructure-based connections, giving IT flexibility in how the unit is deployed on the network.

Extended desktop mode maintains the presenter's device for private use—checking notes, handling incoming messages, or navigating—while a separate view is shown on the room display. Windows Ink annotation is supported on connected touch displays, capturing markups from the room screen back to the presenter's device in Office 365 applications. HDMI, VGA, and VGA pass-through outputs provide connectivity options to a variety of display types, while the 3.5mm analog audio output connects directly to room speakers. The included CMS Enterprise software provides remote monitoring, firmware management, and security policy configuration for IT teams managing multi-room deployments.

Key Features

• App-Free Wireless Presentation — Native Miracast P2P for Windows and Android; network-based wireless display for Windows 7+, macOS 10+, iOS 11+, and Chrome OS—no client app installation needed.
• 1080p Resolution at 30 fps — Delivers clear 1080p output suitable for commercial projectors and flat panel displays in small-to-medium meeting rooms.
• Extended Desktop Mode — Presenters can extend their desktop to the room display while keeping private content on their own screen, maintaining device use during a presentation.
• Windows Ink Annotation — Wireless touchback enables Windows Ink annotation on connected interactive touch displays, with changes captured on the presenter's device in Microsoft Office 365.

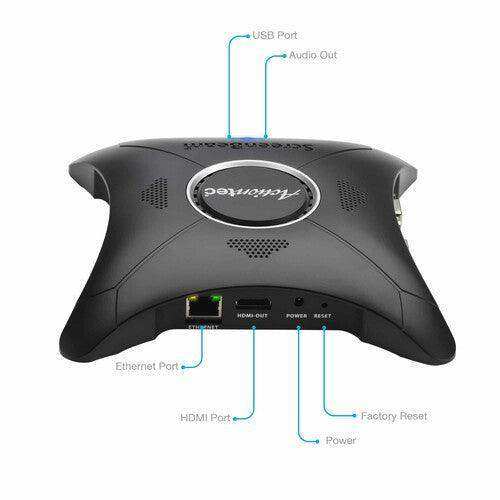

• Multi-Port Display Connectivity — Includes HDMI output, VGA output, and VGA input (pass-through) for connection to a wide range of commercial projectors, flat panels, and control systems.
• 3.5mm Analog Audio Output — Connects directly to room speakers or amplifiers without requiring a separate audio extractor.
• Dual-Band Wi-Fi — 802.11ac dual-band for Miracast P2P and 802.11a/b/g/n dual-band for infrastructure connections support flexible network deployment scenarios.
• CMS Enterprise Management (Included) — Central management platform for remote monitoring, firmware updates, security policy enforcement, and device configuration across all receivers.
• WPA2 Enterprise Security — Supports WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2, and EAP-TLS for enterprise network authentication.
• Low Power, Compact Form Factor — Under 5 W power consumption in a 6.61 × 6.61 in footprint—suitable for installation behind displays or in small AV enclosures.
