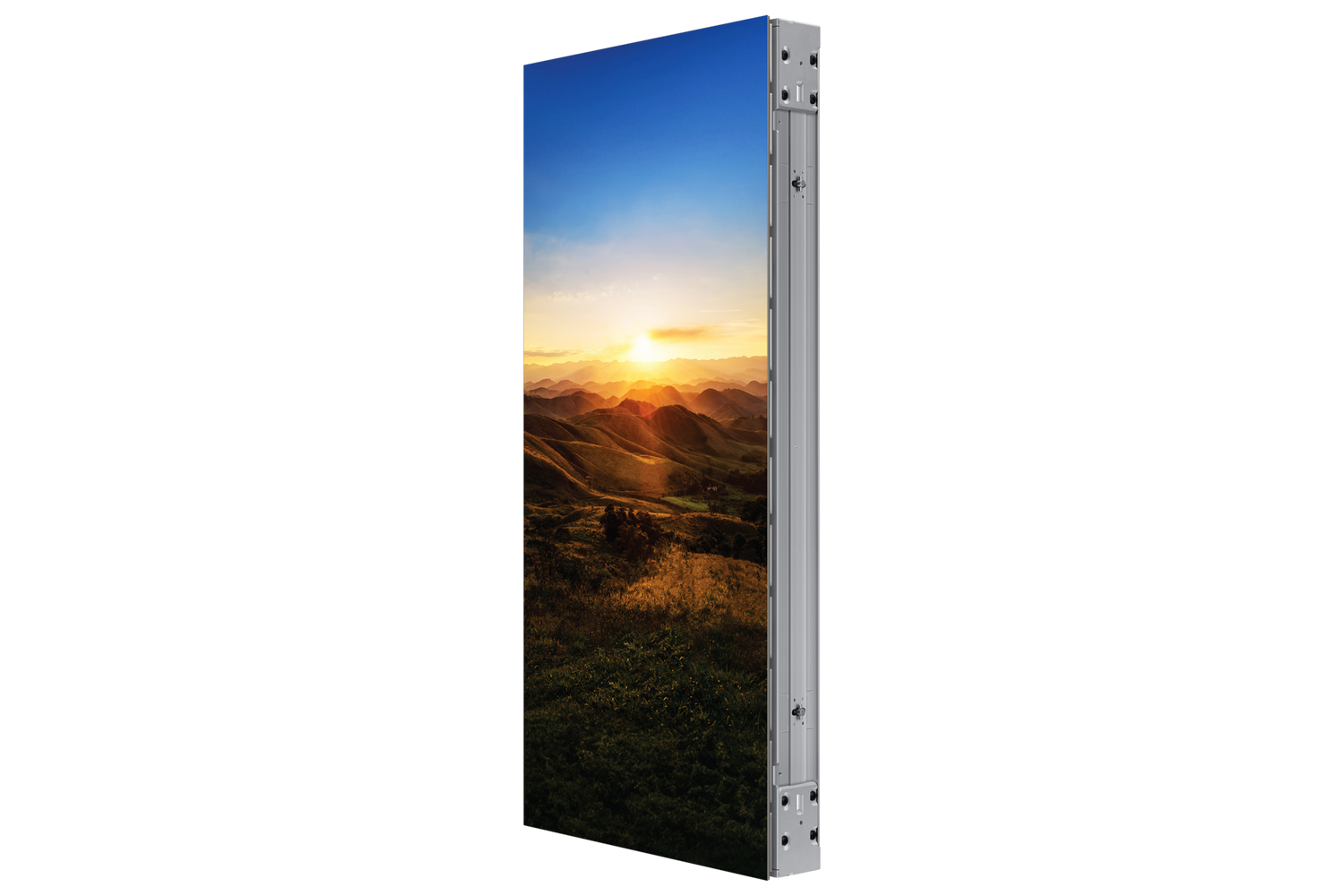

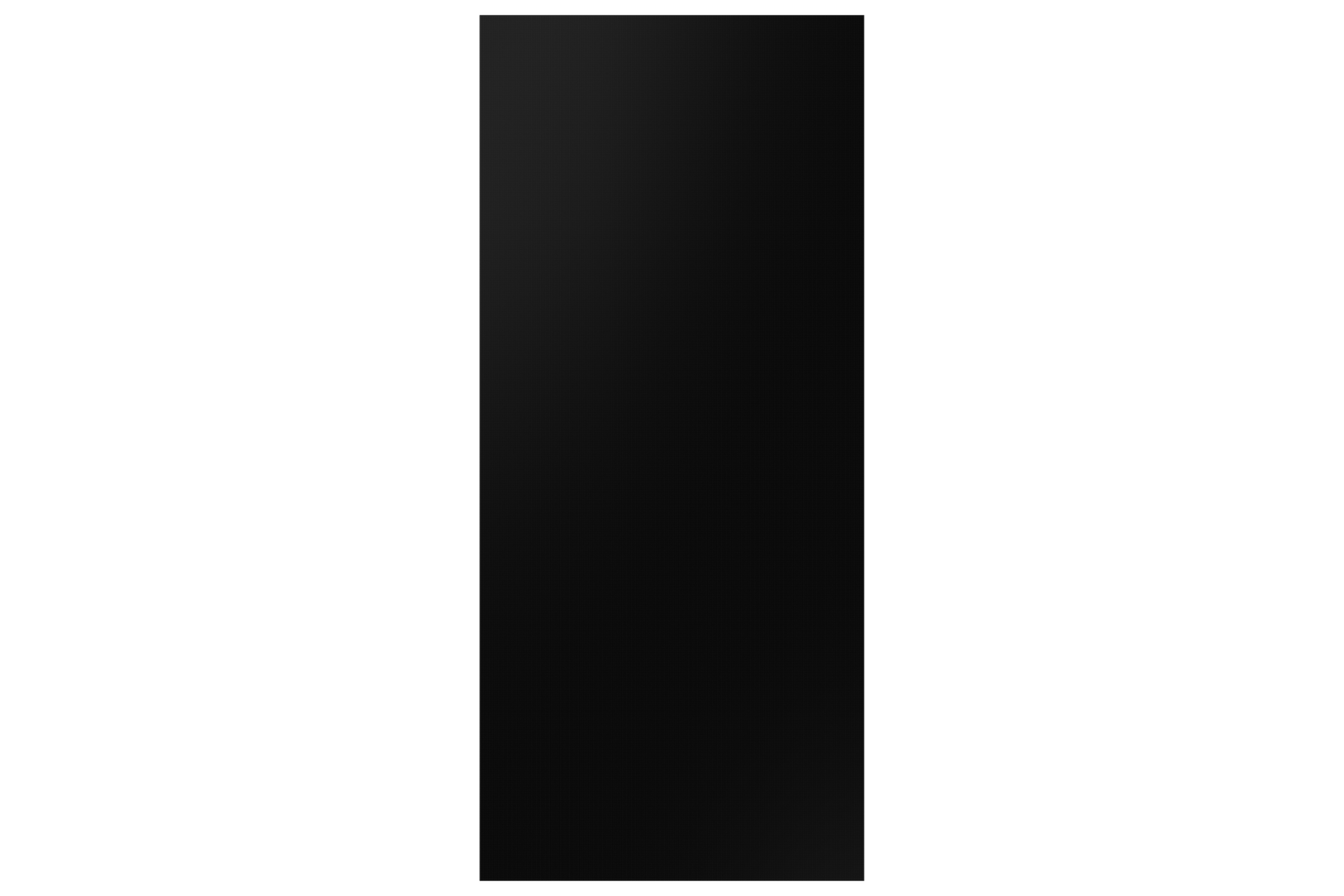

Samsung VP Model IV016C – Virtual Production LED Panel P1.6

Product Overview

The Samsung IV016C is a P1.6 virtual production LED panel from the VP series, engineered for demanding in-camera visual effects (ICVFX) and XR broadcast applications where the finest pixel pitch in Samsung's virtual production lineup is required. At 1.6mm pitch, it delivers higher on-camera resolution than the P2.1 IV021C, making it the appropriate choice for productions with tighter camera-to-panel distances, higher resolution camera systems, or stringent requirements for background sharpness and detail in captured footage. Like the IV021C, it is offered at a meaningful discount from list price.

Product Description

The IV016C operates at 1.6mm pixel pitch, which represents the finer end of Samsung's VP series panel range. The practical implication for virtual production is that the panel can be placed closer to the camera, or used with higher resolution camera systems, without the background image breaking down into visible pixel structure in the captured footage. This is especially relevant for productions using large-format cinema cameras, high-frame-rate capture, or configurations where the camera must operate at shorter distances from the LED volume due to stage size constraints. As with all VP series panels, the IV016C is built around camera performance requirements rather than human visual comfort, incorporating high refresh rates that prevent scan line artifacts across standard film and broadcast frame rates and shutter angle ranges. Brightness control is precise and calibrated to support accurate exposure matching between the LED background environment and the live subjects positioned in front of it, which is a core requirement for achieving realistic composited imagery in ICVFX workflows. Color management on the IV016C supports the wide gamuts and high bit-depth processing required for modern color grading pipelines, ensuring that the LED environment can reproduce reference color charts, sky gradients, and location environments with sufficient accuracy for production standards. The panel is designed for rapid stage reconfiguration, with modular construction and mounting hardware optimized for the frequent setup and breakdown cycles common on active LED volume stages. Integration with professional LED processors from Brompton, Megapixel VR, and other broadcast-standard platforms is supported. The product is sold per panel and requires compatible LED processing, signal distribution, and structural mounting systems for a complete installation.

Key Features

• P1.6 Pixel Pitch — Finer pitch than the IV021C, supporting closer camera distances and higher resolution capture without visible pixel structure.
• High Refresh Rate — Eliminates scan line and banding artifacts across film and broadcast frame rates and shutter angles.
• Wide Color Gamut with High Bit-Depth — Accurate color reproduction for demanding ICVFX and color grading workflows.
• Camera-Facing Optimization — Engineered for camera sensor performance, not just human visual comfort.
• Rapid Stage Reconfiguration — Modular design and mounting hardware support fast LED volume setup and breakdown.
• Broadcast Processor Integration — Compatible with Brompton, Megapixel VR, and other professional LED processing systems.
• Precise Brightness Control — Supports accurate exposure matching between LED background and live subjects.

Typical Applications

• High-end ICVFX film and television stages requiring finer pitch than P2.1
• Large-format cinema camera productions with short stage depths
• High-frame-rate broadcast and streaming productions
• XR studio environments with close camera-to-panel operating distances
• LED ceiling panels in virtual production volumes

Technical Specifications

Frequently Asked Questions

When should I choose the IV016C over the IV021C?

Choose the IV016C when your production involves short camera-to-panel distances, large-format or high-resolution camera systems, high-frame-rate capture, or stringent requirements for background sharpness in the captured image. The extra pixel density of P1.6 reduces the risk of pixel structure appearing in-camera and provides more latitude in camera placement within constrained stage dimensions. The IV021C at P2.1 is appropriate for most standard ICVFX applications and is more cost-effective for larger volume installations.

Is the IV016C compatible with LED ceiling panels in a virtual production volume?

Yes. VP series panels including the IV016C are designed to be used in ceiling, wall, and floor configurations within LED volumes. Ceiling applications have specific structural and thermal requirements; confirm your ceiling mounting structure and panel orientation specifications with your stage design team and Samsung's VP specialist team before finalizing the system design.

What LED processor does Samsung recommend for the IV016C?

Samsung VP series panels are compatible with professional LED processors from Brompton Technology, Megapixel VR, and other broadcast-standard platforms. The specific processor recommendation depends on the total panel count, desired output resolution, and HDR or color science requirements of your production workflow. Consult your virtual production technical director and LED processor supplier for system-level guidance.
