Samsung VM55B-U - Ultra Narrow Bezel LCD Video Wall for Business

Product Overview

The Samsung VM55B-U is a 55-inch ultra-narrow-bezel LCD video wall panel built for control rooms, lobbies, and retail environments that need a tiled, large-format canvas. With a 0.44 mm bezel-to-bezel gap and an IPS-type panel, this 55-inch ultra-narrow-bezel video wall display delivers a near-continuous image across multi-screen arrays. AV integrators specifying LCD video wall panels for commercial deployment gain 500-nit brightness, 24/7 operation, and daisy-chain video and control. RS-232C loop-through and an IP5X dust rating simplify large-scale commercial AV integration.

Product Description

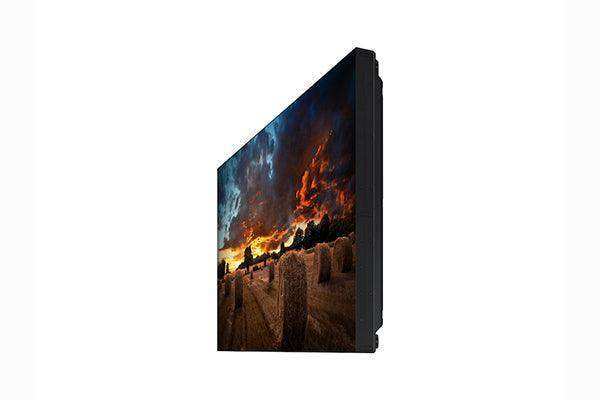

The VM55B-U uses a 55-inch IPS-type LCD panel at Full HD 1920 x 1080 with a slim 2.75-inch cabinet depth and a 0.44 mm combined bezel, producing tight seams across tiled arrays. As shown in the product imagery, the anti-glare matte surface evenly distributes light to keep content legible in bright lobbies, control rooms, and retail floors. A 500-nit sustained brightness, 1200:1 static contrast, and 178 x 178-degree viewing angles maintain visibility from off-axis positions across the wall. The panel supports configurations up to a 10 x 10 array, with DisplayPort 1.2 loop-out and RS-232C input/output for daisy-chained video and centralized control. Connectivity includes two HDMI 2.0 inputs, DisplayPort 1.2, DVI-D, and HDCP support, giving integrators flexible source options for digital signage and data visualization. Rated for 24/7 operation with an IP5X dust rating, the VM55B-U deploys in portrait or landscape without a separate dust-resistant cabinet. The optional Samsung UHD Signage Player box and WMN-55VD stand (sold separately) extend the deployment. For larger or higher-resolution walls, integrators can compare options in the Samsung collection at Creation Networks.

Key Features

• Ultra-Narrow 0.44 mm Bezel — The slim bezel-to-bezel gap produces tight seams across tiled arrays for a near-continuous video wall image.
• 500-nit IPS-Type Panel — A 500-nit sustained brightness IPS-type panel keeps content visible in bright lobbies, control rooms, and retail spaces.
• Daisy-Chain Video and Control — DisplayPort 1.2 loop-out and RS-232C input/output allow video and control signals to chain across panels in the array.
• Up to 10 x 10 Array — The panel supports configurations up to a 100-display 10 x 10 video wall for large-scale deployments.
• 24/7 Operation — The display is rated for continuous duty, making it suitable for always-on signage and control-room use.
• IP5X Dust Resistance — The dust-resistant rating allows deployment without a separate dust-resistant cabinet in many environments.
• Wide 178-Degree Viewing Angles — 178 x 178-degree viewing angles keep content clear for viewers positioned off-axis from the wall.
• Flexible Source Inputs — Two HDMI 2.0 inputs, DisplayPort 1.2, and DVI-D with HDCP give integrators multiple source connection options.

Typical Applications

• Control room and command-center video walls
• Lobby and commercial meeting space digital signage
• Broadcast studio backdrops and data visualization
• Auditorium and all-hands room large-format display

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How large a video wall can the VM55B-U build?

The panel supports configurations up to a 10 x 10 array (100 displays), with DisplayPort 1.2 loop-out and RS-232C control chaining across the wall for large-scale deployments.

What is the bezel gap between tiled panels?

The combined bezel-to-bezel gap is 0.44 mm, producing tight seams for a near-continuous image across the array. This narrow gap is well suited to data visualization and signage where image continuity matters.

Does it require an external media player?

The VM55B-U accepts standard HDMI, DisplayPort, and DVI-D sources. For onboard playback, pair it with the optional Samsung UHD Signage Player box (sold separately) or feed it from a video wall processor.

Can it be mounted in portrait orientation?

Yes. The panel supports both landscape and portrait orientation and is rated for 24/7 operation with an IP5X dust rating for flexible installation.

How is the wall controlled and integrated?

RS-232C input/output and IR loop-through allow centralized control across chained panels, and the RJ45 port supports network management. Contact Creation Networks for video wall design, mounting, and AV integration support.
