Samsung The Wall Professional IW008J-R – P0.8 Remote Power 960x540

Product Overview

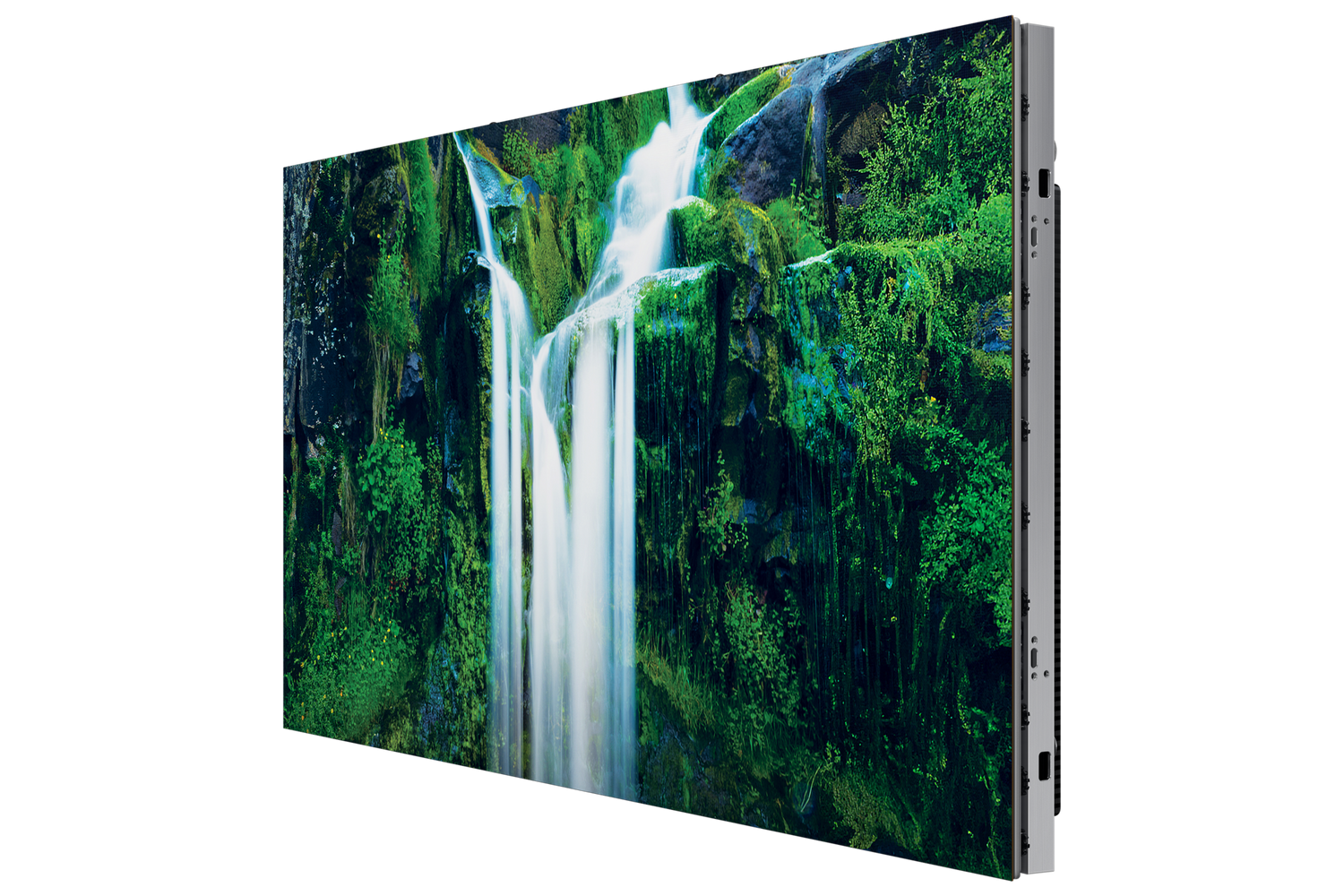

The Samsung IW008J-R is the Professional variant of The Wall series with P0.8 pixel pitch and remote power supply option, configured at 960x540 pixels per cabinet. The remote power architecture separates the power supply unit from the display cabinet, which reduces heat buildup at the display face, decreases cabinet depth, and simplifies electrical infrastructure planning for large installations. Designed for demanding professional environments including broadcast facilities, premium corporate installations, and high-uptime control rooms, the IW008J-R delivers The Wall's signature image quality with the added reliability benefits of a distributed power system. It is currently offered below list price.

Product Description

The IW008J-R distinguishes itself from the standard IW008A through its remote power supply configuration. In conventional LED cabinets, the power supply is integrated within the cabinet body, which generates heat close to the LED modules and limits cabinet depth reduction. The remote power option relocates the power supply to a separate rackmount unit connected via low-voltage cabling, which meaningfully reduces thermal load at the display surface, extends LED lifespan, and allows for a thinner cabinet profile that suits flush-wall installation designs. This architecture is particularly advantageous in broadcast and mission-critical environments where sustained operation at high brightness is required over long periods. At 0.8mm pixel pitch, the IW008J-R provides ultra-fine resolution appropriate for viewing distances starting around 1 meter, making it suitable for any application where viewers are close to the display surface. The 960x540 cabinet format provides a clean building block for 16:9 display arrays, and the display supports full DCI-P3 color gamut coverage for color-accurate content reproduction. Front serviceability allows LED module replacement from the display face, maintaining the installation integrity without rear access. The Professional designation also includes enhanced factory calibration and quality control compared to the standard IW008A, supporting higher uniformity standards across large display arrays. MagicINFO integration provides centralized content management and real-time health monitoring.

Key Features

• Remote Power Supply Option — External PSU reduces display cabinet heat load, enables thinner cabinet profile, and improves long-term LED reliability.
• P0.8 Pixel Pitch — Ultra-fine pitch for minimum viewing distances around 1 meter in premium close-view environments.
• 960x540 Cabinet Format — HD-quarter resolution module simplifies 16:9 display array planning and content mapping.
• Professional Grade Calibration — Enhanced factory uniformity standards for consistent color and brightness across large installations.
• Black Face LED Technology — Superior contrast performance in ambient lit environments.
• DCI-P3 Color Gamut — Broadcast and production-grade color accuracy.
• Front Serviceability — LED module access from the display face without rear clearance.
• MagicINFO Integration — Samsung enterprise content management and remote diagnostics platform.

Typical Applications

• Broadcast studio video walls and anchor backdrops requiring sustained high-brightness operation
• Mission-critical control rooms and network operations centers
• Premium corporate briefing centers with flush-wall installation requirements
• High-end hotel and hospitality feature walls with concealed infrastructure
• Financial trading floors requiring long operational hours at full brightness

Technical Specifications

Frequently Asked Questions

What are the practical advantages of the remote power supply in the IW008J-R?

The remote power supply removes the heat-generating PSU from the display cabinet. This lowers the operating temperature at the LED modules, which extends component lifespan and reduces fan noise if active cooling is used. It also allows for a thinner cabinet footprint, which benefits flush-wall architectural installations. The PSU is typically rack-mounted in a nearby equipment room, connected to the cabinets via power cabling.

Is the IW008J-R significantly better in image quality than the standard IW008A?

Both operate at 0.8mm pixel pitch with the same LED technology. The primary differentiation is in the power architecture and the Professional grade factory calibration, which targets tighter uniformity tolerances. For image quality-sensitive applications like broadcast, the IW008J-R's enhanced calibration provides more consistent results across large display arrays.

What rack space and power infrastructure does the remote PSU require?

The remote power supply unit specifications, including rack unit height, power draw, and cabling requirements, are detailed in the Samsung IW008J-R installation guide. Coordinate with your electrical contractor and AV infrastructure team to ensure adequate rack space, circuit capacity, and cable pathways before specifying this product.
