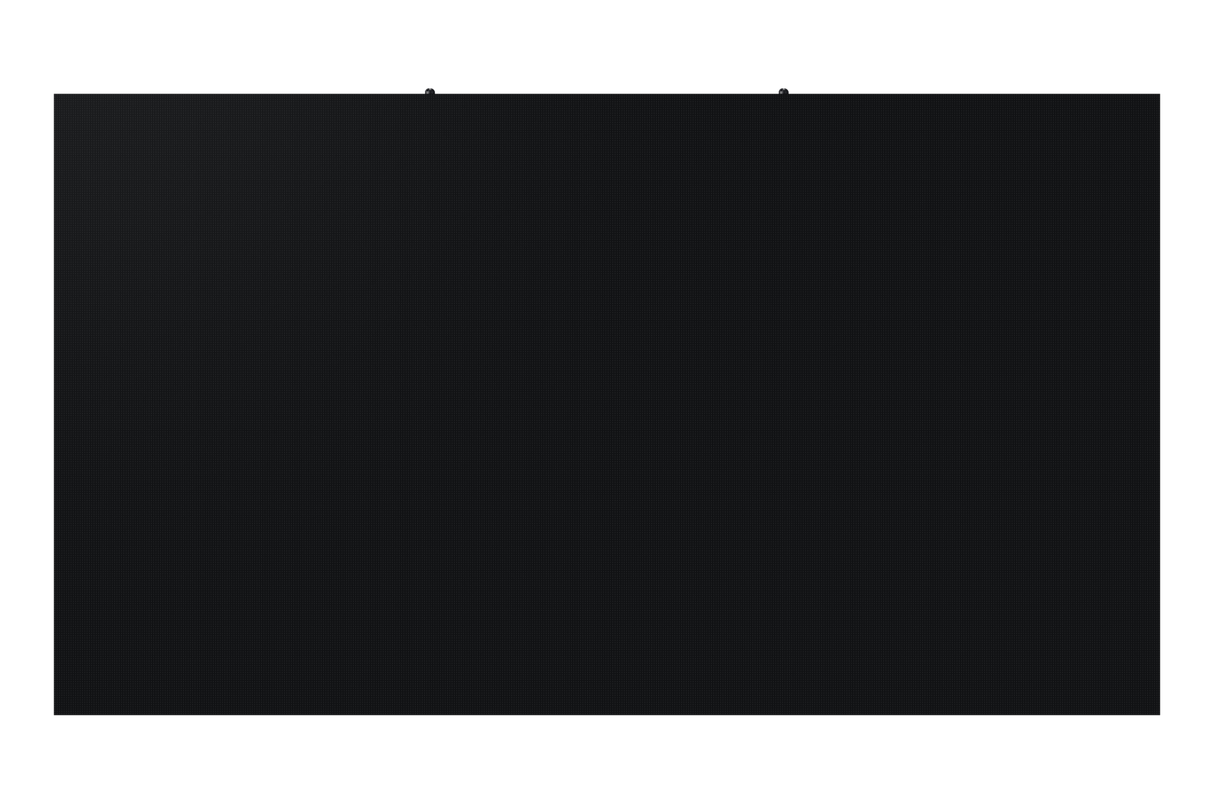

Samsung The Wall IW008A – P0.8 Indoor LED Display 960x540

Product Overview

The Samsung IW008A is a P0.8 ultra-fine pitch indoor direct view LED display configured at 960x540 pixels per cabinet section, representing one of the highest pixel densities available in Samsung's The Wall product line. Designed for installations requiring exceptional image clarity at close viewing distances, this display is appropriate for premium corporate environments, broadcast studios, and command centers where visual detail is critical. The sub-1mm pixel pitch places it alongside high-resolution LCD in terms of perceived sharpness, but with the brightness, modular scalability, and contrast advantages of direct view LED. It is currently offered at a substantial discount from list price.

Product Description

With a 0.8mm pixel pitch, the IW008A produces one of the finest pixel densities in the commercial LED display market, enabling comfortable viewing from distances as close as 1 meter. This level of resolution is appropriate for data-intensive applications where text legibility, fine graphical detail, and color accuracy are primary requirements. The 960x540 module format provides a standardized building block for constructing larger display arrays at precise aspect ratios including 16:9, which simplifies content mapping and signal distribution planning. Like all The Wall products, the IW008A uses Samsung's Black Face LED technology to achieve high contrast ratios in lit room conditions, reducing the need for ambient light control that older LED technology required. The display is front-serviceable, meaning LED modules can be replaced without removing the installation from the wall, which is critical in environments where downtime must be minimized. Color performance covers the DCI-P3 color space, supporting accurate reproduction of branded content, broadcast graphics, and cinematic material. Integration with MagicINFO enables centralized content scheduling and remote health monitoring across large multi-display deployments. The product is modular and scalable, allowing integrators to build display configurations from small feature walls to full-room immersive environments. Cabinet alignment is handled through precision mechanical connectors, maintaining the zero-bezel appearance essential to The Wall's visual design.

Key Features

• P0.8 Pixel Pitch — Ultra-fine pitch for viewing distances from approximately 1 meter, suitable for premium close-view applications.
• 960x540 Cabinet Format — Standard HD-quarter resolution module simplifies aspect ratio and content mapping for 16:9 display arrays.
• Black Face LED Technology — High contrast performance in ambient lit environments without room darkening.
• DCI-P3 Color Gamut — Broadcast and production-grade color accuracy across the full display surface.
• Front Serviceability — LED modules replaceable from the front face, minimizing installation downtime.
• Zero-Bezel Modular Design — Cabinets tile precisely to create large-format displays with no visible seams.
• MagicINFO Ready — Compatible with Samsung's enterprise content management and remote monitoring platform.

Typical Applications

• Premium corporate boardrooms and executive briefing centers
• Broadcast studio video walls and anchor backdrops
• Control rooms and security monitoring environments
• High-end hotel lobbies and hospitality feature installations
• Financial trading floors and data visualization environments

Technical Specifications

Frequently Asked Questions

How does the IW008A compare to the IW009B in terms of image quality?

The IW008A has a slightly finer pixel pitch (0.8mm vs 0.9mm), which means marginally higher pixel density and a slightly closer minimum viewing distance. In practice, for most installation scenarios the difference in perceived sharpness is minimal. The IW008A may be preferable for applications with extremely demanding close-view requirements or for configurations where the 960x540 cabinet resolution format better suits the target display resolution.

What content resolution is required for a full 4K IW008A installation?

A 4K (3840x2160) display built from 960x540 cabinets requires a 4x4 grid of 16 cabinets. Your LED video processor must support 4K output at the desired frame rate, and your content pipeline should deliver native 4K material to fully utilize the display's pixel count.
